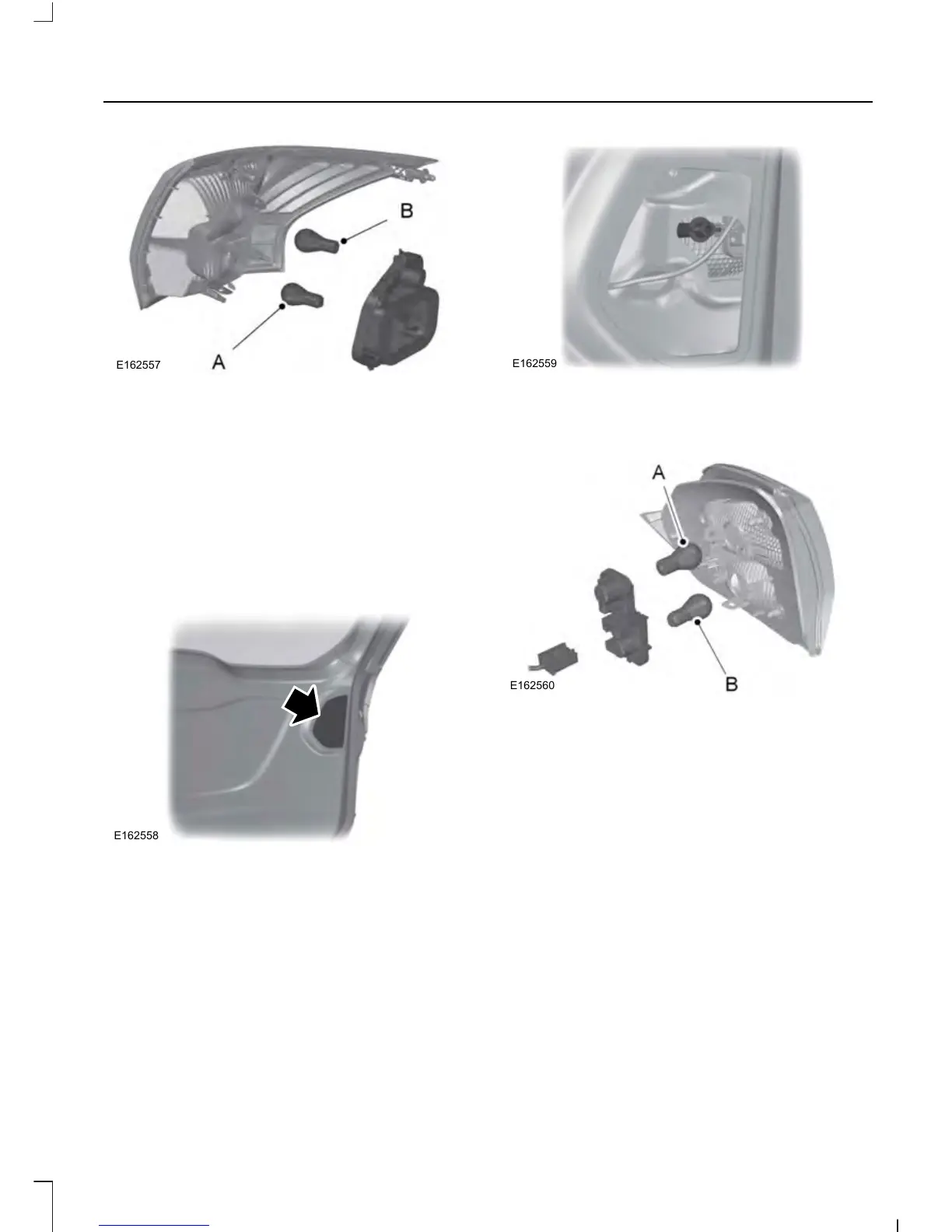

7. Remove the bulb holder.
8. Gently press the bulb into the bulb
holder, then turn the bulb
counterclockwise and remove the bulb.
A. Taillamp and brake lamp. B. Turn
lamp.
Install the new bulb in reverse order.
Replacing Reverse Lamp and Tail
Lamp Bulbs:
1. Make sure the lighting control is in the
off position.
2. Open the liftgate
3. Remove the trim panel cover.
4. Remove the wing nut.
5. Gently pull the lamp assembly away
from the vehicle.
6. Disconnect the electrical connector
7. Remove the bulb holder.
8. Gently press the bulb into the bulb
holder, turn the bulb counterclockwise,
and remove the bulb. A. Reverse lamp.
B. Tail lamp.
9. Install the new bulb in reverse order.
227
C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review
Maintenance
