How does the Safety Canopy姞 system work?
The design and development of the
Safety Canopy威 system included
recommended testing procedures
that were developed by a group of
automotive safety experts known as
the Side Airbag Technical Working
Group. These recommended testing
procedures help reduce the risk of
injuries related to the deployment of
side airbags (including the Safety
Canopy威).

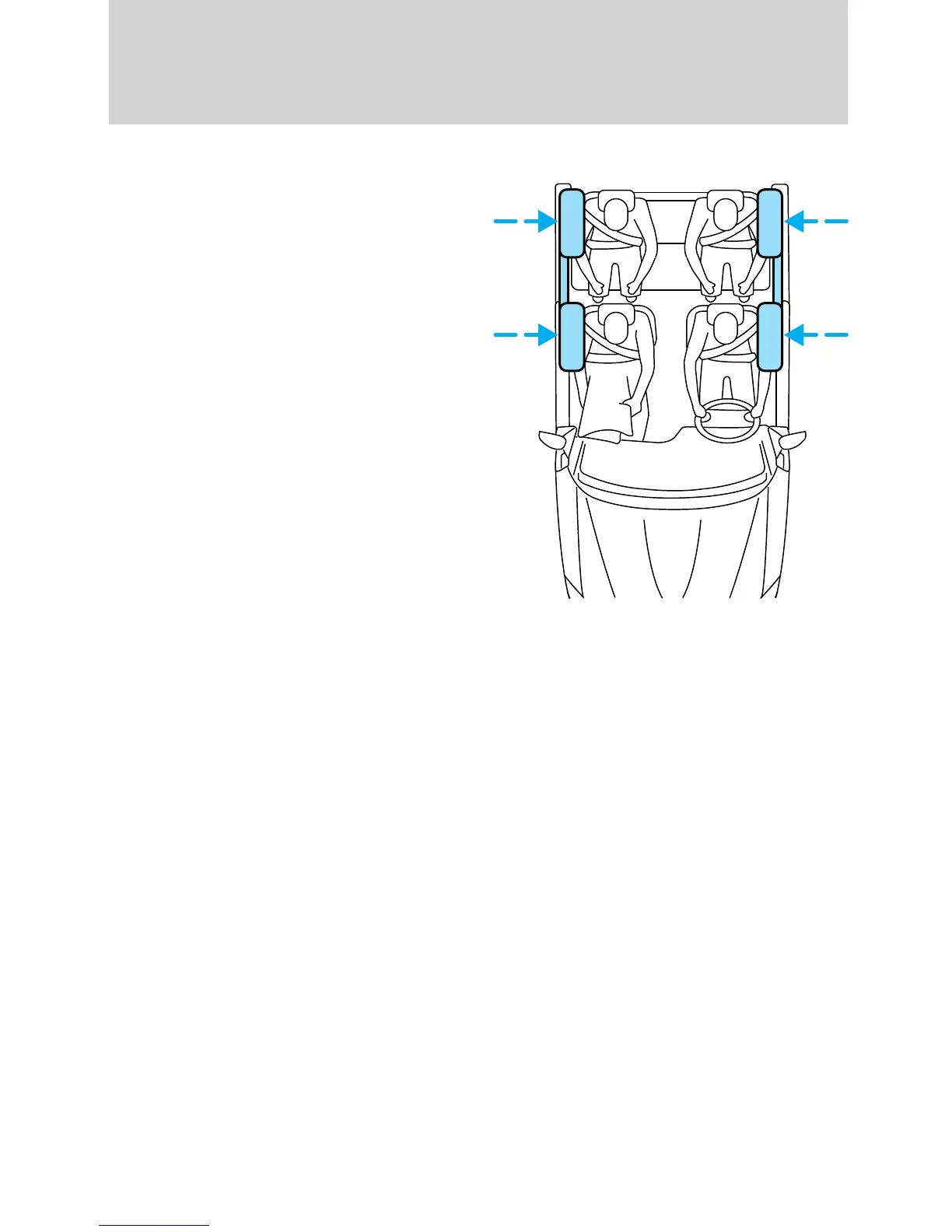

The Safety Canopy威 system consists
of the following:
• An inflatable nylon curtain with
an inflator concealed behind the
headliner and above the doors
(one on each side of the vehicle).
• A headliner that will flex to open
above the side doors to allow Safety Canopy威 deployment.
• The same warning light, electronic control and diagnostic unit as used
for the front airbags.
• Two side crash sensors mounted at the front doors (one on each side
of the vehicle).
• Two side crash sensors located at the c-pillar behind the rear doors
(one on each side of the vehicle).
• Roll over sensor in the restraints control module (RCM).
The Safety Canopy威 system, in combination with safety belts, can help
reduce the risk of severe injuries in the event of a significant side impact
collision or rollover event.
Children 12 years old and under should always be properly restrained in
the second or third row seats (if equipped). The Safety Canopy威 will not
interfere with children restrained using a properly installed child or
booster seat because it is designed to inflate downward from the
headliner above the doors along the side window openings.
Seating and Safety Restraints
217
