MANUAL HEATING AND AIR CONDITIONING SYSTEM

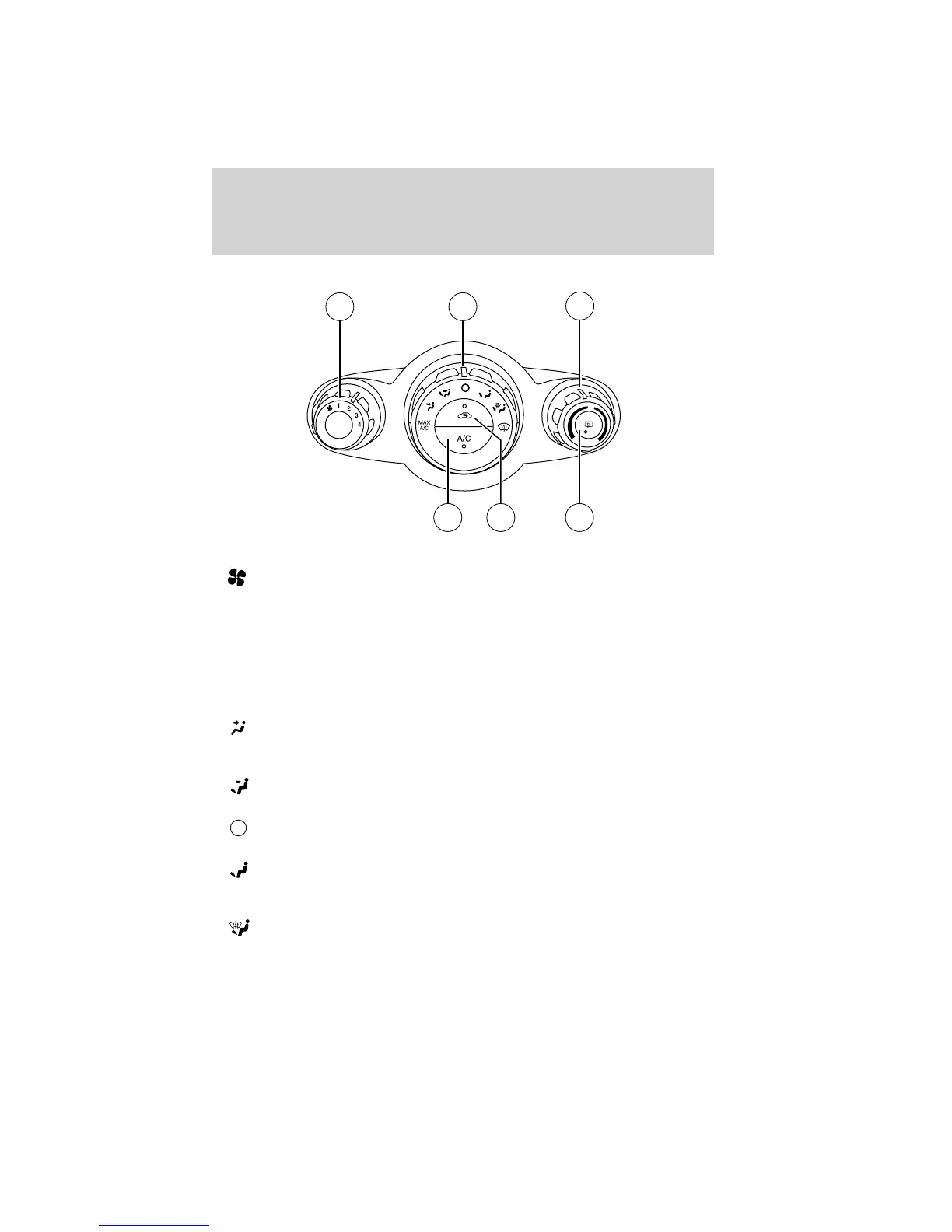

Manual system with A/C shown; heater only system similar.
1.
: Turn to select the desired fan speed.
2. Air flow selections: Controls the direction of the airflow in the
vehicle. See the following for a brief description on each control setting:
MAX A/C (if equipped): Distributes recirculated air through the
instrument panel vents to cool the vehicle. This re-cooling of the
interior air is more economical and efficient than normal A/C mode.
Recirculated air may also help reduce undesirable odors from entering
the vehicle.
: Distributes air through the instrument panel vents. Note: You
may notice a small amount of air flowing from the floor vents and the
rear seat floor vents.
: Distributes air through the instrument panel vents, floor vents
and rear seat floor vents.
: Turns the climate control system off. When the system is off,
outside air is prevented from entering the vehicle.
: Distributes air through the floor vents and rear seat floor vents.
Note: You may notice a small amount of air flowing from the demister
and defroster vents.
: Distributes air through the windshield defroster vents, demisters
vents, floor vents and rear seat floor vents.
