Ford KUGA - Central High Mounted Brake Lamp

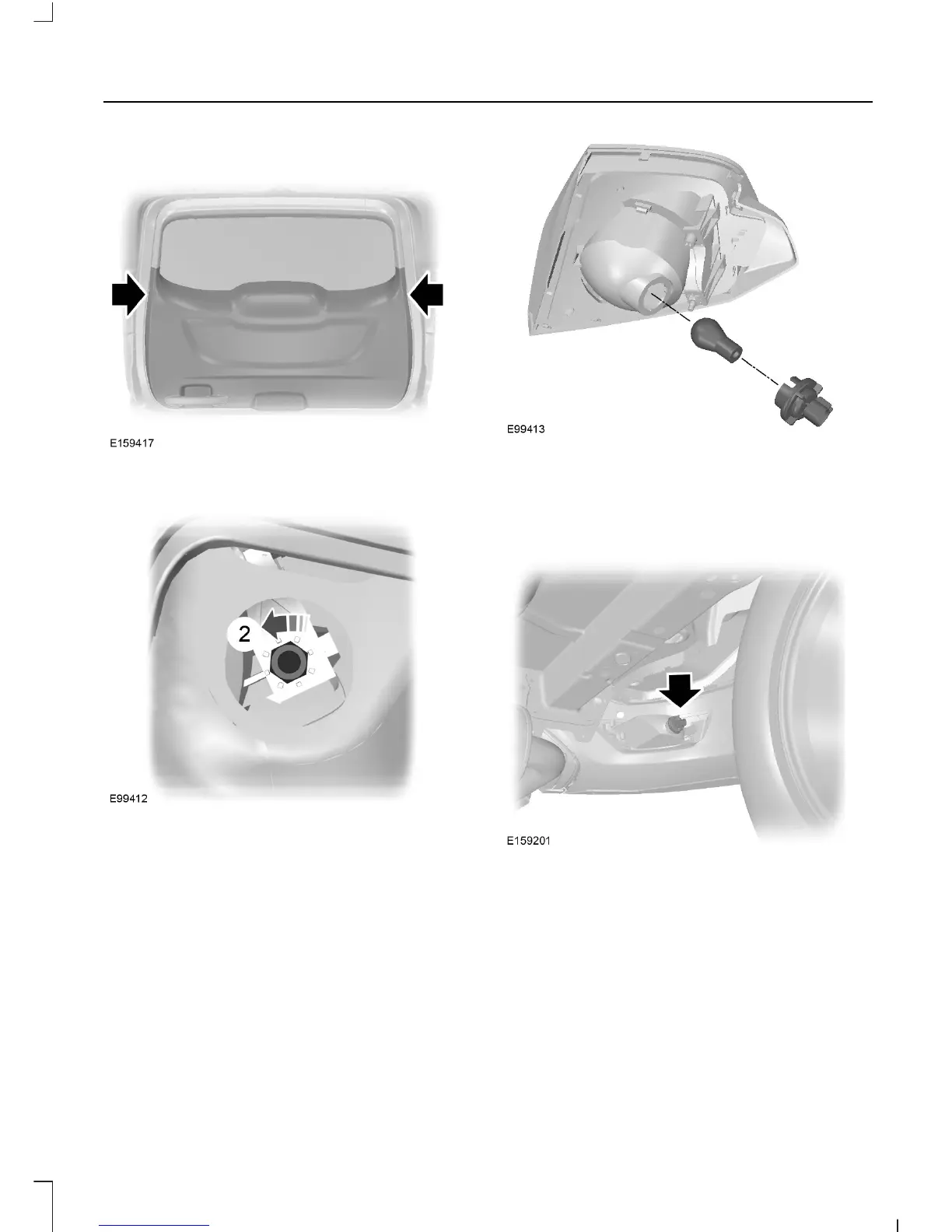

Reversing Lamp
1. Insert a suitable object to pry open the
trim panel.
2. Remove the nut from the lamp
assembly.
3. Gently pull the lamp assembly away
from your vehicle.
4. Gently press the bulb into the bulb
holder, turn it counterclockwise and
remove it.
Rear Fog Lamp
1. Disconnect the electrical connector.
2. Turn the bulb counterclockwise and
pull it straight out to remove it.
Central High Mounted Brake Lamp
These are not serviceable items, see an
authorized dealer if they fail.
195
Kuga (CBS) Vehicles Built From: 10-03-2014, Vehicles Built Up To: 31-12-2014, CG3585en enGBR, Edition date: 02/2014, None
Maintenance
