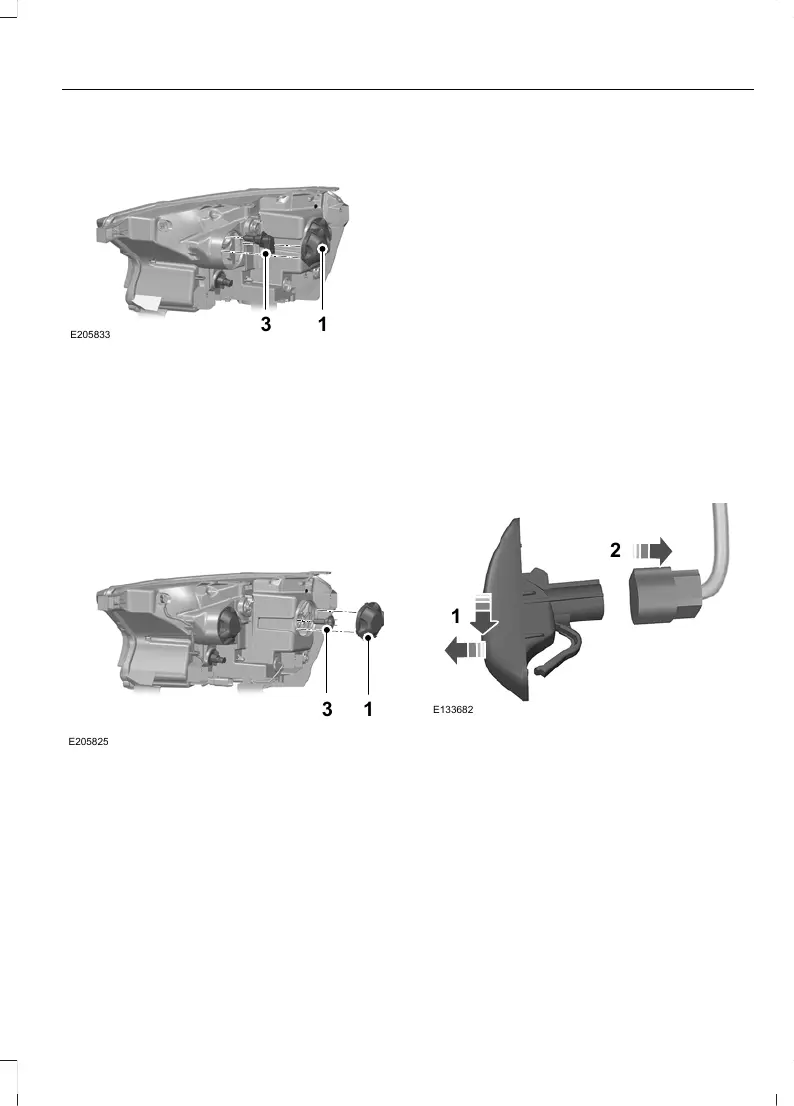

Replacing the High Beam Headlamp
Bulb
13
E205833
1. Carefully remove the cover.
2. Disconnect the electrical connector.
3. Turn the bulb counterclockwise and
remove it.
4. Install the new bulb in reverse order.
Replacing the Low Beam Headlamp
Bulb
1
3
E205825
1. Carefully remove the cover.
2. Disconnect the electrical connector.
3. Remove the bulb from the headlamp
assembly by turning it
counterclockwise and pull it straight
out.
1
4. Release the retainer spring and remove
the bulb from the headlamp assembly
by pulling it straight out.
2
1
- Projector type headlamp assembly.
2
- Reflector type headlamp assembly.
Replacing the Front Parking Bulb
1. Turn the bulb holder counterclockwise
and remove it.
2. Remove the bulb by pulling it straight
out.
3. Install the new bulb in reverse order.
Replacing the Direction Indicator Lamp
Bulb
1. Turn the bulb holder counterclockwise
and remove it.
2. Press the bulb in and turn the bulb
counterclockwise to remove it.
3. Install the new bulb in reverse order.
Side Repeater
1
2
E133682
1. Slide the lens to the rear and remove
it.
2. Disconnect the electrical connector.
241
Ranger (), EB3B-19G219-ZAB enAUS
Maintenance
