— 56 —
Tent Camper Owner’s Manual
initial exterior set Up:
1. Begin with inserting the dolly wheel onto the jack
post (if desired) and locking into place. Disconnect
the safety chains from the tow vehicle and unplug
the electrical connection. Now crank the handle on
the dolly jack and lower the jack post to the ground.
A small wood block can be used to prevent the jack
post or dolly wheel from sinking into the ground.
Now release the coupler latching lever and raise the
coupler free of the hitch ball with the dolly jack.
Move the tow vehicle away from the camper. Level
the camper from front to rear by raising or lower-
ing the dolly jack as required.

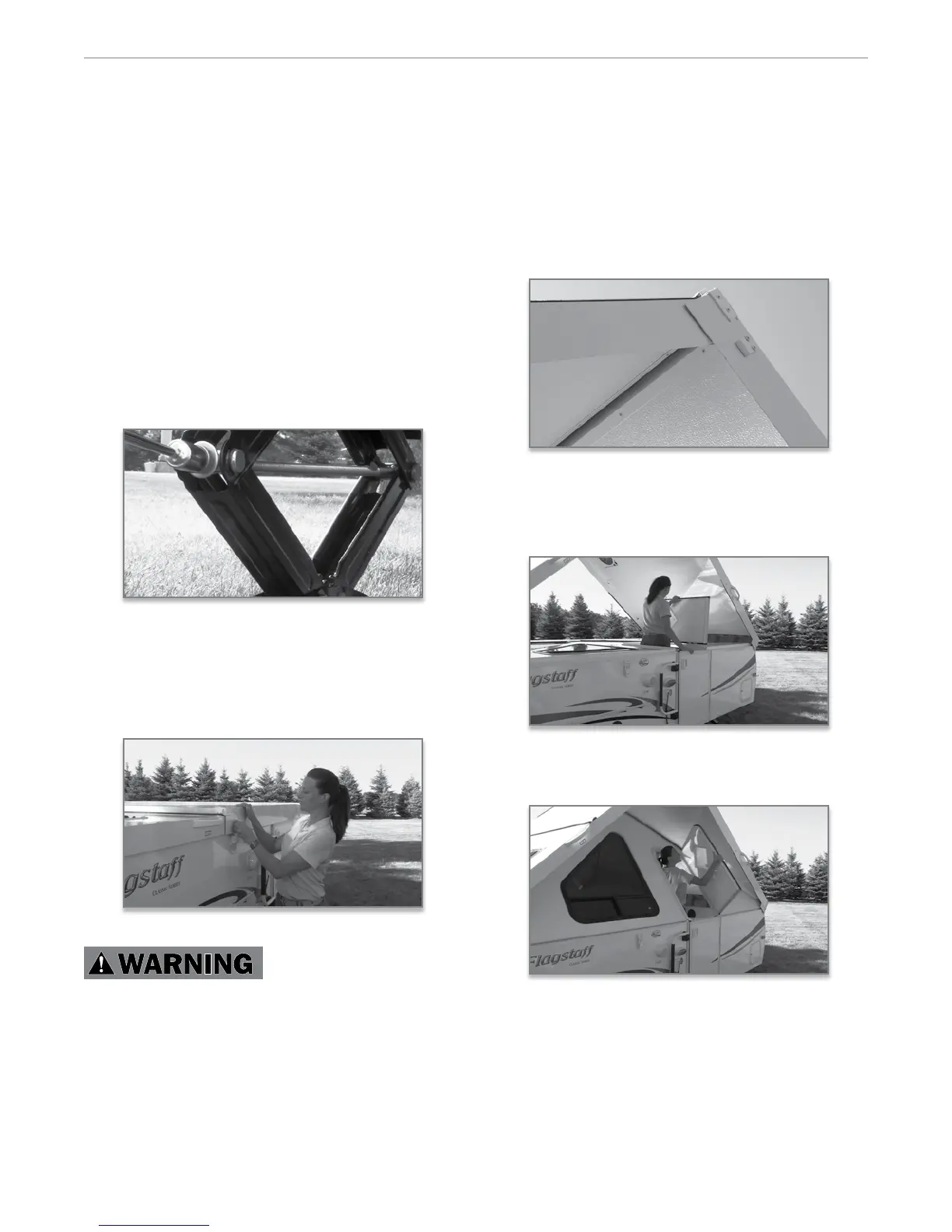

Next, set the stabilizer jacks with sand pads on all
four corners of the camper. Simply crank down
each jack to stabilize the camper.
Note: Keep hands and ngers away from the pinch
points on the stabilizing jacks when extending or
retracting. Be sure to return the jack handle to the
storage compartment to ensure it will not be lost.
Aer all stabilizers are set, release the two latches
that hold the roof secure.
WARNING: THE STABILIZING JACKS ARE FOR
SUPPORT ONLY AND ARE NOT INTENDED
AS A MEANS OF LEVELING THE CAMPER.
ATTEMPTING TO USE THE JACKS AS LEVELING
TOOLS MAY RESULT IN DAMAGE TO THE
LIFTER SYSTEM.
2. AT THIS TIME, REFER TO THE OPTIONAL
AFRAME AW NING/SCREEN ROOM SET UP
INSTRUCTIONS AT THE END OF THIS SEC
TION, IF YOU PURCHASED THIS OPTION.
3. It’s now time to raise the roof. Li the handle on
the le roof section with a smooth rm action to
raise both roof sections. Li until the le roof sec-
tion locks securely into the groove at the top of the
right roof section.
interior set-Up proCedUres
4. Open the lower section of the door. Enter into the
camper while opening and holding the upper sec-
tion of the door. Close the lower door section.
5. Raise the door side wall by liing at the top of the
upper door opening. Continuing to hold the upper
door section open, until the wall is upright.
