Installation and Initial assembly (508FS only)

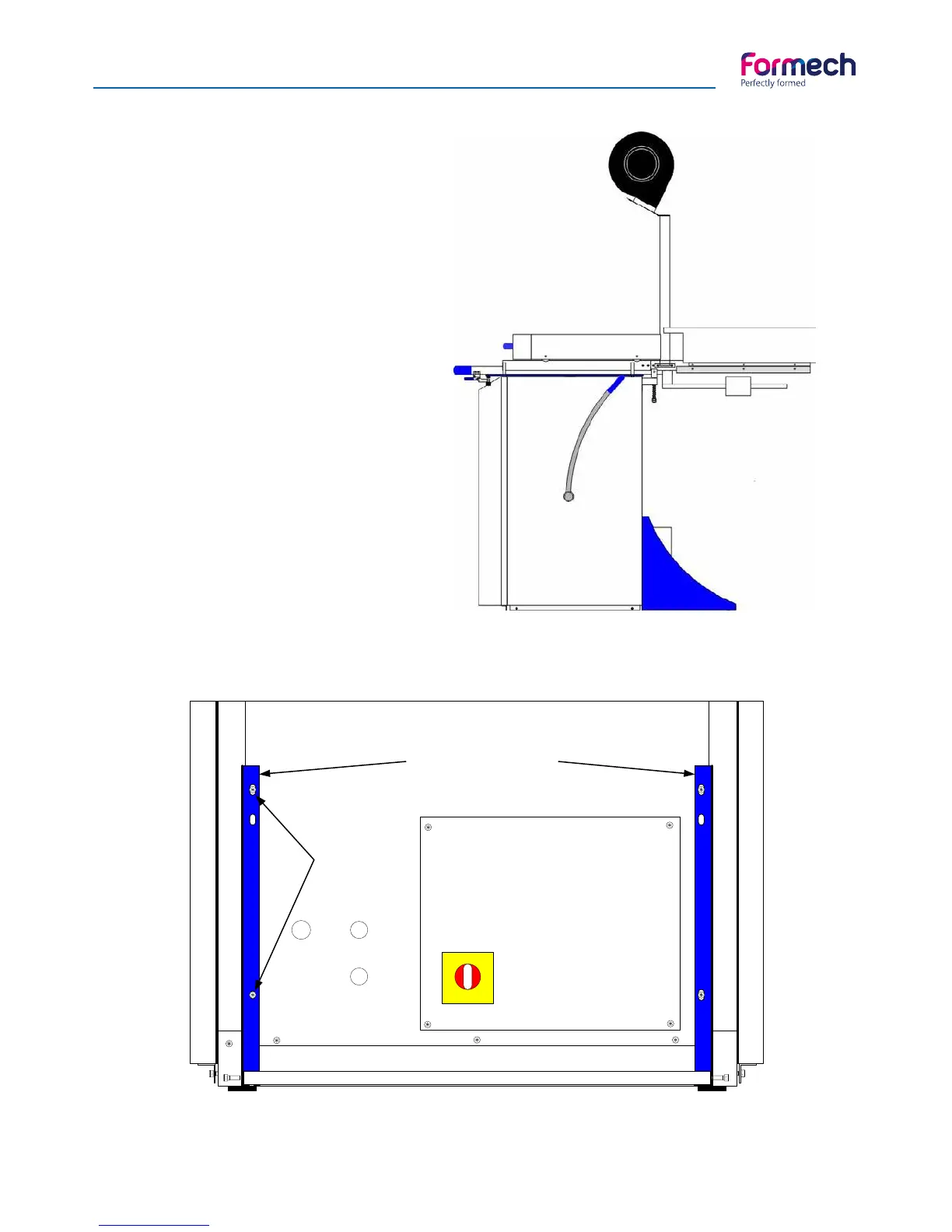

Fitting the rear stabilisers
The triangular supports and the
connecting crossbar at the rear of the
machine need to be assembled before
being attached to the rear of the main
body of the machine.
The triangular supports are
interchangeable between the left and
right hand side. The white crossbar
needs to be bolted to the supports
from the underneath and then the
four bolts tightened to create a rigid
framework.
This is then bolted to the rear of the
main body using four M6 cap head
screws.
