Formech Compac Mini - Wiring Diagram Formech Mini

Manual - Formech Compac Mini
31

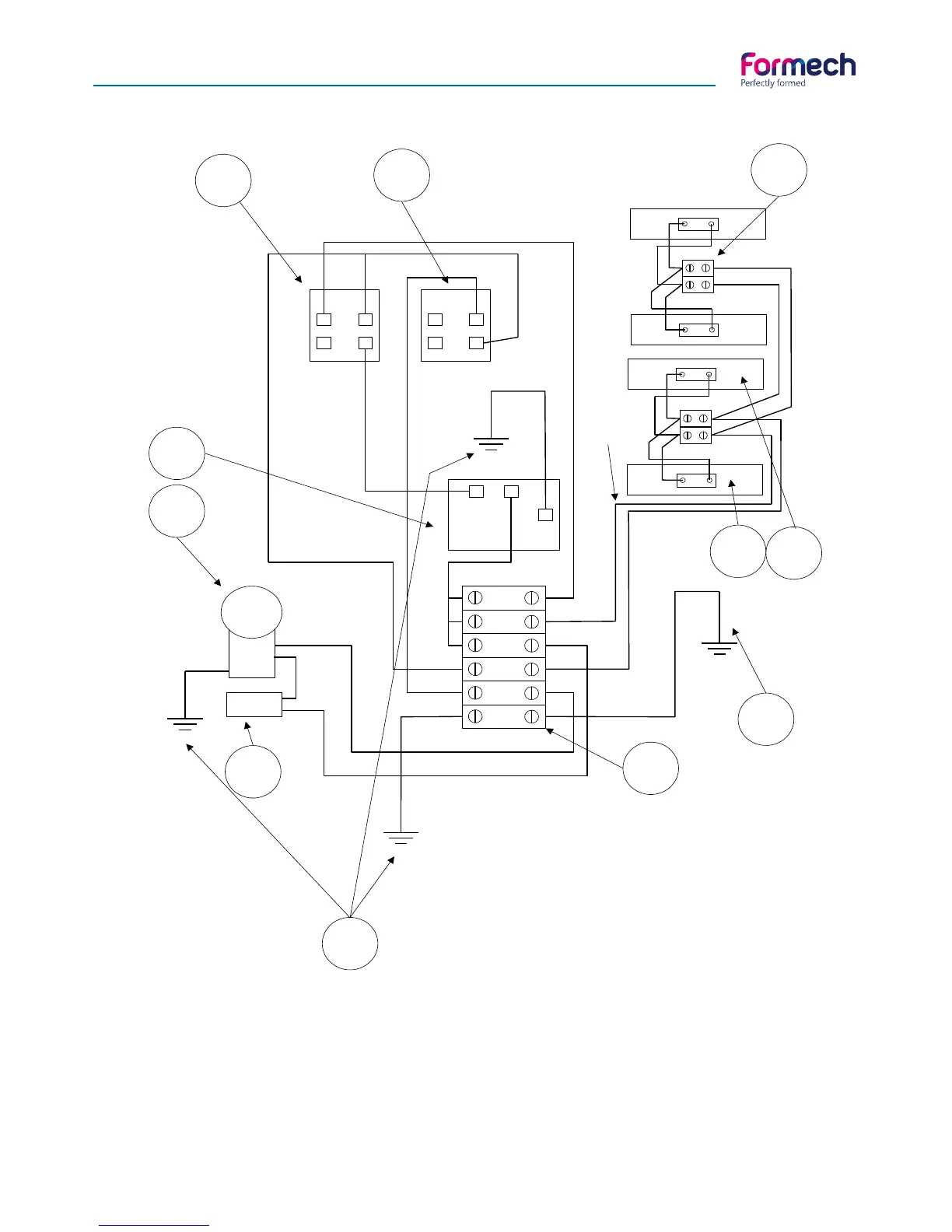

Wiring Diagram Formech Mini

Main L.
(Brown)
Pum p
Feed
(Blue )
Heater
Supply
(Brown)
Switch Lamp
N.(Blue)
Pum p
Switch
Feed
(Brown)
Heater N.
(Black)
Heater
Supply
(Red)
Earth
Stud
Gn/Ylw
Heater
Earth
Stud
Gn/Ylw
Pum p
Feed
(Brown)
Pum p
Cap.1
Pum p
Cap.2
Main N.
(Blue )
Wiring Diagram FORMECH Compac mini
11
10
1
2
3
5
9
8
7
4
6
KEY
1. IEC Inlet Socket
2. Vacuum P ump
3. Vacuum P ump Capacitor
4. Main Earth Stud
5. 6 Way Connector Block
6. Heater Earth Stud
7. 150W FSF Heating Element (2 No.)
8. 125W FSF Heating Element (2 No.)
9. Ceramic Connector Block (2 No.)
10. Pump ON\OFF Switch
11. Mains ON\OFF Illuminated Switch
Pum p
Earth
(Gn.Y lw)
Earth
Stud
Gn/Ylw
KEY
1- IEC Inlet Socket
2- Vacuum Pump
3- Vacuum Punp Capacitor
4- Main Earth Stud
5- 6 Way Connector Block
6- Heater Earth
7- 150W FSF Heating Element (2 No.)
8- 125W FSF Heating Element (2 No.)
9- Ceramic Connector Block (2 No.)
10- Pump ON/OFF Switch
11- Mains ON/OFF Illuminated Switch
