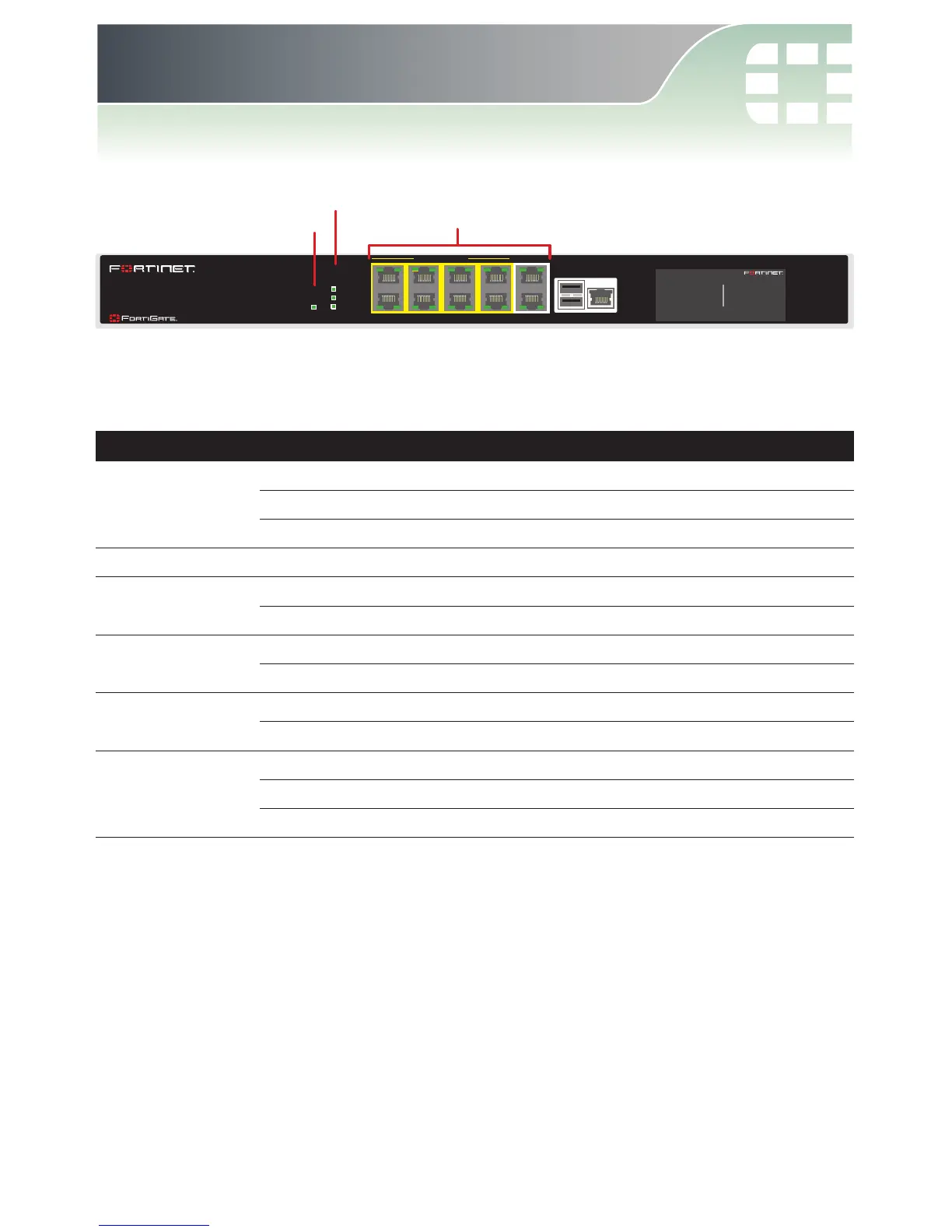

Power LED
Status, Alarm, & HA LEDs
Ethernet Ports
CONSOLE
USB
1/2 3/4 5/6
7/8 9/10
POWER
ASM
STATUS
ALARM
HA
NP2 Powered
310B
LED State Description
STATUS
Green The unit is operating normally.
Flashing Green The unit is turning on.
Off The unit is off.
ALARM Not in use.
HA
Green The unit is operating in normal HA mode.
Off The unit is not operating in HA mode.
POWER
Green The unit is on.
Off The unit is off.
Ethernet Ports
Activity (Left)
Green Port is active.
Off Port is not in use.
Ethernet Port
Speed (Right)
Green Port is connected at 1Gbps.
Yellow Port is connected at 100Mbps.
Off Port is connected at 10Mbps or is not in use.
5. LED Specifi cations
