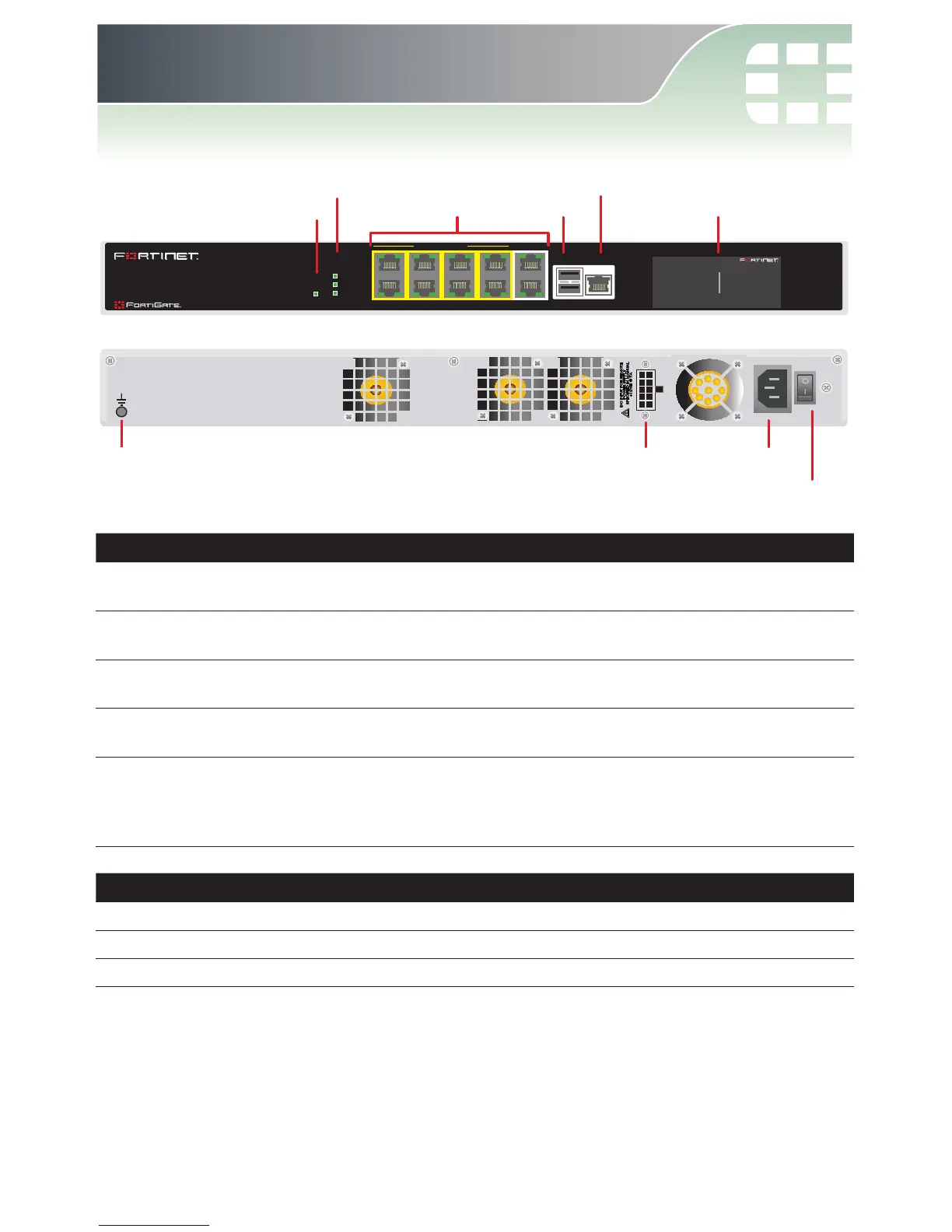

Power LED
Status, Alarm, & HA LEDs
USB Ports
Ethernet Ports 1 - 10
Console Port
AMC Module Slot
CONSOLE
USB
1/2 3/4 5/6
7/8 9/10
POWER
ASM
STATUS
ALARM
HA
NP2 Powered
310B
Front
Back
RPS Connection AC Power
Connection
Ground
Power Switch
Interface Type Protocol Description
Ethernet Ports
1 - 8
RJ-45 Gigabit Ethernet NP2 Powered switched Ethernet ports for
connection to your network and the Internet.
Ethernet Ports
9 - 10
RJ-45 Gigabit Ethernet 10/100/1000 non-accelerated switched Ethernet
ports.
USB USB-A USB 2.0 USB server ports for USB key, modem, or
management functions.
Console RJ-45 RS-232 serial Optional connection to the management computer.
Provides access to the CLI.
AMC Slot AMC Advanced
Mezzanine Card
One single-width slot offering additional ASIC-
accelerated ports for additional throughput or
disk-based storage for local logging and content
archiving.
Hardware Speci cation Description
AC Power 100-240V AC, 60-50Hz
Redundant Power Supply Optional (FRPS-100 or FG-310B-RPS)
AMC Module Slot Optional (ASM-S08 or ASM-FB4)
