12 01-28004-0019-20040830 Fortinet Inc.
Getting started
Package contents
The FortiGate-100 package contains the following items:
FortiGate-100 Antivirus Firewall
one orange crossover ethernet cable (Fortinet part number CC300248)
one gray regular ethernet cable (Fortinet part number CC300249)
one null modem cable (Fortinet part number CC300247)
FortiGate-100 Quick Start Guide
CD containing the FortiGate user documentation
one power cable and AC adapter

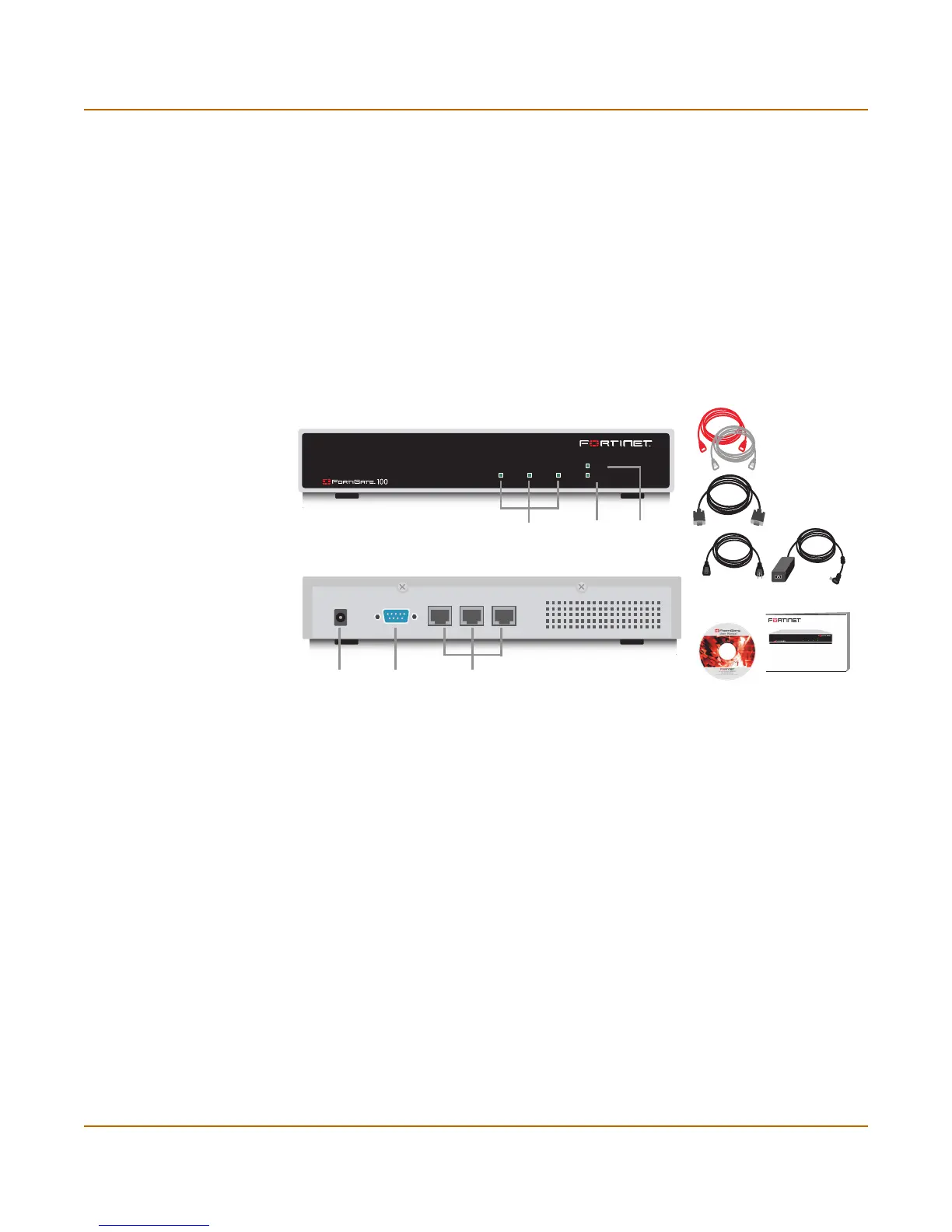

Figure 2: FortiGate-100 package contents
Mounting
The FortiGate-100 unit can be installed on any stable surface. Make sure that the unit
has at least 1.5 in. (3.75 cm) of clearance on each side to allow for adequate air flow
and cooling.
Dimensions
10.25 x 6.13 x 1.75 in. (26 x 15.6 x 4.5 cm)
Weight
1.75 lb. (0.8 kg)
Power requirements
DC input voltage: 12 V
DC input current: 5 A
Back
Front
Power
LED
Internal, External, DMZ
Interfaces
Status
LED
INTERNAL
EXTERNAL
DMZ
POWER
STATUS
DMZ
External
ConsoleDC +12V 5A
Internal
RS-232 Serial
Connection
Power
Connection
DMZ, External, Internal
Interfaces
Null-Modem Cable
(RS-232)
Documentation
Ethernet Cables:
Orange - Crossover
Grey - Straight-through
USER MANUAL
FortiGate-100
QuickStart Guide
Copyright 2003 Fortinet Incorporated. All rights reserved.
Trademarks
Products mentioned in this document are trademarks.
Power Cable Power Supply
