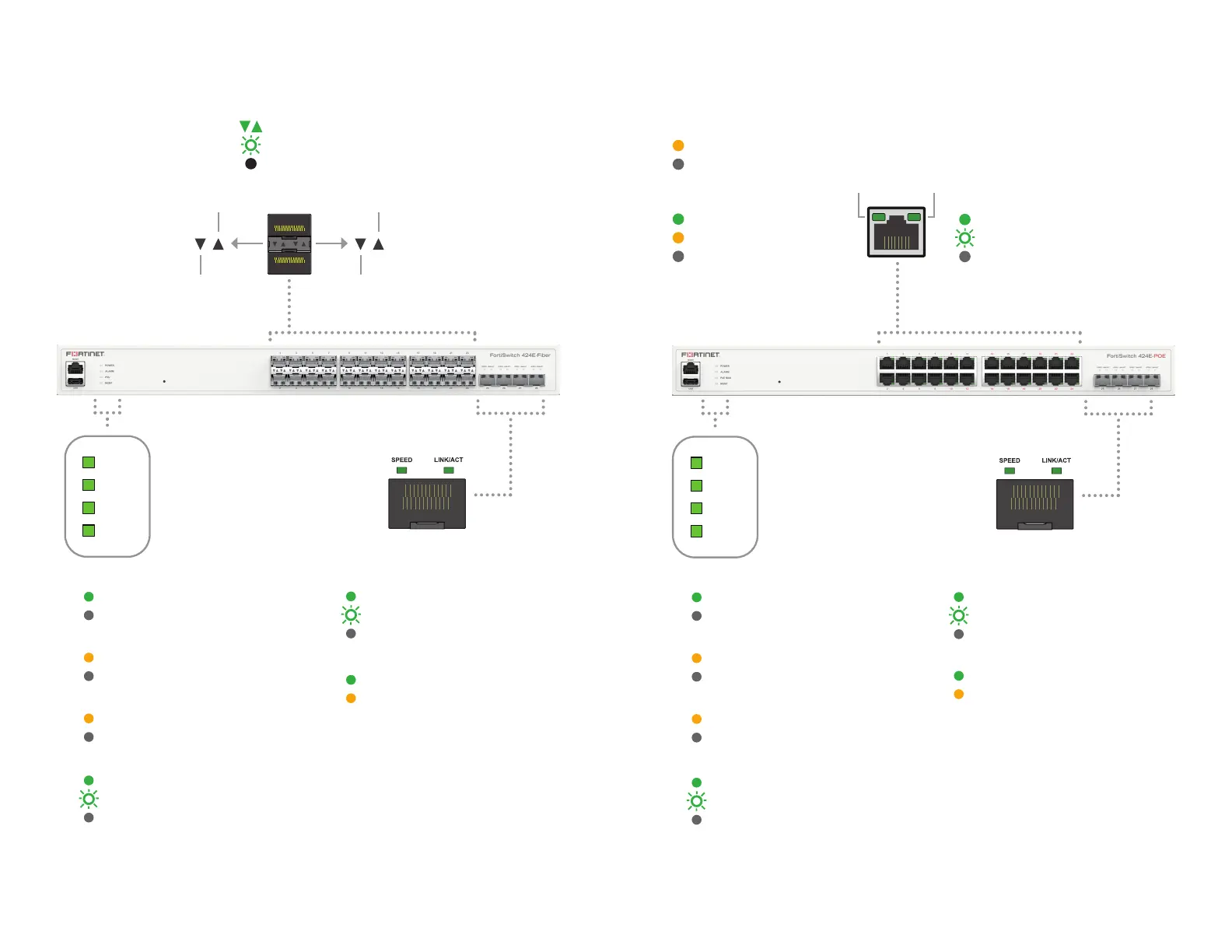

FortiSwitch 424E-Fiber
MGMT
Green: Connected
Flashing Green: Transmitting & receiving data
Off: No link established
Power
Green: The unit is on
Off: The unit is off
Alarm
Amber: The unit has a fault
Off: No faults detected
PSU
Amber: One of the PSU’s have no power
Off: Both internal PSU’s have power
POWER
ALARM
PSU
MGMT
SFP+ Ports Speed
Green: 10Gbps
Amber: 1Gbps
SFP+ Ports Link/Activity
Green: Connected
Flashing Green: Transmit & receive
Off: No link established
Fiber Port Speed & Link/Activity
Green: Connected 1Gps
Flashing Green: Transmit & receive
Off: No link established
Bottom Link/Activity
Top Speed 1Gps
Top Link/Activity
Bottom Speed 1Gps
FortiSwitch 424E-POE & -FPOE
MGMT
Green: Connected
Flashing Green: Transmitting & receiving data
Off: No link established
Power
Green: The unit is on
Off: The unit is off
Alarm
Amber: The unit has a fault
Off: No faults detected
PoE MAX
Amber: Max output power budget reached
Off: PoE power available
POWER
ALARM
PoE MAX
MGMT
SFP+ Ports Speed
Green: 10Gbps
Amber: 1Gbps
SFP+ Ports Link/Activity
Green: Connected
Flashing Green: Transmit & receive
Off: No link established
Link/ActPoE / LAN
Ethernet Ports Link/Activity
Green: Connected
Flashing Green: Transmit & receive
Off: No link established
PoE Ports Power
Amber: Providing power
Off: Not providing power
LAN Mode Ethernet
Green: 1Gbps
Amber: 100Mbps
Off: 10Mbps or no link
