Step 2. Remove the frame.

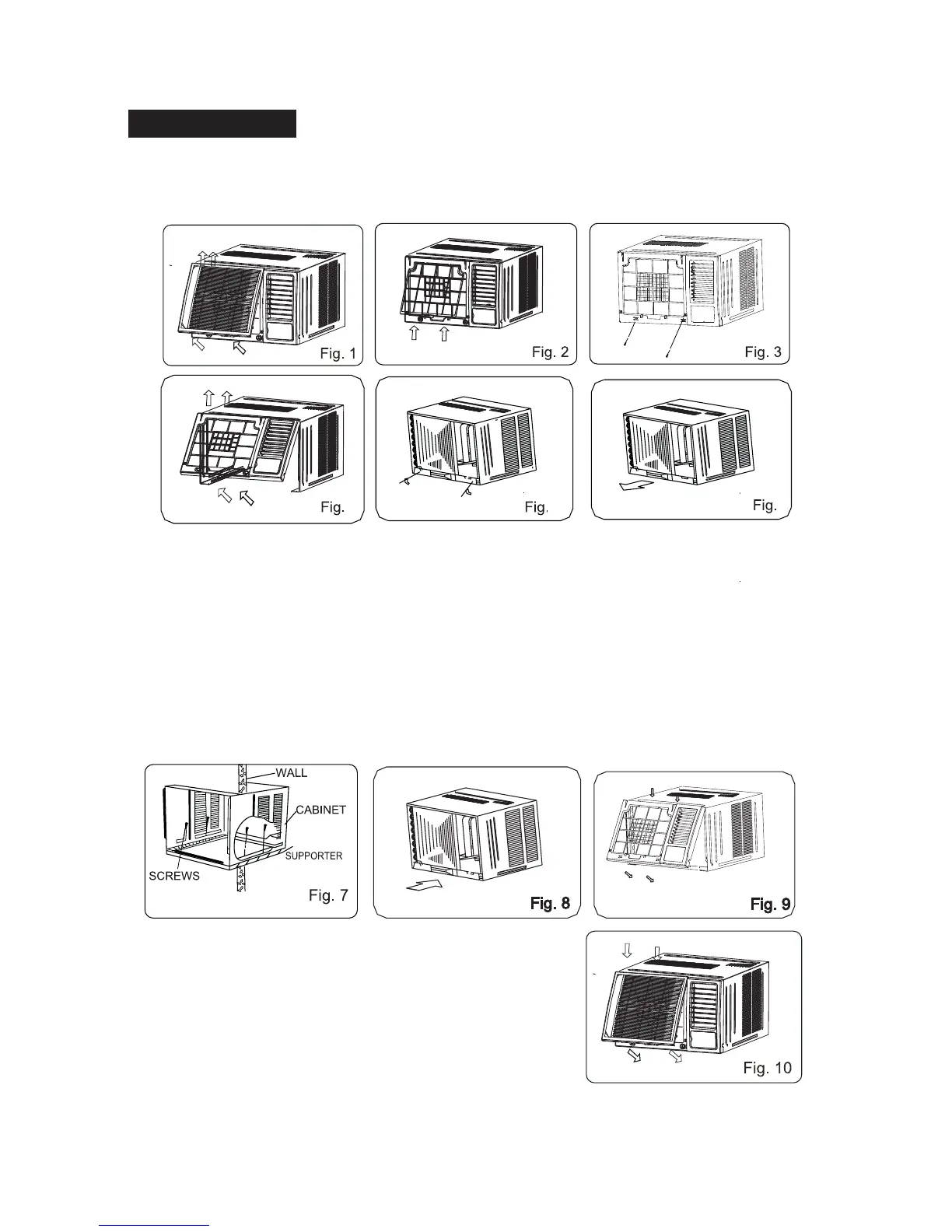

1. Remove two fixing screws from the frame (See Fig.3).
2. Grasp the left corner of the frame's underside, release the coupler plugs,
then loosen the frame (See Fig.4).
Step 3. Installation.
1. Remove two fixing screws on the chassis fixing brackets, then remove the chassis fixing brackets
(See Fig.5).
2. Grasp the handle on the chassis and carefully slide the air conditioner out of the cabinet (See Fig.6).
3. Remove shipping pad from around compressor before operation and make sure the discharge points
to the drain pan are aligned before the chassis is pushed into the cabinet (See Fig.7).
4. Push the unit chassis into the cabinet (See Fig.8).
5. Install two chassis fixing brackets by two fixing screws (See Fig.5).
Step 4. Install the frame.
1. Install the frame and connect the coupler plugs, make
sure not to interfere with the temperature sensor cable
(See Fig.9).
2. Fix the screws on the frame (See Fig.3).
Step 5. Install the air filter and front panel.
1. Install the air filter into the frame's slot from upside to
underside (See Fig.2).
2. Hang the front panel on the frame's buckle, then press the
front panel into the frame's slot until you hear a click (See Fig10).
Installation Steps
Step 1. Remove the front panel and the air filter
1. Hold the tabs under the front panel, then uplift it outwards, and remove the front panel (See Fig.1).
2. Pinch the handle under the air filter and make the air filter arched, remove it from the slot from underside
to upside (See Fig.2).
