5

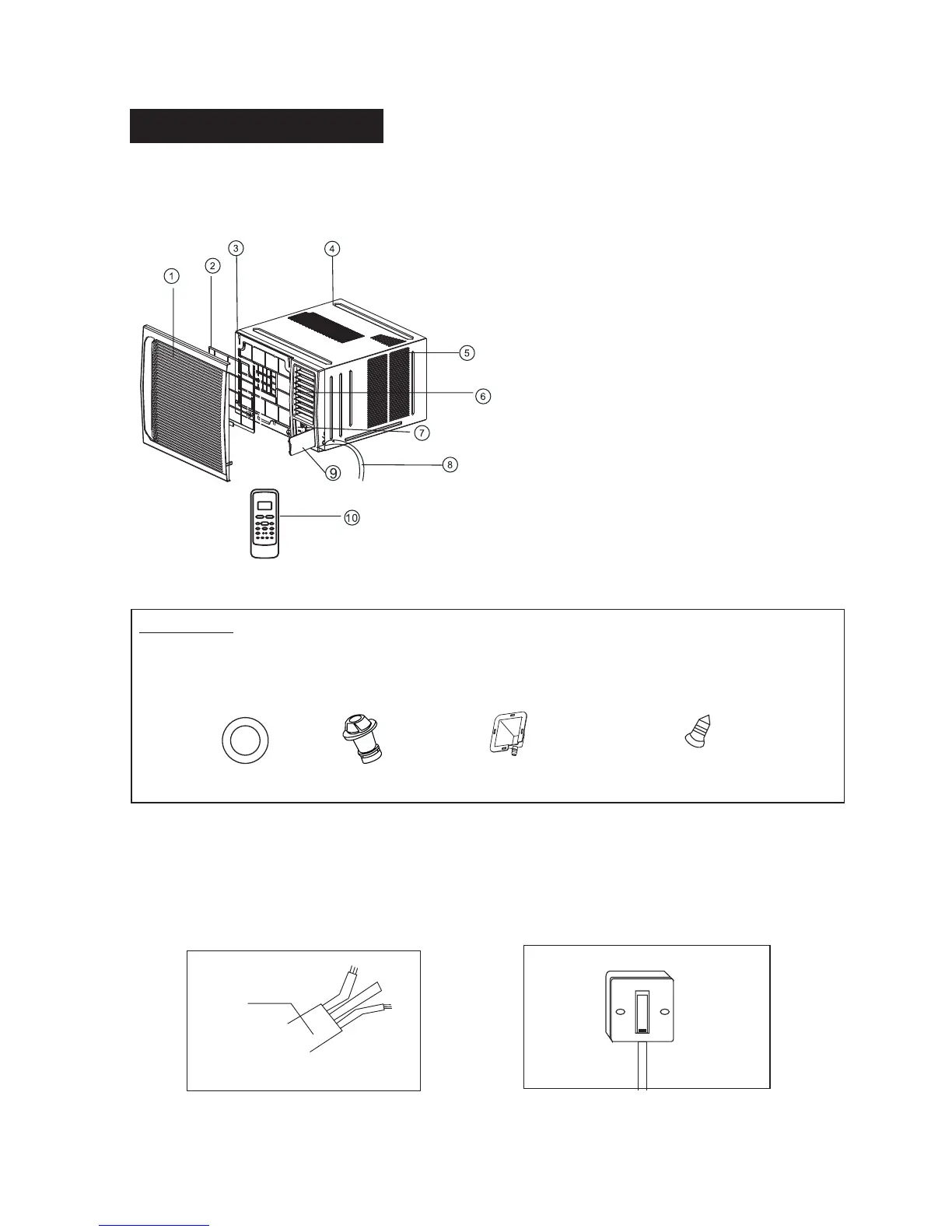

1. Front panel
2. Air filter
3. Frame
4. Cabinet
5. Air inlet grille (outdoor side)
6. Air outlet grille
7. Control panel
8. Power cord
9. Control panel cover
10. Remote control
PARTS DESCRIPTION
NOTE: The front panel and cabinet may be slightly different according to the models, but the
functions are the same. The following illustration is for explanation purpose only, the actual
shape of the machine may be slightly different.
Accessories
Seal
(Used on
drain joint)
1
1
Screw
Drain Joint
1
Drain Tray
2
1. Power cord conductors are distinguished according to color as follows (see Fig.1)
2. Please contact the manufacturer, its service agent or a qualified person when replace the power cord.
3. For the safety and protection, the unit is earthed through the power cord. The wall
outlet (Air-break switch)should be provided with reliable earth wire (see Fig.2).
4. The unit should be provided with an individual circuit and the circuit breaker/fuse
rating should be same as that of the power cord and wall outlet.
POWER
CORD
A
E
N
E-Earth wire, yellow/green
N-Neutral wire, blue
A-Active wire, brown
Fig. 1
Fig. 2
Air-break switch
Note:
