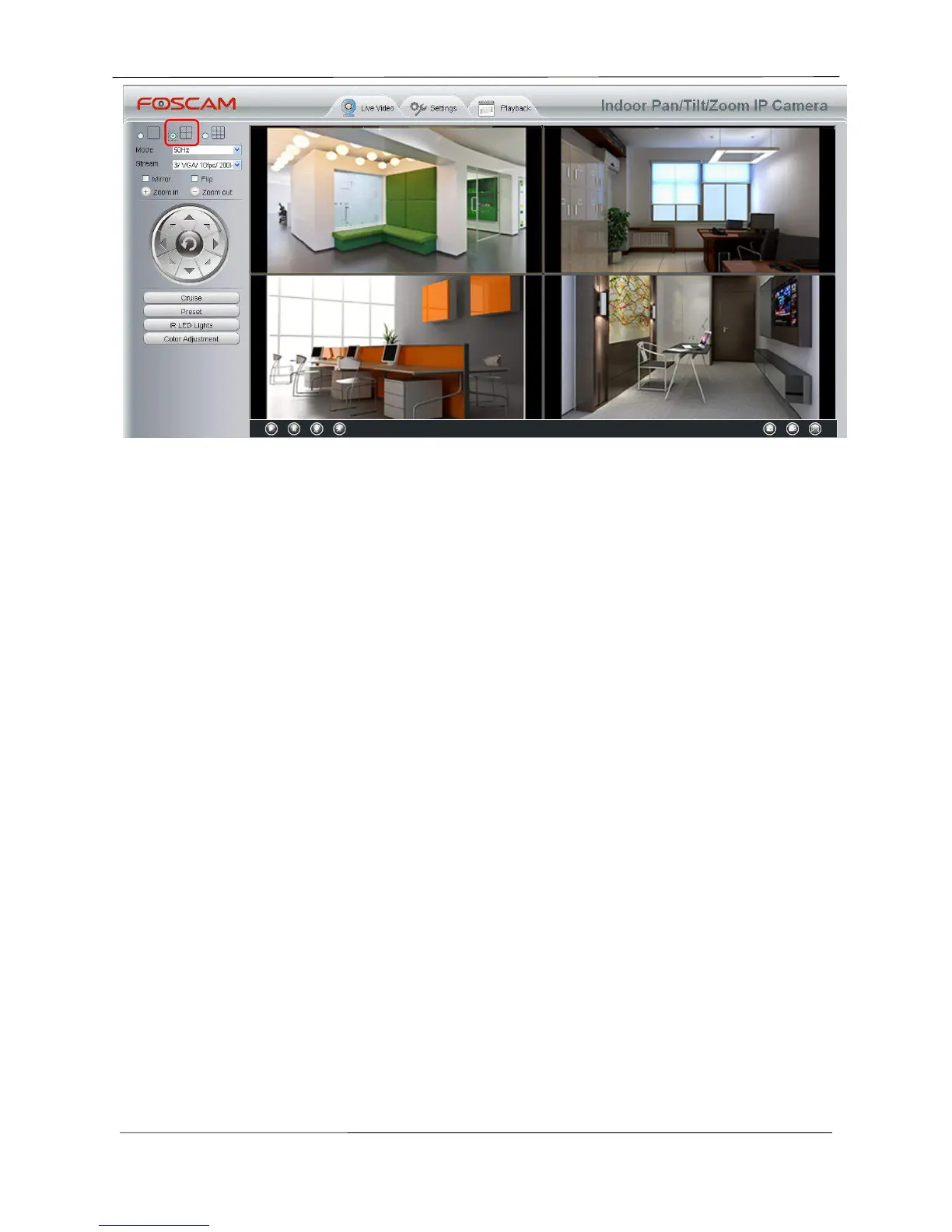

Figure 3.9
Section 3 Mode/ Stream / Mirror/ Flip buttons
Mode
1) 50HZ ---------Indoor surveillance (Region: Europe, China)
2) 60HZ ---------Indoor surveillance (Region: USA, Canada)
3) Outdoor------Outdoor surveillance
Stream
The default stream supports multiple modes, For example: 0/720P/30fps/2M meanings: Stream type NO.
/ Resolution / Maximum frame rate/ Bit rate. (Different models support different specific mode. )
1) Stream type NO. : The number is used to identify the stream type.
2) Resolution
The lowest resolution is QVGA. The bigger the resolution, the better of the image quality is. If you are
accessing the camera via internet and want to get more fluent video streaming, please select resolution
VGA.
3) Maximum frame rate
When the video format is 50Hz, the maximum frame rate is 25 fps. When the video format is 60Hz, the
maximum frame rate is 30 fps. You should lower frame rate when the bandwidth is limited. Normally,
when the frame rate above 15, you can achieve fluently video.
4) Bit rate
Generally speaking, the larger the bit rate is, the clearer video will become. But the bit rate configuration
should combine well with the network bandwidth. When the bandwidth is very narrow, and bit rate is
large, that will lead to video can not play well.
You can reset the stream type on “Settings-> Video-> Video Settings” panel.
