Questions and Answers

M
Mike ClarkAug 13, 2025
How to fix high temperature in my Foster Freezer?
- K
  kingstacyAug 13, 2025
  If the internal temperature of your Foster Freezer is too high, make sure the door is closed properly. Also, ensure that the airflow inside isn't blocked due to excessive or poor loading of products. If the temperature returns to normal, the alarm will reset.
H
Holly JohnsonAug 16, 2025
Why is my Foster Freezer not cooling properly?
- D
  Dr. Erika MeyersAug 16, 2025
  If your Foster Freezer isn't cooling or reaching the correct temperature, first, ensure the temperature is displayed and that the appliance isn't in standby mode ('oFF' on the display). Next, inspect and clean the condenser. Check if a heat source is affecting performance and, if so, move the appliance. Also, verify the product loading is correct.
M
Mark KnappAug 20, 2025
What to do if my Foster Freezer is not working?
- F
  flynnshannonAug 20, 2025
  If your Foster Freezer isn't functioning, first, check if it's properly plugged in and that the socket is working by testing it with another appliance. If the socket is fine, check the fuse and replace it if necessary.
P
Pamela MurphyAug 25, 2025
What happens after power outage with Foster Freezer?
- K
  Kenneth BartlettAug 25, 2025
  After a power outage and restoration, carefully check the products stored inside your Foster Freezer to ensure they are still safe to use. The appliance will resume normal operation. You can cancel the 'PF' message by pressing button 3 once.
R
Robert WardAug 28, 2025
Why is the condenser temperature too high in my Foster Freezer?
- B
  Brent JonesAug 28, 2025
  If the condenser temperature in your Foster Freezer is higher than it should be, it might be due to high ambient temperatures. Try to reduce the ambient temperature around the appliance. If the ambient temperature is not high, please contact your authorised dealer or Foster Service.
S
spatelAug 31, 2025
How to stop the open door alarm on my Foster Freezer?
- J
  jessica35Aug 31, 2025
  To stop the open door alarm on your Foster Freezer, simply close the door.
A
Alexander NobleSep 4, 2025
What to do when the condenser clean period has expired on my Foster Freezer?
- M
  Melanie WilsonSep 4, 2025
  Please contact your authorised dealer or Foster Service.
T
tmartinezSep 8, 2025
What to do if the internal temperature probe fails on my Foster Freezer?
- C
  Christina BarnesSep 8, 2025
  Call your authorised dealer or Foster Service to arrange for this to be replaced.

Summary

Four Steps to Extend Appliance Life

Getting to Know Your Foster Appliance

Learn about your new Foster appliance, including climate class and safety guidelines.

Installation

Step-by-step instructions for unpacking, moving, and setting up the appliance.

Using the Appliance

Guide to operating the appliance, understanding controls, and managing settings.

Maintenance

Routine cleaning, care, and upkeep procedures for the appliance.

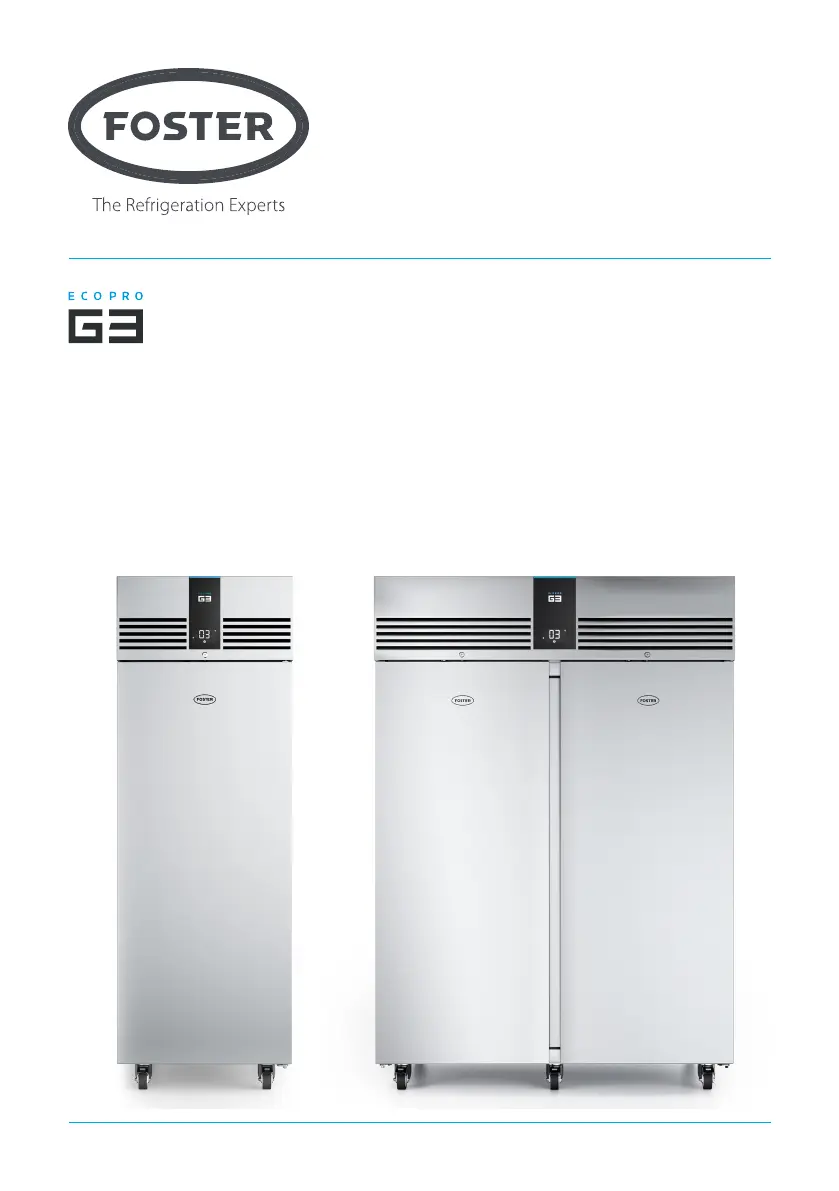

The Foster G3 Cabinets are commercial refrigeration units designed for professional use, offering a range of models including single and double-door configurations. This user manual provides comprehensive instructions for installation, operation, and maintenance to ensure optimal performance and extend the appliance's lifespan.

Function Description:

The Foster G3 Cabinets are designed to store food products at controlled temperatures, maintaining freshness and safety. They feature an internal refrigeration system that automatically regulates temperature and includes a defrost function to prevent ice buildup. The units are equipped with adjustable, removable shelves and trayslides, allowing for flexible storage configurations. Airflow management is a critical aspect of their design, ensuring even temperature distribution and energy efficiency. The cabinets are suitable for various commercial kitchen environments, with models tested for climate classes 4 (30°C ambient, 55% relative humidity) and 5 (40°C ambient, 40% relative humidity).

Important Technical Specifications:

Climate Class:
- Class 4: 30°C ambient temperature, 55% relative humidity
- Class 5: 40°C ambient temperature, 40% relative humidity
Electrical Safety: Requires connection to an electrical supply protected by a Residual Current Device (RCD), such as an RCCB type socket or an RCBO supplied circuit. Replacement fuses must match the value stated on the serial label.
Sound Level: Emitted sound level is not greater than 70dB(A).
Shelf Capacity: Each shelf is capable of holding up to 40kg of product, evenly distributed.
Ventilation: Requires adequate ventilation, with minimum clearances of 100mm at the rear and 50mm on the sides for warm air dissipation.
Weight: Single-door appliances weigh up to 150kg (empty), and double-door appliances weigh up to 230kg (empty).
Internal Light: Applicable to models EP700G and EP1440G, operated via a dedicated button on the display.

Usage Features:

Display Icons and Buttons: The appliance features a digital display with various icons and buttons for monitoring and control:
- Icon 1 (Compressor running): Indicates when the compressor is active.
- Icon 2 (Keypad locked): Shows when the keypad security is engaged.
- Icon 3 (Evaporator fans running): Indicates fan operation.
- Icon 4 (Defrost in progress): Illuminates during the defrost cycle.
- Icon 5 (Alarm): Flashes to indicate an alarm condition.
- Icon 6/7 (Display units): Shows whether the temperature is displayed in Centigrade or Fahrenheit.
- Icon 8 (Auxiliary output operation): Indicates auxiliary output activity.
- Button 1 (Information menu): Accesses additional information.
- Button 2 (Increase value): Used to increase numerical settings.
- Button 3 (Standby/Exit/Confirm): Toggles standby mode, exits menus, or confirms selections.
- Button 4 (Decrease value): Used to decrease numerical settings.
- Button 5 (Light - if fitted): Controls the internal light.
Standby Mode: Pressing button 3 for 3 seconds toggles the unit between on and standby. In standby, only button 3 is displayed.
Set Point Adjustment: The internal temperature set point can be viewed and adjusted using buttons 1, 2, 3, and 4. Changes are saved by pressing button 3.
Keypad Security Settings: A security function can be activated to prevent unauthorized adjustments to the appliance's operating temperature. This is accessed by pressing button 3, then button 1, then button 4, and then using buttons 2 and 4 to select "Yes" to lock or "No" to unlock, confirming with button 3.
Defrost Function: The appliance has an automatic periodic defrost function. A manual defrost can be initiated by pressing and holding button 3 for 5 seconds until icon 4 illuminates.
Loading and Air Flow: Products should be loaded to allow adequate air circulation, with a minimum of 25mm space between the top of the product and the shelf above. Products should not be placed directly on the base of the appliance without appropriate shelves and spacers.
Door Lock: Doors can be locked and unlocked using a key, requiring a 90° turn.

Maintenance Features:

Cleaning and Maintenance:
- General Cleaning: All internal and external surfaces should be cleaned periodically with a mild liquid detergent, rinsed with clean water, and dried thoroughly. Abrasive materials, wire wool, or high-acid/alkaline cleaning agents should not be used.
- Condenser Air Grill: Loose dust and dirt should be removed from the condenser air grill using a soft brush or vacuum.
- Condenser: Regular cleaning of the condenser (located behind the air grill) by a competent engineer every 6 to 12 months is recommended to maintain energy efficiency and prolong appliance life.
- Gasket: Door gaskets should be inspected regularly for damage and cleaned with a warm damp soapy cloth, then rinsed and dried.
- Shelves: Shelves are removable and dishwasher safe. Vertical supports should be cleaned with warm soapy water.
Troubleshooting (Alarms/Warnings): The display provides indicators for various operational issues:
- hi: Internal temperature is too high. Check door closure and airflow obstruction.
- Lo: Internal temperature is too low. Check product loading temperature.
- do: Appliance door is open. Close the door to clear the alarm.
- tA: Internal temperature probe has failed. Contact service; remove products and switch off the appliance.
- tE: Evaporator probe has failed. Contact service.
- PF: Mains power has been restored after an outage. Press button 3 to clear.
- HC: Condenser temperature is too high. Reduce ambient temperature or contact service.
- Cnd: Condenser clean period has expired. Contact service.
- Icon 5 (Alarm) will illuminate during any alarm condition.
Service and Spares: Contact details for Foster Refrigerator's service and parts departments are provided for technical assistance and ordering replacement components. It is recommended to quote the model and serial number (found on the inside right-hand wall, starting with 'E') when requesting service.
