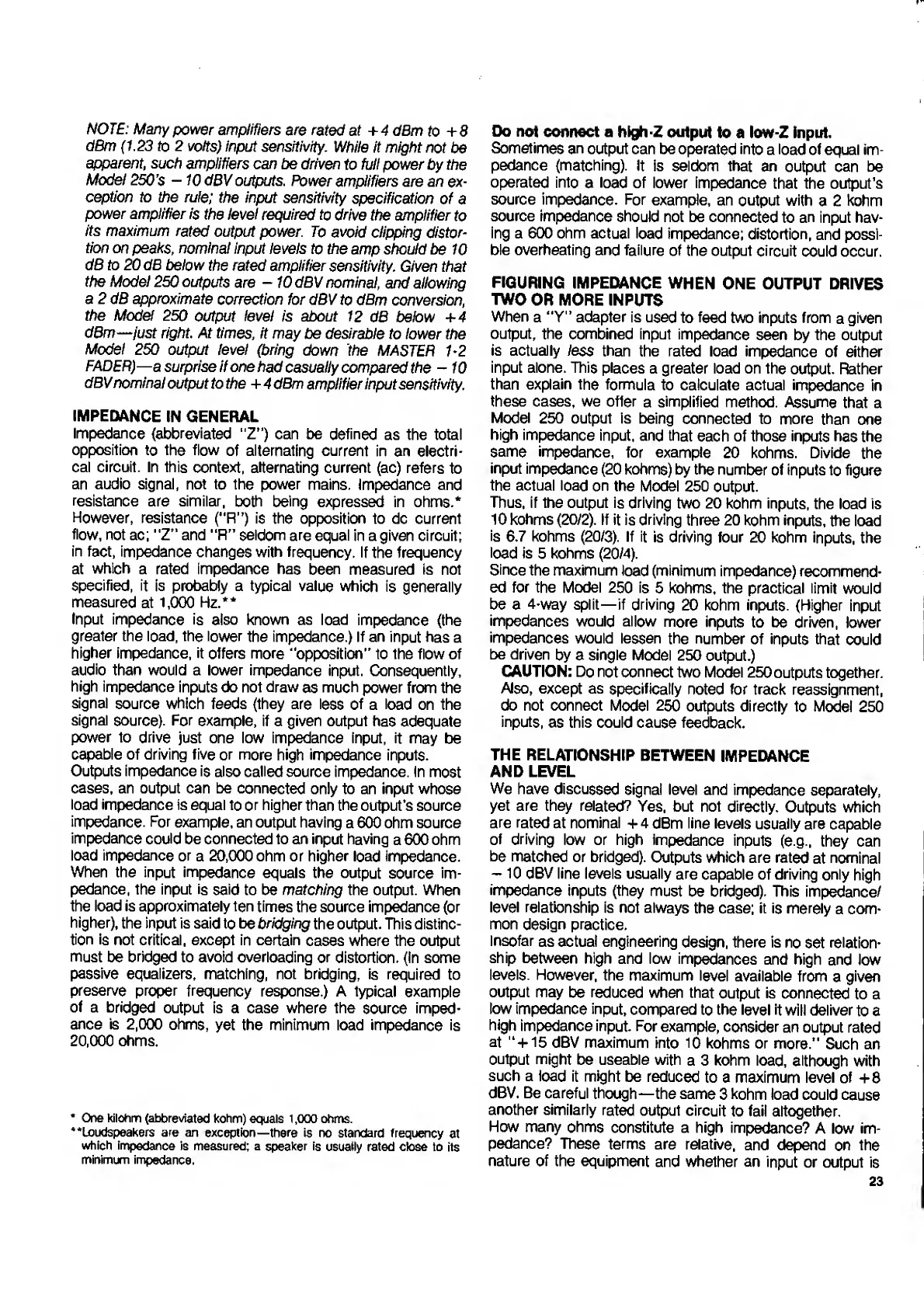

NOTE:
Many
power
amplifiers
are
rated
at
+4
dBm
to
+8
dBm
(1.23
to
2
volts)
input
sensitivity.
While
it
might
not
be
apparent,
such
amplifiers
can
be
driven
to
full
power
by
the
Model
250’$
-10
dBV
outputs.
Power
amplifiers
are
an
ex¬
ception
to
the
rule;
the
input
sensitivity
specification
of
a
power
amplifier
is
the
level
required
to
drive
the
amplifier
to
its
maximum
rated
output
power.
To
avoid
clipping
distor¬
tion
on
peaks,
nominal
input
levels
to
the
amp
should
be
10
dB
to
20
dB
below
the
rated
amplifier
sensitivity.
Given
that
the
Model
250
outputs
are
10
dBV
nominal,
and
allowing
a
2
dB
approximate
correction
for
dBV
to
dBm
conversion,
the
Model
250
output
level
is
about
12
dB
below
+4
dBm—just
right.
At
times,
it
may
be
desirable
to
lower
the
Model
250
output
level
(bring
down
the
MASTER
1-2
FADER)—a
surprise
if
one
had
casually
compared
the
-10
dBVnominal
output
to
the
+
4
dBm
amplifier
input
sensitivity.
IMPEDANCE
IN
GENERAL
Impedance
{abbreviated
"Z”)
can
be
defined
as
the
total
opposition
to
the
flow
of
alternating
current
in
an
electri¬
cal
circuit.
In
this
context,
alternating
current
(ac)
refers
to
an
audio
signal,
not
to
the
power
mains.
Impedance
and
resistance
are
similar,
both
being
expressed
in
ohms.*
However,
resistance
("R”)
is
the
opposition
to
dc
current
flow,
not
ac;
"Z"
and
“R”
seldom
are
equal
in
a
given
circuit;
in
fact,
impedance
changes
with
frequency.
If
the
frequency
at
which
a
rated
impedance
has
been
measured
is
not
specified,
it
is
probably
a
typical
value
which
is
generally
measured
at
1,000
Hz.**
Input
impedance
is
also
known
as
load
impedance
(the
greater
the
load,
the
lower
the
impedance.)
If
an
input
has
a
higher
impedance,
it
offers
more
“opposition"
to
the
flow
of
audio
than
would
a
lower
impedance
input.
Consequently,
high
impedance
inputs
do
not
draw
as
much
power
from
the
signal
source
which
feeds
{they
are
less
of
a
load
on
the
signal
source).
For
example,
if
a
given
output
has
adequate
power
to
drive
just
one
low
impedance
input,
it
may
be
capable
of
driving
five
or
more
high
impedance
inputs.
Outputs
impedance
is
also
called
source
impedance.
In
most
cases,
an
output
can
be
connected
only
to
an
input
whose
load
impedance
is
equal
to
or
higher
than
the
output’s
source
impedance.
For
example,
an
output
having
a
600
ohm
source
impedance
could
be
connected
to
an
input
having
a
600
ohm
load
impedance
or
a
20,000
ohm
or
higher
load
impedance.
When
the
input
impedance
equals
the
output
source
im¬
pedance,
the
input
is
said
to
be
matching
the
output.
When
the
load
is
approximately
ten
times
the
source
impedance
(or
higher),
the
input
is
said
to
be
bridging
the
output.
This
distinc¬
tion
is
not
critical,
except
in
certain
cases
where
the
output
must
be
bridged
to
avoid
overloading
or
distortion.
(In
some
passive
equalizers,
matching,
not
bridging,
is
required
to
preserve
proper
frequency
response.)
A
typical
example
of
a
bridged
output
is
a
case
where
the
source
imped¬
ance
is
2,000
ohms,
yet
the
minimum
load
impedance
is
20,000
ohms.
*
One
kilohm
(abbreviated
kohm)
equals
1,000
ohms.
“Loudspeakers
are
an
exception—there
is
no
standard
frequency
at
which
impedance
is
measured;
a
speaker
is
usually
rated
close
to
its
minimum
impedance.
Do
not
connect
a
hlgh-Z
output
to
a
low-Z
input.
Sometimes
an
output
can
be
operated
into
a
load
of
equal
im¬
pedance
(matching).
It
is
seldom
that
an
output
can
be
operated
into
a
load
of
lower
impedance
that
the
output’s
source
impedance.
For
example,
an
output
with
a
2
kohm
source
impedance
should
not
be
connected
to
an
input
hav¬
ing
a
600
ohm
actual
load
impedance;
distortion,
and
possi¬
ble
overheating
and
failure
of
the
output
circuit
could
occur,
FIGURING
IMPEDANCE
WHEN
ONE
OUTPUT
DRIVES
TWO
OR
MORE
INPUTS
When
a
“Y”
adapter
is
used
to
feed
two
inputs
from
a
given
output,
the
combined
input
impedance
seen
by
the
output
is
actually
less
than
the
rated
load
impedance
of
either
input
alone.
This
places
a
greater
load
on
the
output.
Rather
than
explain
the
formula
to
calculate
actual
impedance
in
these
cases,
we
offer
a
simplified
method.
Assume
that
a
Model
250
output
is
being
connected
to
more
than
one
high
impedance
input,
and
that
each
of
those
inputs
has
the
same
impedance,
for
example
20
kohms.
Divide
the
input
impedance
(20
kohms)
by
the
number
of
inputs
to
figure
the
actual
load
on
the
Model
250
output.
Thus,
if
the
output
is
driving
two
20
kohm
inputs,
the
load
is
10
kohms
(20/2).
If
it
is
driving
three
20
kohm
inputs,
the
load
is
6.7
kohms
(20/3).
if
it
is
driving
four
20
kohm
inputs,
the
load
is
5
kohms
(20/4).
Since
the
maximum
load
(minimum
impedance)
recommend¬
ed
for
the
Model
250
is
5
kohms,
the
practical
limit
would
be
a
4-way
split—if
driving
20
kohm
inputs.
(Higher
input
impedances
would
allow
more
inputs
to
be
driven,
lower
impedances
would
lessen
the
number
of
inputs
that
could
be
driven
by
a
single
Model
250
output.)
CAUTION:
Do
not
connect
two
Model
250
outputs
together.
Also,
except
as
specifically
noted
for
track
reassignment,
do
not
connect
Model
250
outputs
directly
to
Model
250
inputs,
as
this
could
cause
feedback.
THE
RELATIONSHIP
BETWEEN
IMPEDANCE
AND
LEVEL
We
have
discussed
signal
level
and
impedance
separately,
yet
are
they
related?
Yes,
but
not
directly.
Outputs
which
are
rated
at
nominal
+4
dBm
line
levels
usually
are
capable
of
driving
low
or
high
impedance
inputs
(e.g.,
they
can
be
matched
or
bridged).
Outputs
which
are
rated
at
nominal
-
10
dBV
line
levels
usually
are
capable
of
driving
only
high
impedance
inputs
(they
must
be
bridged).
This
impedance/
level
relationship
is
not
always
the
case;
it
is
merely
a
com¬
mon
design
practice.
Insofar
as
actual
engineering
design,
there
is
no
set
relation¬
ship
between
high
and
low
impedances
and
high
and
low
levels.
However,
the
maximum
level
available
from
a
given
output
may
be
reduced
when
that
output
is
connected
to
a
low
impedance
input,
compared
to
the
level
it
will
deliver
to
a
high
impedance
input.
For
example,
consider
an
output
rated
at
+
15
dBV
maximum
into
10
kohms
or
more.’’
Such
an
output
might
be
useable
with
a
3
kohm
load,
although
with
such
a
load
it
might
be
reduced
to
a
maximum
level
of
+8
dBV.
Be
careful
though—the
same
3
kohm
load
could
cause
another
similarly
rated
output
circuit
to
fail
altogether.
How
many
ohms
constitute
a
high
impedance?
A
low
im¬
pedance?
These
terms
are
relative,
and
depend
on
the
nature
of
the
equipment
and
whether
an
input
or
output
is
23
