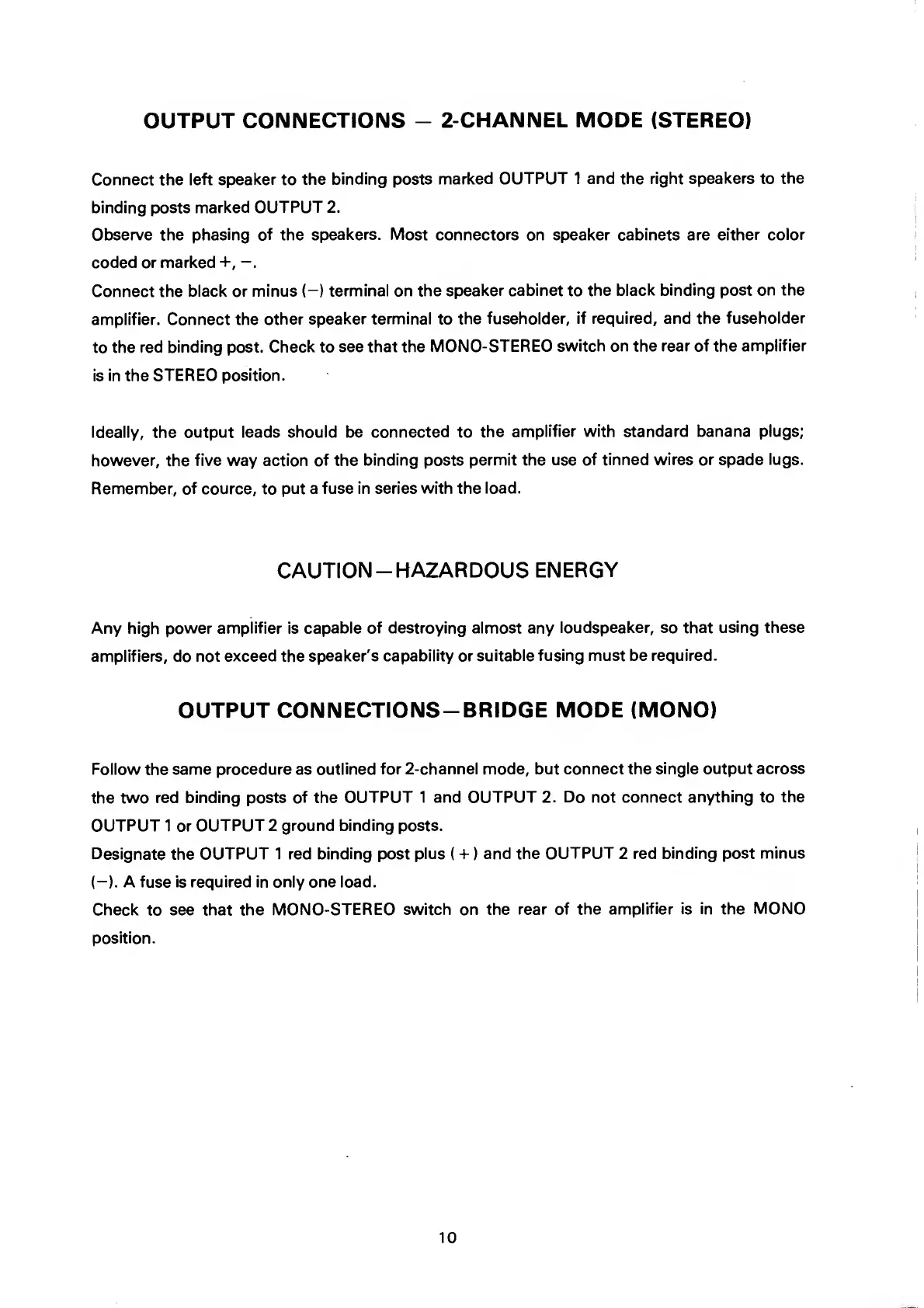

OUTPUT
CONNECTIONS
-
2-CHANNEL
MODE
(STEREO)
Connect
the
left
speaker
to
the
binding
posts
marked
OUTPUT
1
and
the
right
speakers
to
the
binding
posts
marked
OUTPUT
2.
Observe
the
phasing
of
the
speakers.
Most
connectors
on
speaker
cabinets
are
either
color
coded
or
marked
+,
Connect
the
black
or
minus
(—)
terminal
on
the
speaker
cabinet
to
the
black
binding
post
on
the
amplifier.
Connect
the
other
speaker
terminal
to
the
fuseholder,
if
required,
and
the
fuseholder
to
the
red
binding
post.
Check
to
see
that
the
MONO-STEREO
switch
on
the
rear
of
the
amplifier
is
in
the
STEREO
position.
Ideally,
the
output
leads
should
be
connected
to
the
amplifier
with
standard
banana
plugs;
however,
the
five
way
action
of
the
binding
posts
permit
the
use
of
tinned
wires
or
spade
lugs.
Remember,
of
cource,
to
put
a
fuse
in
series
with
the
load.
CAUTION-HAZARDOUS
ENERGY
Any
high
power
amplifier
is
capable
of
destroying
almost
any
loudspeaker,
so
that
using
these
amplifiers,
do
not
exceed
the
speaker's
capability
or
suitable
fusing
must
be
required.
OUTPUT
CONNECTIONS-BRIDGE
MODE
(MONO)
Follow
the
same
procedure
as
outlined
for
2-channel
mode,
but
connect
the
single
output
across
the
two
red
binding
posts
of
the
OUTPUT
1
and
OUTPUT
2.
Do
not
connect
anything
to
the
OUTPUT
1
or
OUTPUT
2
ground
binding
posts.
Designate
the
OUTPUT
1
red
binding
post
plus
(-i-)
and
the
OUTPUT
2
red
binding
post
minus
(-).
A
fuse
is
required
in
only
one
load.
Check
to
see
that
the
MONO-STEREO
switch
on
the
rear
of
the
amplifier
is
in
the
MONO
position.
10
