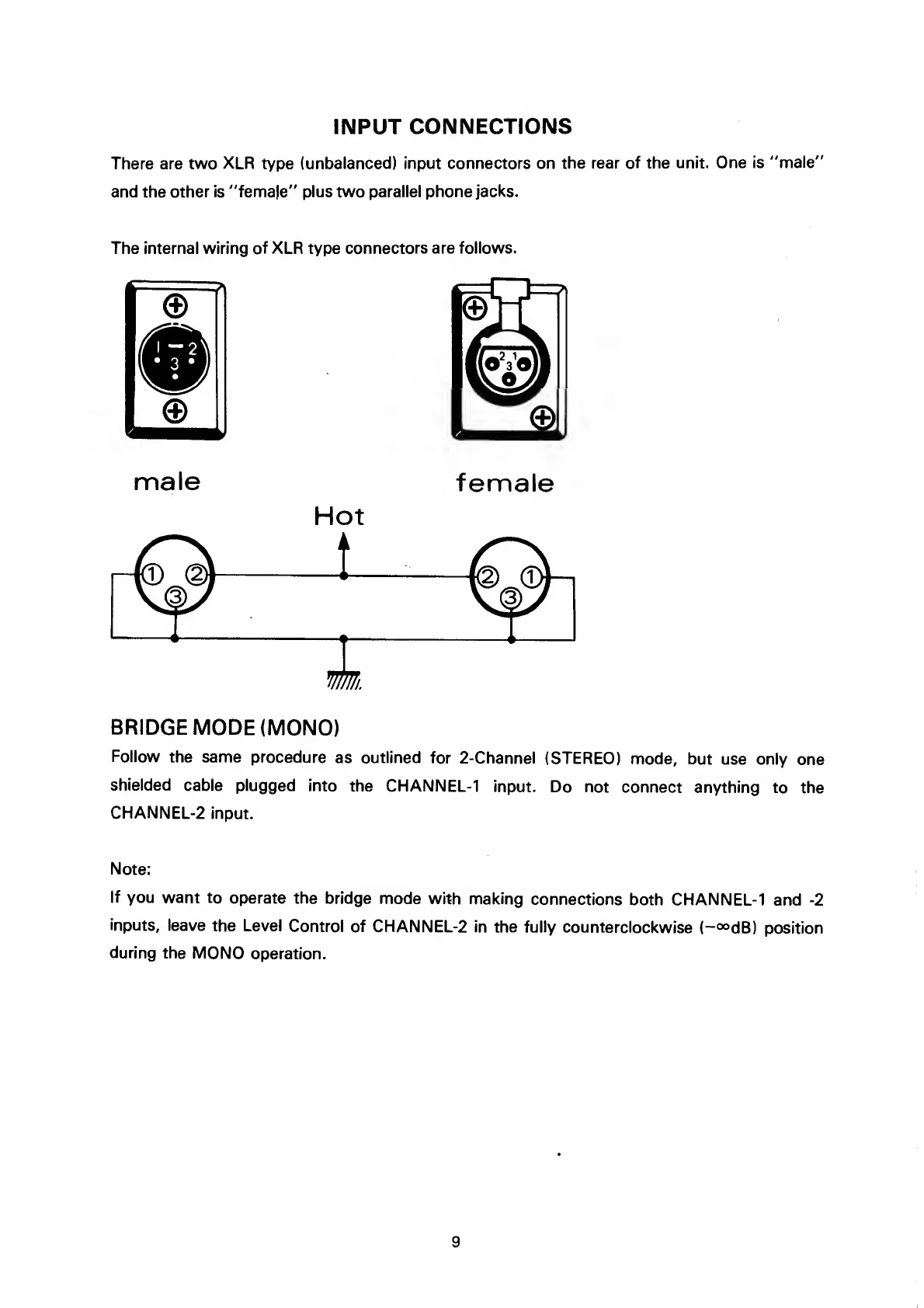

INPUT
CONNECTIONS
There
are
two
XLR
type
(unbalanced)
input
connectors
on
the
rear
of
the
unit.
One
is
"male”
and
the
other
is
"female"
plus
two
parallel
phone
jacks.
The
internal
wiring
of
XLR
type
connectors
are
follows.
male
female
Hot
BRIDGE
MODE
(MONO)
Follow
the
same
procedure
as
outlined
for
2-Channel
(STEREO)
mode,
but
use
only
one
shielded
cable
plugged
into
the
CHANNEL-1
input.
Do
not
connect
anything
to
the
CHANNEL-2
input.
Note:
If
you
want
to
operate
the
bridge
mode
with
making
connections
both
CHANNEL-1
and
-2
inputs,
leave
the
Level
Control
of
CHANNEL-2
in
the
fully
counterclockwise
(-o^dB)
position
during
the
MONO
operation.
9
