11

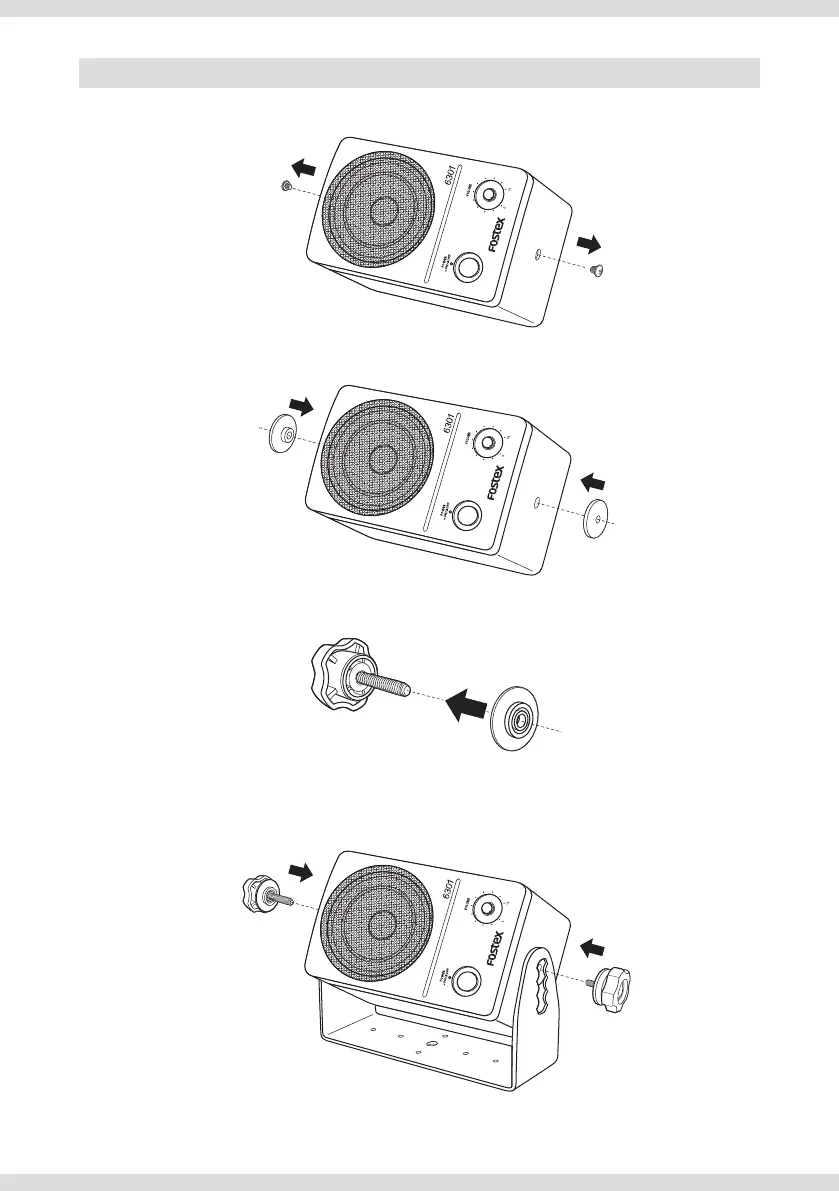

Attaching EB-6301
1 Remove the screws on the top and bottom of the 6301N series.
2 Attach the rubber washers (with no grooves) to the top and bottom of the unit.
3 Fit the rubber washers (with grooves) onto the mounting screws.
4 Adjust the unit to your preferred position in the bracket, then attach and tighten
the mounting screws prepared in step 3.
To Next Page
