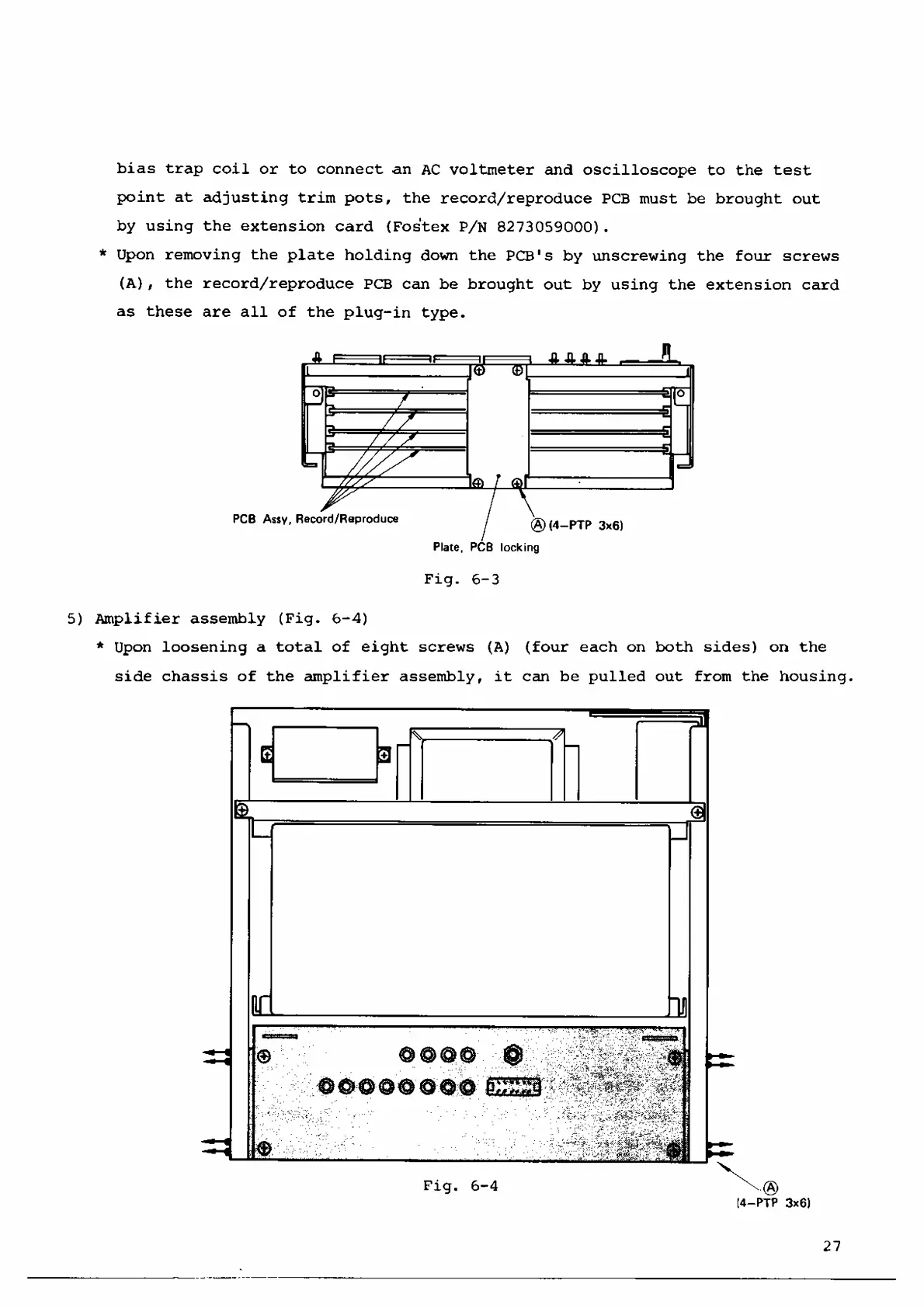

bias
trap
coil
or
to
connect
an
AC
voltmeter
and
oscilloscope
to
the
test
point
at
adjusting
trim
pots,
the
record/reproduce
PCB
must
be
brought
out
by
using
the
extension
card
(Fos'tex
P/N
8273059000)
.
*
Upon
removing
the
plate
holding
down
the
PCB's
by
unscrewing
the
four
screws
(A)
,
the
record/reproduce
PCB
can
be
brought
out
by
using
the
extension
card
as
these
are
all
of
the
plug-in
type.
5)
Amplifier
assembly
(Fig.
6-4)
*
Upon
loosening
a
total
of
eight
screws
(A)
(four
each
on
both
sides)
on
the
side
chassis
of
the
amplifier
assembly,
it
can
be
pulled
out
from
the
housing.
(4
PTP
3x6)
27
