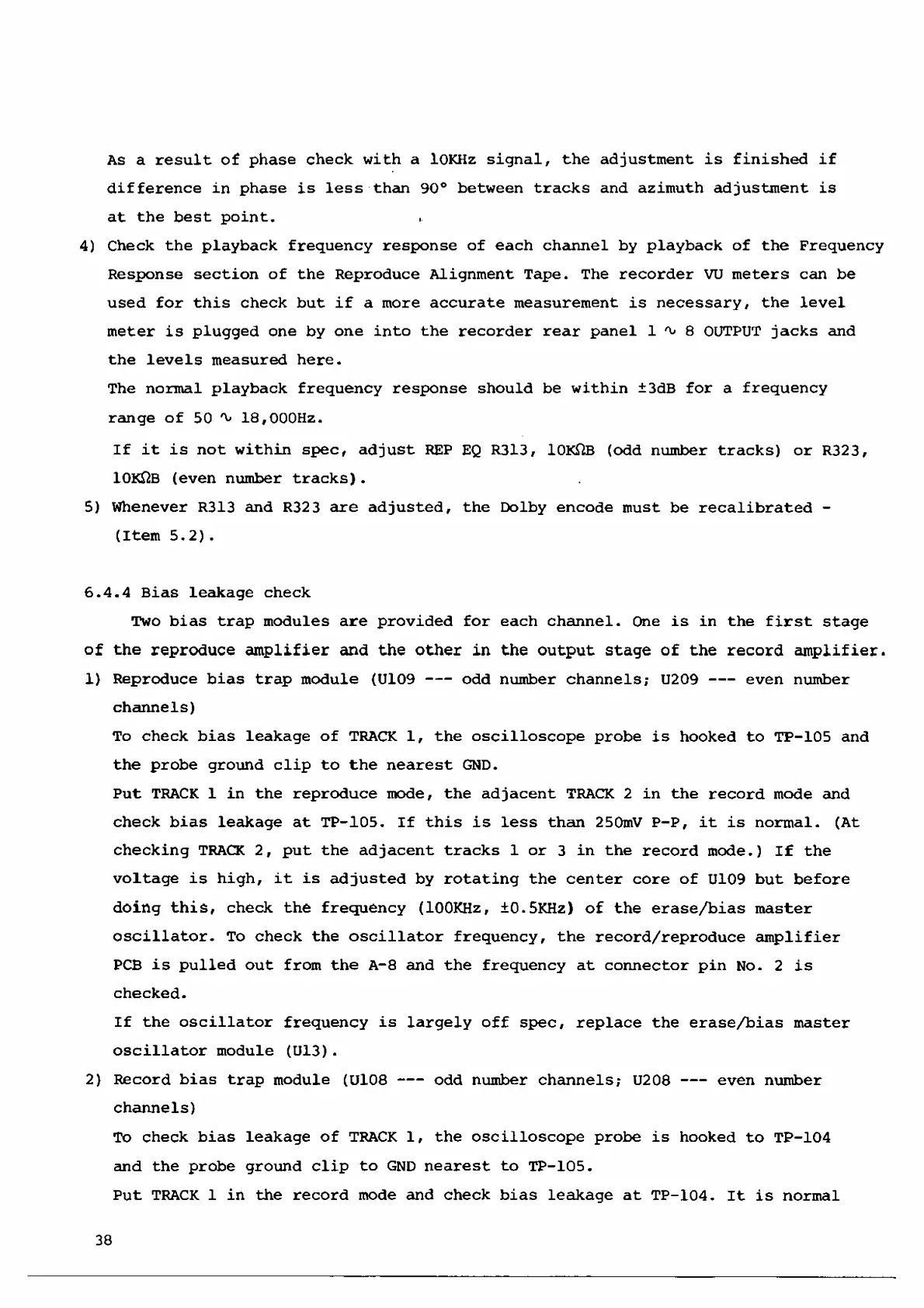

As
a
result
of
phase
check,
with
a
lOKHz
signal,
the
adjustment
is
finished
if
difference
in
phase
is
less
than
90°
between
tracks
and
azimuth
adjustment
is
at
the
best
point.
4)
Check
the
playback
frequency
response
of
each
channel
by
playback
of
the
Frequency
Response
section
of
the
Reproduce
Alignment
Tape.
The
recorder
VU
meters
can
be
used
for
this
check
but
if
a
more
accurate
measurement
is
necessary,
the
level
meter
is
plugged
one
by
one
into
the
recorder
rear
panel
1
a
,
8
OUTPUT
jacks
and
the
levels
measured
here.
The
normal
playback
frequency
response
should
be
within
±3dB
for
a
frequency
range
of
50
't
18,
OOOHz.
If
it
is
not
within
spec,
adjust
REP
EQ
R313,
10K0
b
(odd
number
tracks)
or
R323,
IOKQ
b
(even
number
tracks).
5)
Whenever
R313
and
R323
are
adjusted,
the
Dolby
encode
must
be
recalibrated
-
(Item
5.2).
6.4.4
Bias
leakage
check
Two
bias
trap
modules
are
provided
for
each
channel.
One
is
in
the
first
stage
of
the
reproduce
amplifier
and
the
other
in
the
output
stage
of
the
record
amplifier.
1)
Reproduce
bias
trap
module
(U109
--
odd
number
channels;
U209
--
even
number
channels)
To
check
bias
leakage
of
TRACK
1,
the
oscilloscope
probe
is
hooked
to
TP-105
and
the
probe
ground
clip
to
the
nearest
GND.
Put
TRACK
1
in
the
reproduce
mode,
the
adjacent
TRACK
2
in
the
record
mode
and
check
bias
leakage
at
TP-
105.
If
this
is
less
than
250mV
P-P,
it
is
normal.
(At
checking
TRACK
2,
put
the
adjacent
tracks
1
or
3
in
the
record
mode.)
If
the
voltage
is
high,
it
is
adjusted
by
rotating
the
center
core
of
U109
but
before
doing
this,
check
the
frequency
(lOOKHz,
±0.5KHz)
of
the
erase/bias
master
oscillator.
To
check
the
oscillator
frequency,
the
record/reproduce
amplifier
PCB
is
pulled
out
from
the
A-8
and
the
frequency
at
connector
pin
No.
2
is
checked.
If
the
oscillator
frequency
is
largely
off
spec,
replace
the
erase/bias
master
oscillator
module
(U13)
.
2)
Record
bias
trap
module
(U108
--
odd
number
channels;
U208
---
even
number
channels)
To
check
bias
leakage
of
TRACK
1,
the
oscilloscope
probe
is
hooked
to
TP-104
and
the
probe
ground
clip
to
GND
nearest
to
TP-105.
Put
TRACK
1
in
the
record
mode
and
check
bias
leakage
at
TP-104.
It
is
normal
38
