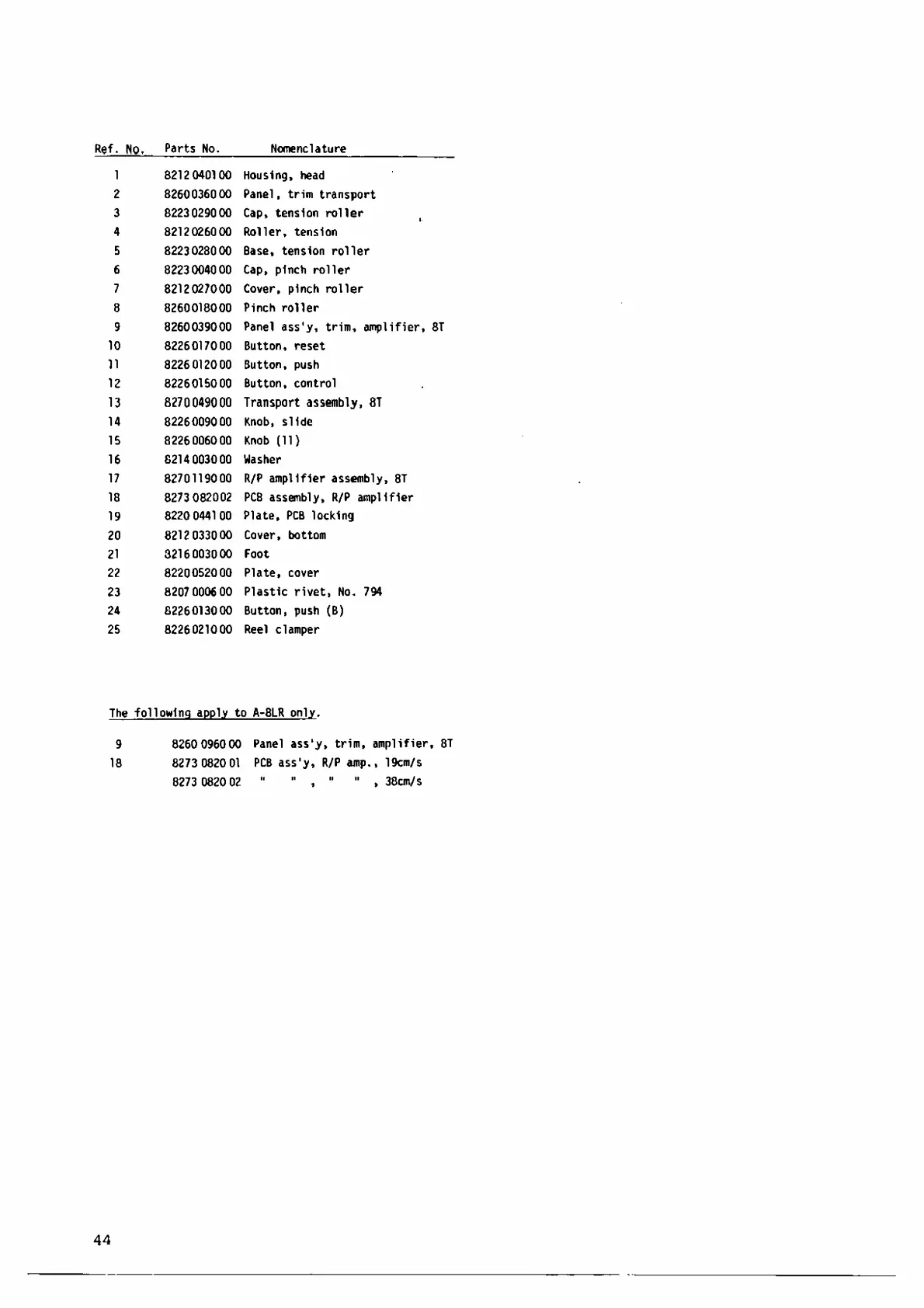

Fostex A-8 - Component Parts Lists

Ref. No,
Parts No.
Nomenclature
1 8212 040100 Housing, head
2 8260036000
Panel , trim transport
3 8223029000 Cap, tension roller
4 8212026000 Roller, tension
5
8223028000
Base, tension roller
6
8223004000
Cap, pinch roller
7
8212027000 Cover, pinch roller
8
8260018000
Pinch roller
9 8260039000
Pane! ass'y, trim, amplifier, 8T
10 8226017000
Button, reset
11 8226012000
Button, push
12 8226015000
Button, control
13 827 0 0490 00
Transport assembly, 8T
14
8226009000
Knob, slide
15 8226006000
Knob (11)
16
8214003000 Washer
17
8270119000
R/P amplifier assembly, 8T
18
8273 082002 PCB assembly, R/P amplifier
19
8220 0441 00
Plate, PCB locking
20
8212 033000 Cover, bottom
21
3216003000 Foot
22 8220052000 Plate, cover
23 8207 0006 00
Plastic rivet, No. 794
24 8226013000
Button, push (B)
25 8226021000 Reel clamper
The following apply to A-8LR only .
9 8260096000 Panel ass'y, trim, amplifier, 8T
18 8273 082001 PCB ass'y, R/P amp., 19cm/s
8273 0820 02
, 38cm/s
