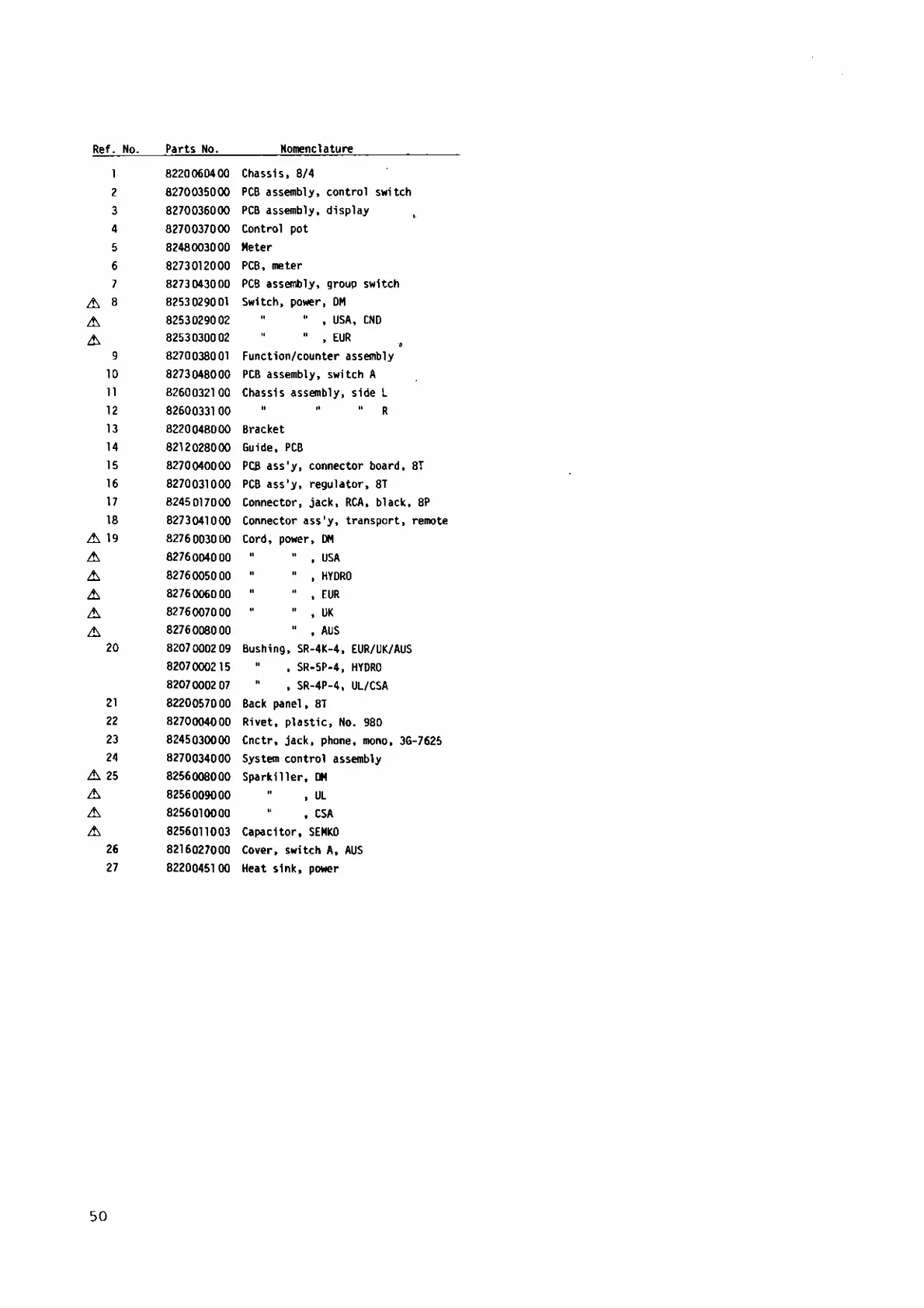

Fostex A-8 - Page 48

Ref. No.
>>>>
>>>>>>
>>>
Nomenclature Parts No.
1 8220060400 Chassis, 8/4
2 8270035000
PCB assembly, control switch
3 8270036000
PCB assembly, display ,
4 8270037000 Control pot
5 8248003000 Meter
6 8273012000
PCB, meter
7 8273 043000 PCB assembly, group switch
8
8253 0290 01
8253029002
8253030002
Switch, power, DM
" " , USA, CND
" " , EUR
9
8270038001 Function/counter assembly
10
8273048000
PCB assembly, switch A
11
82600321 00 Chassis assembly, side L
12
82600331 00
" " " R
13
8220048000 Bracket
14
8212028000
Guide, PCB
15
8270040000 PCB ass'y, connector board, 87
16
8270031000 PCB ass'y, regulator, 8T
17
8245 017000
Connector, jack, RCA, black, 8P
18
8273041000
Connector ass ’ y, transport, remote
19
8276 0030 00
82760040 00
8276005000
82760060 00
8276007000
82760080 00
Cord, power, DM
" " , USA
" " , HYDRO
" " , EUR
" " , UK
" , AUS
20
8207000209
8207000215
8207000207
Bushing, SR-4K-4, EUR/UK/AUS
" , SR-5P-4, HYDRO
" , SR-4P-4, UL/CSA
21
8220057000
Back panel , 87
22
8270004000
Rivet, plastic. No. 980
23
8245030000
Cnctr, jack, phone, mono, 3G-7625
24
8270034000
System control assembly
25
8256008000
8256009000
8256010000
8256011003
Sparkiller, DM
” , UL
“ , CSA
Capacitor, SENKO
26
8216027000
Cover, switch A, AUS
27
82200451 00
Heat sink, power
