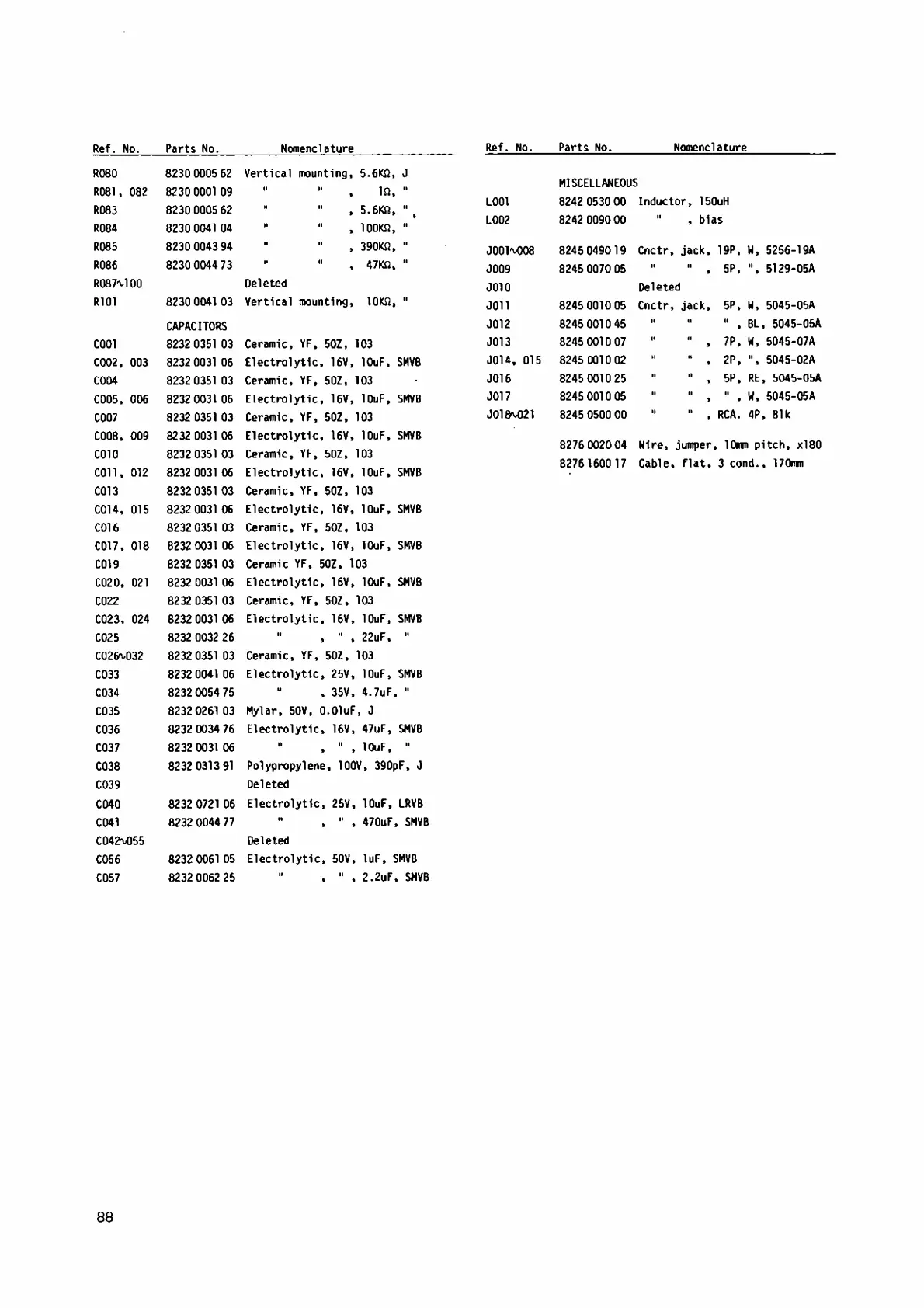

Fostex A-8 - Miscellaneous Component Lists

Ref. No. Parts No. Nomenclature
R080 8230 0005 62
Vertical mounting, 5.6KS, J
R081 , 082
8230 0001 09
" " , in, "
R083 8230 0005 62
" " , 5.6KI), " r
R084
8230 0041 04
" " , 100KO, "
R085
8230 004394 " " , 390KJ1, "
R086 8230 004473
" " , 47KI1, "
R087^1 00
R101
8230 0041 03
Deleted
Vertical mounting, lOKil, "
C001
CAPACITORS
8232 0351 03 Ceramic, YF, 50Z, 103
CQO2, 003
8232 0031 06 Electrolytic, 16V, lOuF, SMVB
C004 8232 0351 03 Ceramic, YF, 50Z, 103
C005, 006
8232 0031 06 Electrolytic, 16V, lOuF, SMVB
C007 8232 0351 03 Ceramic, YF, 50Z, 103
COOS, 009
8232 0031 06
Electrolytic, 16V, lOuF, SMVB
C010
8232 0351 03
Ceramic, YF, 50Z, 103
con, 012
8232 0031 06 Electrolytic, 16V, lOuF, SMVB
COI 3 8232 0351 03
Ceramic, YF, 50Z, 103
COI 4, 015
8232 0031 06
Electrolytic, 16V, lOuF, SMVB
COI 6 8232 0351 03
Ceramic, YF, 5OZ, 103
C017, 018 8232 0031 06
Electrolytic, 16V, lOuF, SMVB
COI 9 8232 0351 03
Ceramic YF, 50Z, 103
C020, 021
8232 0031 06
Electrolytic, 16V, lOuF, SMVB
C022 8232 0351 03
Ceramic, YF, 5OZ, 103
C023, 024
8232 0031 06
Electrolytic, 16V, lOuF, SMVB
CO25
8232 0032 26
" , ” t 22uF, "
0026^032 8232 0351 03
Ceramic, YF, 5QZ, 103
CO33
8232 0041 06
Electrolytic, 25V, lOuF, SMVB
C034 8232 0054 75
u , 35V, 4.7uF, "
C035 8232 0261 03
Mylar, 50V, O.OluF, J
C036
8232 0034 76 Electrolytic, 16V, 47uF, SMVB
C037 8232 0031 06
" , " , lOuF, "
C038
8232 0313 91
Polypropylene, 100V, 390pF, J
CO39
C040 8232 0721 06
Deleted
Electrolytic, 25V, lOuF, LRVB
C041 8232 0044 77
" , " , 470uF, SMVB
C 042^055
CO56
8232 0061 05
Deleted
Electrolytic, 50V, luF, SMVB
C057
8232 0062 25
" , " , 2.2uF, SMVB
Ref. No. Parts No.
Nomencl ature
MISCELLANEOUS
LOOl
L002
8242 0530 00
8242 0090 00
Inductor, 150uH
" , bias
jooi'vooa
8245 049019
Cnctr, jack. 19P, M, 5256-19A
J009 8245 0070 05
" " , 5P, ", 5129-05A
J010
Deleted
J011
8245 0010 05
Cnctr, jack, 5P, W, 5045-05A
J012 8245 0010 45
........................... , BL, 5045-05A
JOI 3
8245 0010 07
" " , 7P, W, 5045-07A
JOI 4, 015
8245 0010 02 " " , 2P, ", 5045-02A
JOI 6 8245 0010 25
" " , 5P, RE, 5O45-O5A
JOI 7 8245 0010 05
" " , ", W, 5045-05A
J018MJ21
8245 0500 00
" " , RCA. 4P, Blk
8276 002004 Wire, jumper, lOmn pitch, xl80
82761600 17
Cable, flat, 3 cond., 17 0mm
