Fostex E-2 - Rack Mounting

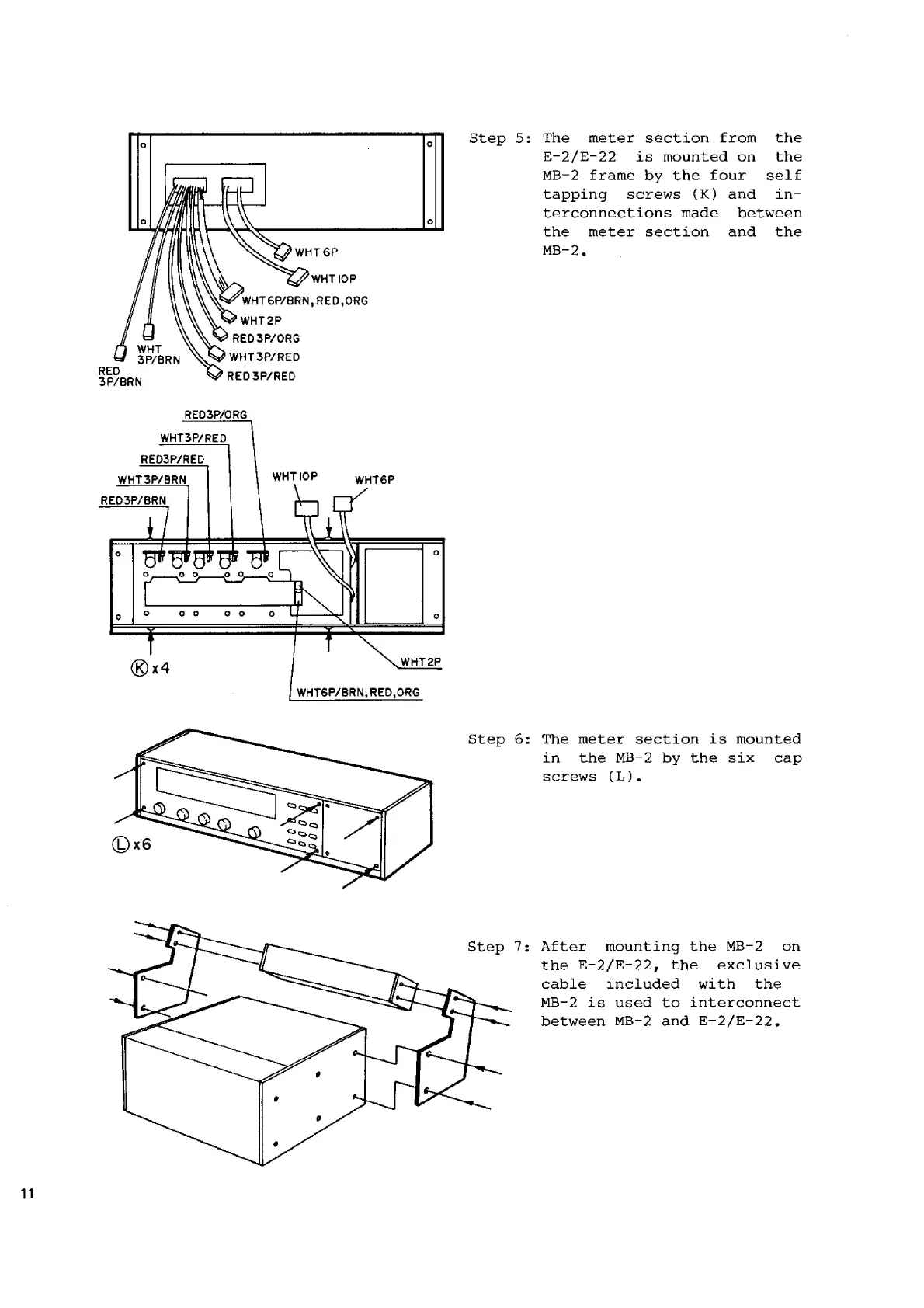

Step 5: The meter section from the
E-2/E-22 is mounted on the
MB-2 frame by the four self
tapping screws (К) and іп-
terconnections made between
the meter section and the
MB-2.
7 P WHT IOP
E WHTGP/BRN, RED,ORG
Қ RED 3P/RED
RED3P/ORG
WHT6P/BRN, RED,ORG
Step 6: The meter section is mounted
in the MB-2 by the six cap
screws (L).
Step 7: After mounting the MB-2 оп
the E-2/E-22, the exclusive
cable included with the
MB-2 is used to interconnect
between MB-2 and E-2/E-22.
11
