Fostex E-2 User Manual

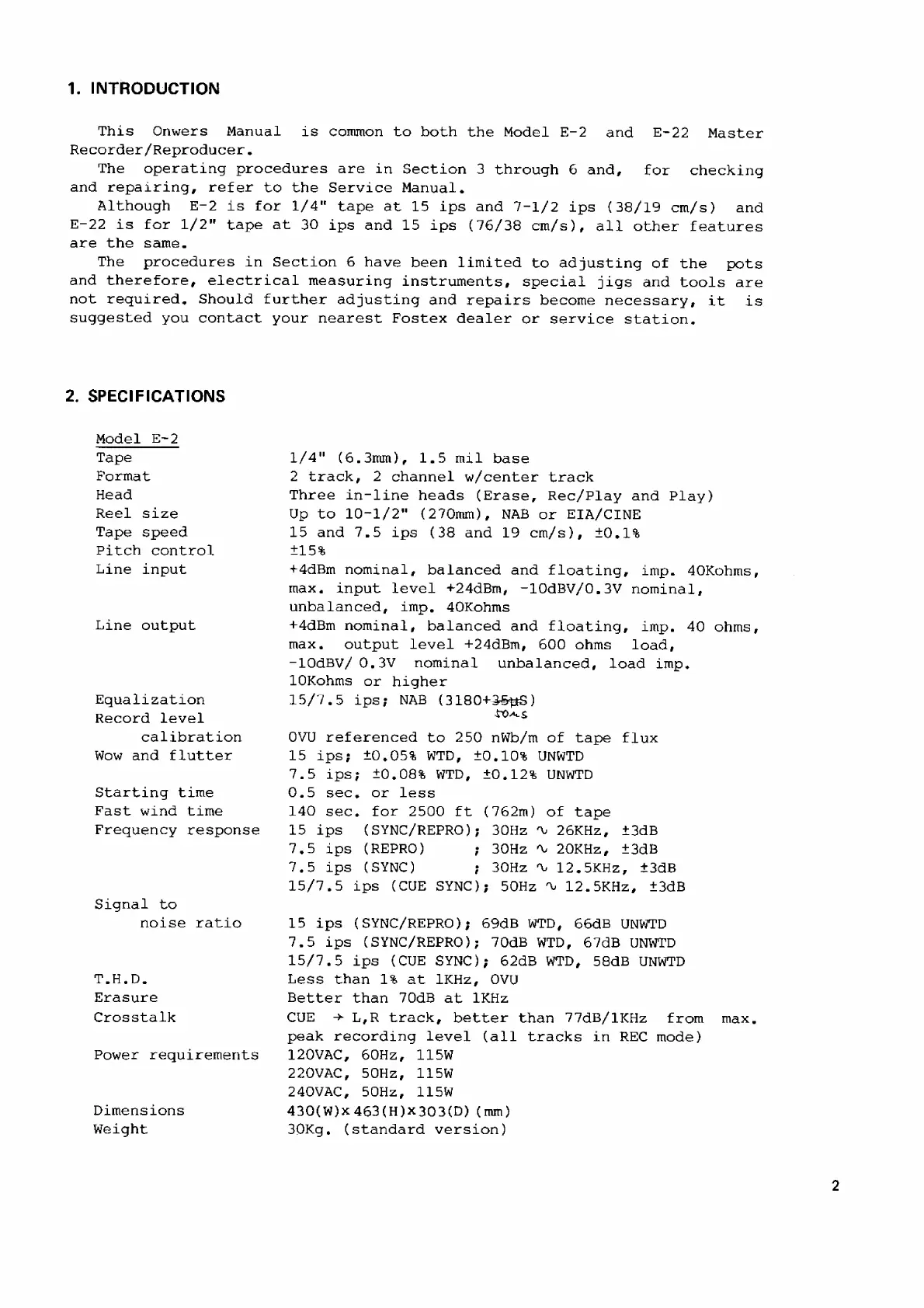

1. INTRODUCTION
This Onwers Manual is common to both the Model E-2 and E-22 Master
Recorder /Вергодисег.
The operating procedures are in Section 3 through 6 and, for
and repairing, refer to the Service Manual.
Although E-2 is for 1/4" tape at 15 ips and 7-1/2 ips (38/19 cm/s) and
E-22 is for 1/2" tape at 30 ips and 15 ips (76/38 cm/s), all other features
are the same.
The procedures in Section 6 have been limited to adjusting of the pots
and therefore, electrical measuring instruments, special jigs and tools are
not required, Should further adjusting and repairs become necessary, it is
suggested you contact your nearest Fostex dealer or service station.
checking
2. SPECIFICATIONS
Model Е-2
Tape
Format
Head
Reel size
Tape speed
Pitch control
Line input
Line output
Equalization
Record level
calibration
Wow and flutter
Starting time
Fast wind time
Frequency response
Signal to
noise ratio
T.H.D.
Erasure
Crosstalk
Power requirements
Dimensions
Weight
1/4" (6.3mm), 1.5 mil base
2 track, 2 channel w/center track
Three in-line heads (Erase, Rec/Play and Play)
Up to 10-1/2" (270mm), NAB or EIA/CINE
15 and 7.5 ips (38 and 19 cm/s), +0.1%
+15%
+4dBm nominal, balanced and floating, imp. 40Kohms,
max. input level +24dBm, -10dBV/0.3V nominal,
unbalanced, imp. 4OKohms
*4dBm nominal, balanced and floating, imp. 40 ohms,
мах. output level +24dBm, 600 ohms load,
-10dBV/ 0.3V nominal unbalanced, load imp.
10Kohms or higher
15/7.5 ips; NAB (3180+3595)
SOAS
OVU referenced to 250 nWb/m of tape flux
15 ips; +0.05% WTD, +0.10% UNWTD
7.5 ips; +0.08% WTD, +0.12% UNWTD
0.5 sec. or less
140 sec. for 2500 ft (762m) of tape
15 ips (SYNC/REPRO); 30Hz "v 26KHz, +3dB
7.5 ips (REPRO) ; 30Hz ^% 20KHz, +ЗАВ
7.5 ips (SYNC) ; 30Hz "v 12.5KHz, t3dB
15/7.5 ips (CUE SYNC); 50Hz ^% 12.5KHz, +3dB
15 ips (SYNC/REPRO); 69dB WTD, 66dB UNWTD
7.5 ips (SYNC/REPRO); 70dB WTD, 67dB UNWTD
15/7.5 ips (CUE SYNC); 62dB WTD, 58dB UNWTD
Less than 1% at 1KHz, OVU
Better than 70dB at 1KHz
CUE > L,R track, better than 77dB/1KHz from max.
peak recording level (all tracks in REC mode)
120VAC, 60Hz, 115W
220VAC, 50Hz, 115W
240VAC, 50Hz, 115W
430(W)x 463(H)X 303(D) (mm)
30Kg. (standard version)
