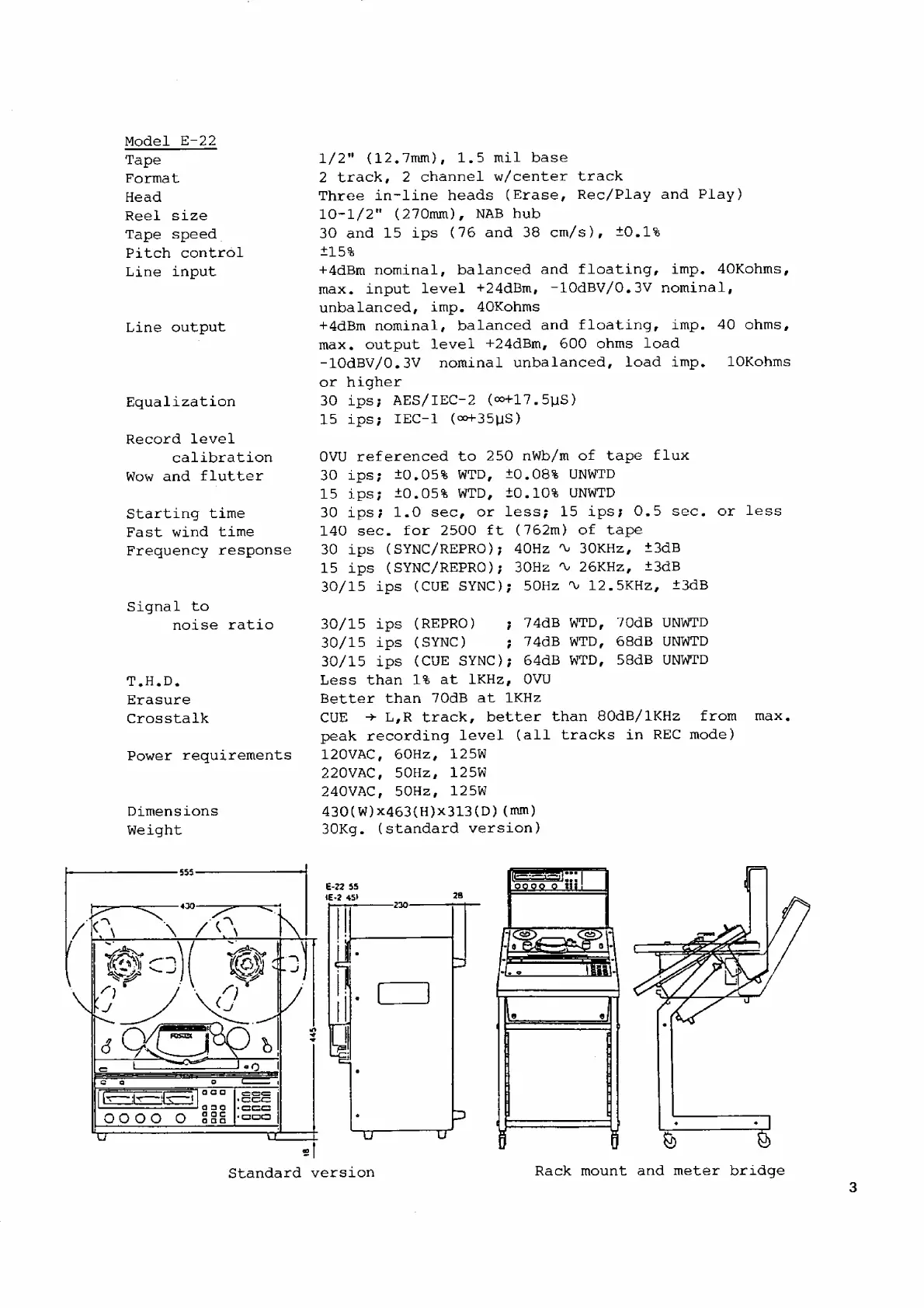

Моде1 Е-22
Таре
Format
Head
Reel size
Tape speed
Pitch control
Line input
Line output
Equalization
Record level
calibration
Wow and flutter
Starting time
Fast wind time
Frequency response
Signal to
noise ratio
T.H.D,
Erasure
Crosstalk
Power requirements
Dimensions
Weight
Standard version
1/2" (12.7mm), 1.5 mil base
2 track, 2 channel w/center track
Three in-line heads (Erase, Rec/Play and Play)
10-1/2" (270mm), NAB hub
30 and 15 ips (76 and 38 cm/s), +0.1%
+15%
+4 Ва nominal, balanced and floating, imp. 4OKohms,
max. input level +24dBm, -10dBV/0.3V nominal,
unbalanced, imp. 4OKohms
+4dBm nominal, balanced and floating, imp. 40 ohms,
пах. output level +24dBm, 600 ohms load
-10dBV/O.3V nominal unbalanced, load imp.
or higher
30 ips; AES/IEC-2 (%+17.5џ5)
15 ips; ТЕС-1 (9%+35}5)
lOKohms
OVU referenced to 250 nWb/m of tape flux
30 ips; +0,05% WTD, +0.08% UNWTD
15 ips; +0.05% WTD, +0.10% UNWID
30 ips: 1.0 sec, or less; 15 ips; 0.5 sec. or less
140 sec. for 2500 ft (762m) of tape
30 ips (SYNC/REPRO); 40Hz ^% 30KHz, *3dB
15 ips (SYNC/REPRO); 30Hz ^. 26KHz, t3dB
30/15 ips (CUE SYNC); 50Hz % 12.5KHz, t3dB
30/15 ips (REPRO) ; 74ав WTD, 7O0dB UNWTD
30/15 ips (SYNC) ; та4ав ито, 68dB UNWTD
30/15 ips (CUE SYNC); 64dB WTD, 58dB UNWTD
Less than 1% at lKHz, ОУП
Better than 7OdB at 1KHz
CUE > L,R track, better than 80dB/l1KHz from max.
peak recording level (all tracks in REC mode)
120VAC, 60Hz, 125W
220VAC, 50Hz, 125W
240VAC, 50Hz, 125W
430(W) X463(H)X313(D) (mm)
30Kg. (standard version)
Rack mount and meter bridge
