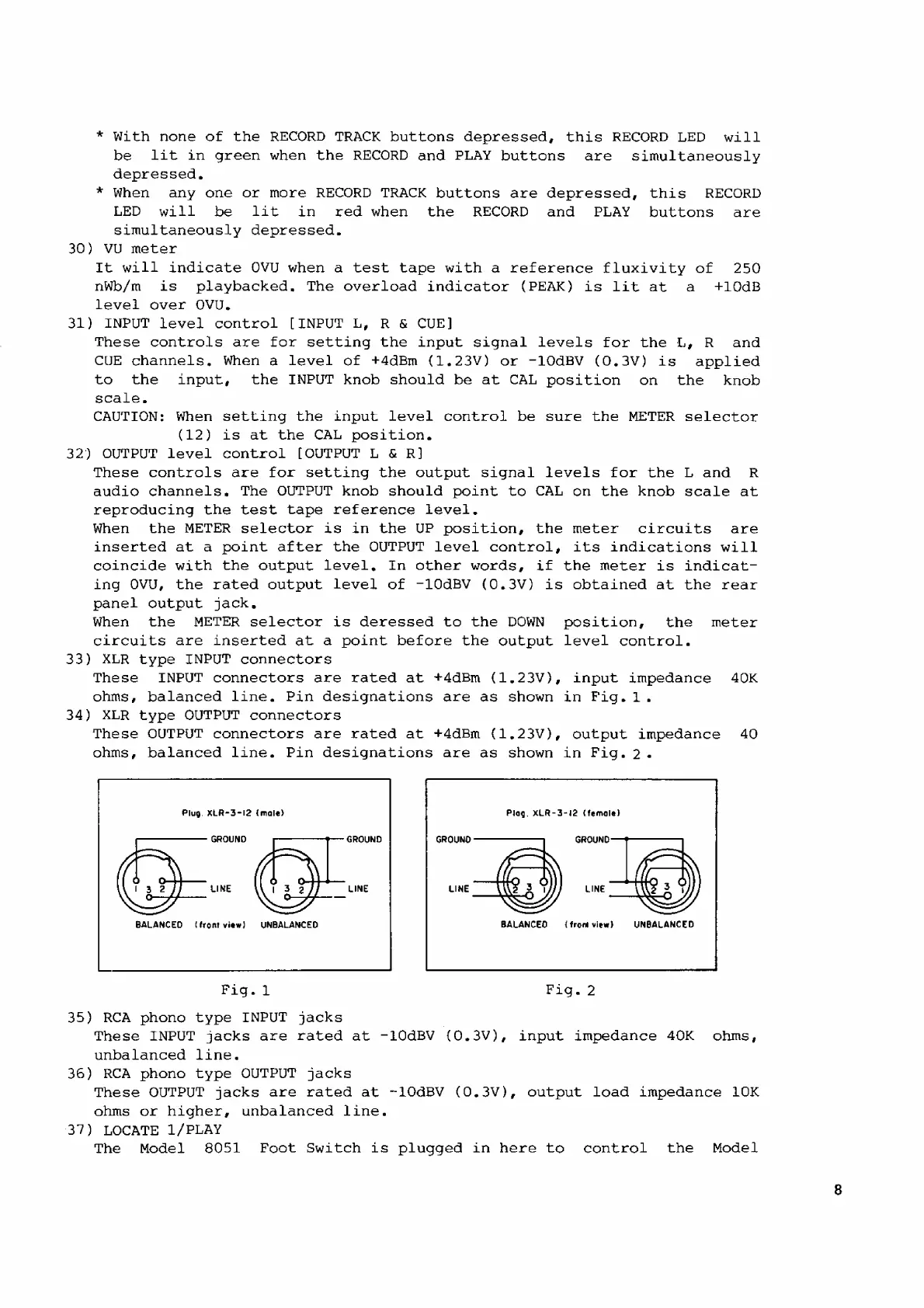

* With none of the RECORD TRACK buttons depressed, this RECORD LED will
be lit in green when the RECORD and PLAY buttons are simultaneously
depressed.
* When апу one or more RECORD TRACK buttons are depressed, this RECORD
LED will be lit in red when the RECORD and PLAY buttons are
simultaneously depressed.
30) VU meter
It will indicate OVU when a test tape with a reference fluxivity of 250
nWb/m is playbacked, The overload indicator (PEAK) is lit at a +10dB
level over OVU.
31) INPUT level control [INPUT L, R & CUE]
These controls are for setting the input signal levels for the L, R and
CUE channels. When a level of +4dBm (1.23V) or -10dBV (0,37) is applied
to the input, the INPUT knob should be at CAL position on the knob
scale.
CAUTION: When setting the input level control be sure the METER selector
(12) is at the CAL position.
32) OUTPUT level control [OUTPUT L & R]
These controls are for setting the output signal levels for the L and R
audio channels. The OUTPUT knob should point to CAL on the knob scale at
reproducing the test tape reference level.
When the METER selector is in the UP position, the meter circuits are
inserted at a point after the OUTPUT level control, its indications will
coincide with the output level, In other words, if the meter is indicat-
ing ОУП, the rated output level of -10dBV (0.3V) is obtained at the rear
panel output jack.
When the METER selector is deressed to the DOWN position, the meter
circuits are inserted at a point before the output level control.
33) XLR type INPUT connectors
These INPUT connectors are rated at +4dBm (1.23V), input impedance 40K
ohms, balanced line. Pin designations are as shown in Fig.1.
34) XLR type OUTPUT connectors
These OUTPUT connectors are rated at +4dBm (1.23V), output impedance 40
ohms, balanced line. Pin designations are as shown in Fig.2.
Plug. XLR-3-12 (male) Рад. XLR- 3-12 (female)
GROUND GROUND GROUND GROUND
LINE LINE LINE
BALANCED (ном view) UNBALANCED BALANCED = { from view) UNBALANCED
Fig. 1 Fig. 2
35) RCA phono type INPUT jacks |
These INPUT jacks are rated at -10dBV (0.37), input impedance 40K ohms,
unbalanced line.
36) RCA phono type OUTPUT jacks
These OUTPUT jacks are rated at -10dBV (0.3V), output load impedance 10K
ohms or higher, unbalanced line.
37) LOCATE 1/PLAY
The Model 8051 Foot Switch is plugged in here to control the Model
