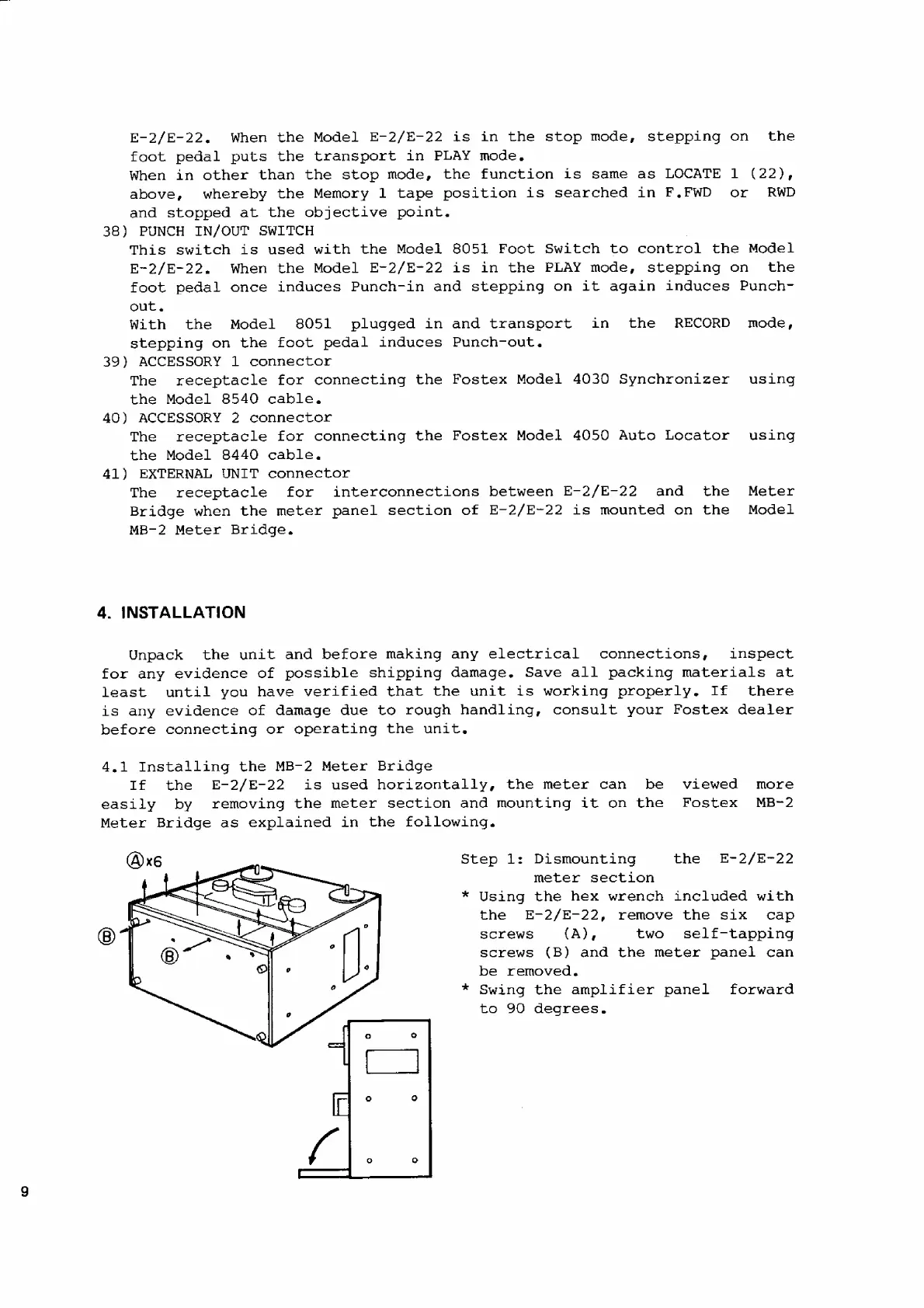

E-2/E-22.
When
the
Model
E-2/E-22
is
in
the
stop
mode,
stepping
on
the
foot
pedal
puts
the
transport
in
PLAY
mode.
When
in
other
than
the
stop
mode,
the
function
is
same
as
LOCATE
1
(22),
above,
whereby
the
Memory
1
tape
position
is
searched
in
F.FWD
ог
RWD
and
stopped
at
the
objective
point.
38)
PUNCH
IN/OUT
SWITCH
This
switch
is
used
with
the
Model
8051
Foot
Switch
to
control
the
Model
E-2/E-22.
When
the
Model
E-2/E-22
is
in
the
PLAY
mode,
stepping
on
the
foot
pedal
once
induces
Punch-in
and
stepping
on
it
again
induces
Punch-
out.
With
the
Model
8051
plugged
in
and
transport
in
the
RECORD
mode,
stepping
on
the
foot
pedal
induces
Punch-out.
39)
ACCESSORY
1
connector
The
receptacle
for
connecting
the
Fostex
Model
4030
Synchronizer
using
the
Model
8540
cable.
40)
ACCESSORY
2
connector
The
receptacle
for
connecting
the
Fostex
Model
4050
Auto
Locator
using
the
Model
8440
cable.
41)
EXTERNAL
UNIT
connector
The
receptacle
for
interconnections
between
E-2/E-22
and
the
Meter
Bridge
when
the
meter
panel
section
of
E-2/E-22
is
mounted
on
the
Model
MB-2
Meter
Bridge.
4.
INSTALLATION
Unpack
the
unit
and
before
making
any
electrical
connections,
inspect
for
any
evidence
of
possible
shipping
damage.
Save
all
packing
materials
at
least
until
you
have
verified
that
the
unit
is
working
properly.
If
there
is
any
evidence
of
damage
due
to
rough
handling,
consult
your
Fostex
dealer
before
connecting
or
operating
the
unit.
4.1
Installing
the
MB-2
Meter
Bridge
If
the
E-2/E-22
is
used
horizontally,
the
meter
can
be
viewed
more
easily
by
removing
the
meter
section
and
mounting
it
on
the
Fostex
MB~2
Meter
Bridge
as
explained
in
the
following.
Step
1:
Dismounting
the
Е-2/Е-22
meter
section
*
Using
the
hex
wrench
included
with
the
E-2/E-22,
remove
the
six
cap
screws
(A),
two
self-tapping
screws
(B)
and
the
meter
panel
can
be
removed.
*
Swing
the
amplifier
panel
forward
to
90
degrees.
