Fostex RM-3DT - Meter

5
English
Meter
Meter scale
[dB] –33 30 24 18 12 6 0 3 6 9
12
15 18+ OL
Input presence level indicator
Meter
Peak over level indicator
Analog BAL: +4 dBu or 0 dBu

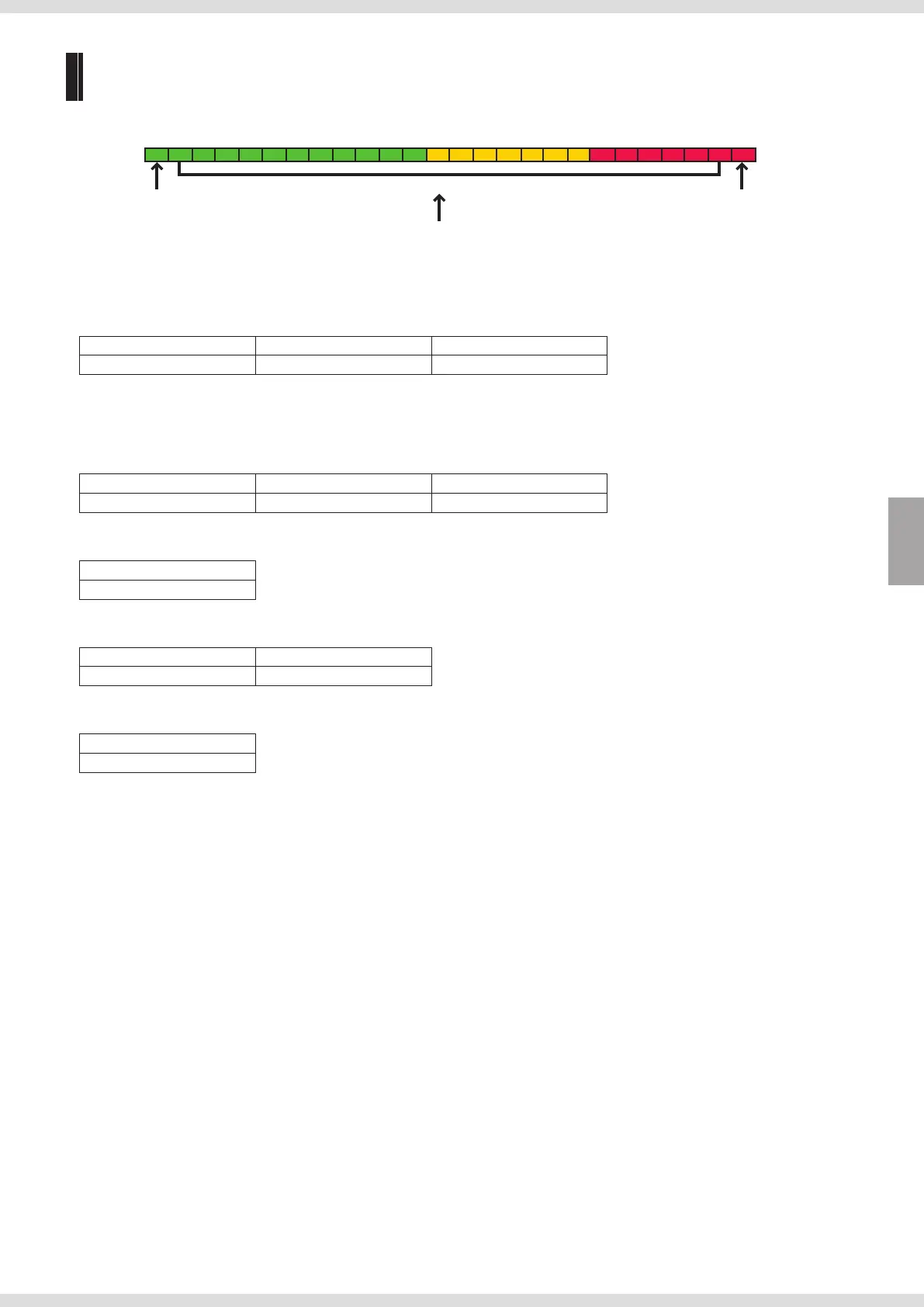

The meter scale has 26 dot LED consisting of a 24 dot level meter, an input presence level indicator and a peak over level indicator.
You can choose from four combinations of PEAK and VU to be displayed on the meter (“DIP switch settings” (

page 4)).
24 dot LED (VU meter, PEAK meter)
Scale Alignment Level Permitted Level
–33 to +18 @0 dB = standard @+9 dB
• Reference level
Reference level display position: 0 dB
You can choose the reference level from +4 dBu or 0 dBu for analog input using the DIP switches.
Peak meter specications
Attack Time Fall Time Peak hold time
0.1 msec 1.7 sec/20 dB 2.0 sec
VU meter specications
Attack/Fall Time
300 msec/@0 dB
Input presence level indicator
Presence level Presence hold time
@–46 dB 1.0 sec
Peak over level indicator
Peak over level
Reference level +20 dB
