Fostex VM04 - Technical Specifications

27
VM04 Owner’s manual

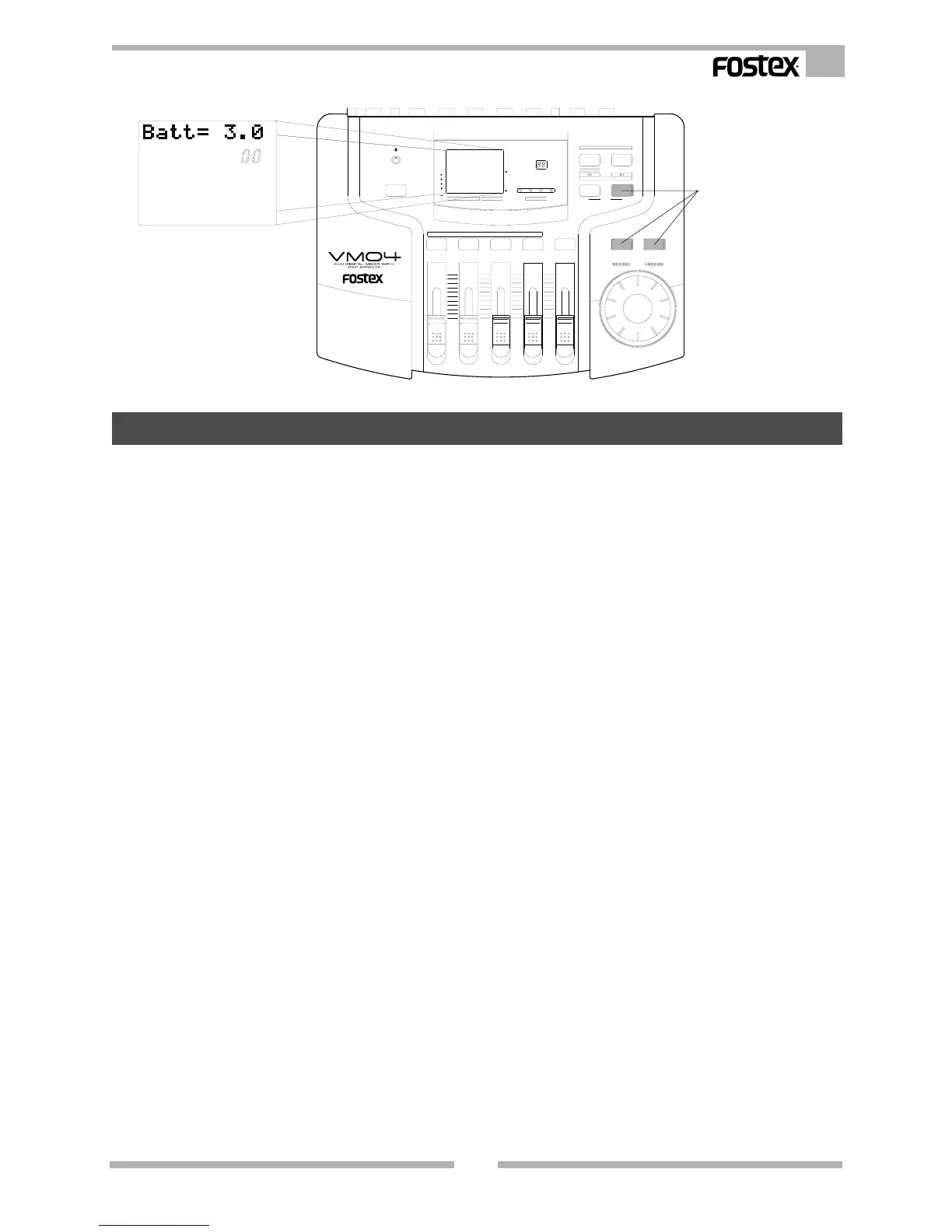

Press the EFFECT
PARAMETER key while
holding the EXIT key
and ENTER key.
<Mixer Section>
INPUT 1, 2
Connector: ø6 mm Phone Jack/Un-balanced
Input Impedance: 20kΩ or more
Input Level: -50dBV ~ -10dBV
INPUT 3, 4
Connector: ø6 mm Phone Jack/Un-balanced
Input Impedance: 20kΩ or more
Input Level: -10dBV
OUT PUT (L/R)
Connector: ø6 mm Phone Jack/Un-balanced
Load Impedance: 10kΩ or more
Output Level: -10dBV
PHONES OUT
Connector: ø6 mm Stereo Phone Jack
Load Impedance: 16Ω or more
Output Level: 100 mW MAX (at 32Ωload)
S/P DIF OUT
Connector: Optical
Format: IEC 60958 (S/P DIF)
FOOT SWITCH
Connector: ø6 mm Phone Jack
<OTHERS>
EQUALIZER
HI (Shelving Type): 10kHz, +/-18dB
LO (Shelving Type): 100Hz, +/-18dB
FREQUENCY RESPONCE
: 20Hz ~ 20kHz (TYPICAL)
Specifications
DYNAMIC RANGE
: 90dB (TYPICAL)
A/D converter
: 20bit, 64 times Over Sampling Enhanced Dual
Bit, Delta-Sigma
D/A converter
: 20bit 128-time, Over Sampling, Delta-Sigma
SAMPLING FREQUENCY
: 44.1kHz
DIGITAL OUTPUT
: 44.1kHz/16 bit linear
TOTAL HARMONIC DISTORTION
: 0.01% (TYPICAL)
CROSSTALK
: 70dB or more @1kHz
<GENERAL>
DC IN
: DC9V, 650 mA (the Center Positive), AD-9B
DIMENSIONS
: 254 (W) x 50 (H) x 186 (D) mm
WEIGHT
: Approx. 1.1 kg
* Specifications and appearance are subject to change
without notice for product improvement.
