Foundations trio - Arm Bar and Canopy Operation

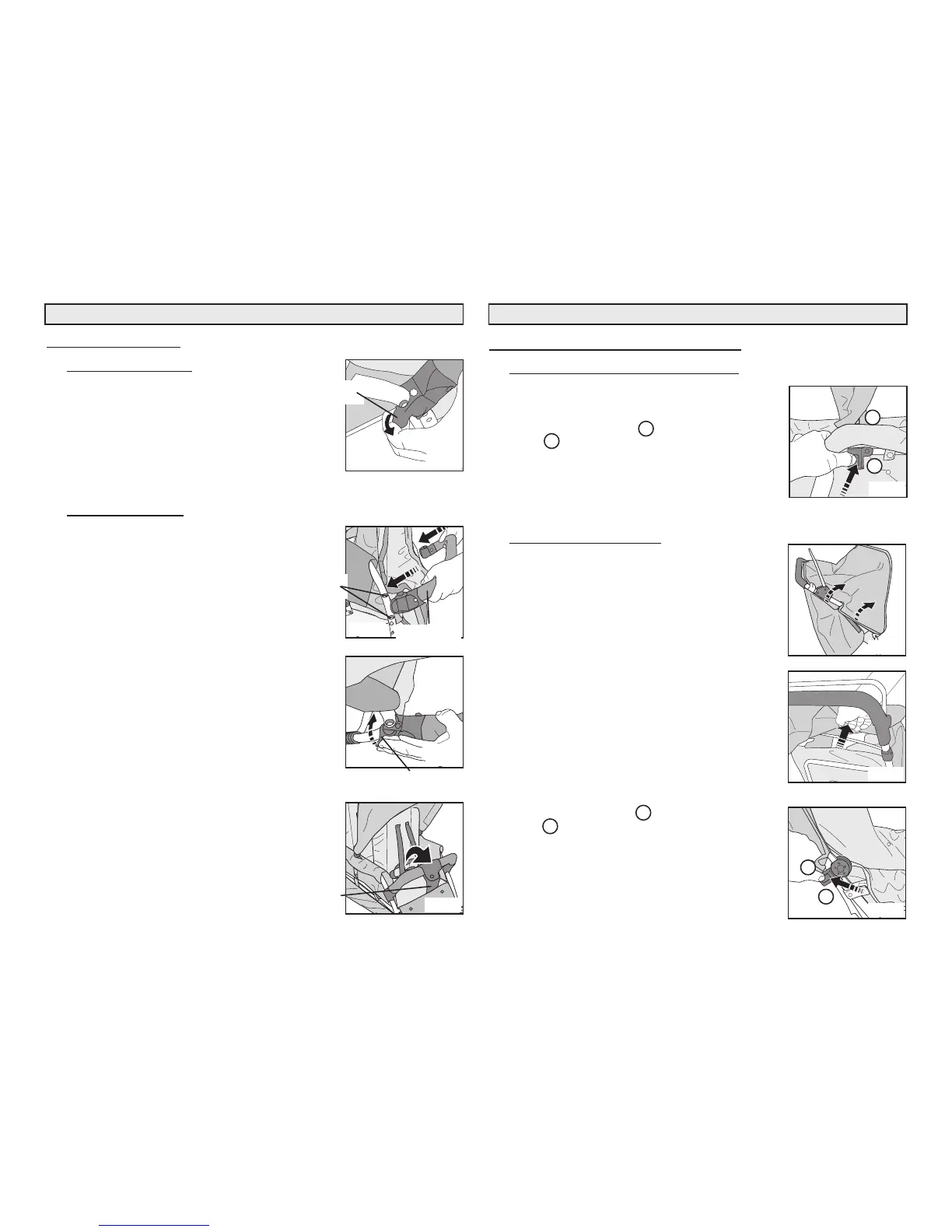

Arm Bar Operation:
To remove arm bar:
1. Unfasten snap on front passive crotch
strap.
2. Pull arm bar clamp out away from stroller to
unlock arm bar from stroller frame (Fig. 1).
3. Push down and pull out on arm bar to remove
it from stroller frame.
To attach arm bar:
1. Unfold stroller (see Folding and Unfolding
Stroller section).
2. With Foundations
®
logo up, position
Arm Bar Assembly onto front leg tubes
between arm bar stops and snap onto
front leg on both sides (Fig. 1).
3. Lock Arm Bar to stroller frame by pushing
Arm Bar Clamp in toward stroller (Fig. 2).
4. Repeat step 3 for opposite end of Arm Bar.
5. Place Passive Crotch Strap in center of
Arm Bar and secure snap (Fig. 3).
Stroller Operation & Use (continued)
Fig. 1
Arm Bar
Clamp
Fig. 2
Passive
Crotch
Strap
Fig. 3
Arm Bar
Clamp
Arm Bar
Assembly
Fig. 1
Arm Bar
Stop
11
Stroller Operation & Use (continued)
Front And Middle Canopy Operation:
To remove front and middle canopy:
1. Unsnap and lift fabric arm rest cover in the
area of the canopy to be removed.
2. Press retainer tab in and lift canopy frame
up on one side of stroller (Fig. 1).
3. Repeat steps 1 and 2 for other side of canopy.
See “Front and Middle Canopy Assembly”
section to attach front and middle canopy.
To remove rear canopy:
1. Disconnect 2 velcro flaps on each side of
the handle (Fig. 1).
2. Pull back of canopy out of stroller handle
(Fig. 2) .
3. Press retainer tab in and lift canopy frame
up on one side of stroller (Fig. 3).
4. Repeat step 3 for other side of stroller.
See “Rear Canopy Assembly” section to
attach rear canopy.
Fig. 1
1
2
1
2
1
2
Fig. 1
Fig. 2
Fig. 3
1
2
12
