Fourgroup DUPLEX-UP - Electrical Connection DUPLEX-UP-T

9
DANGER
RISK OF ELECTRIC
SHOCK
DANGER
WARNING

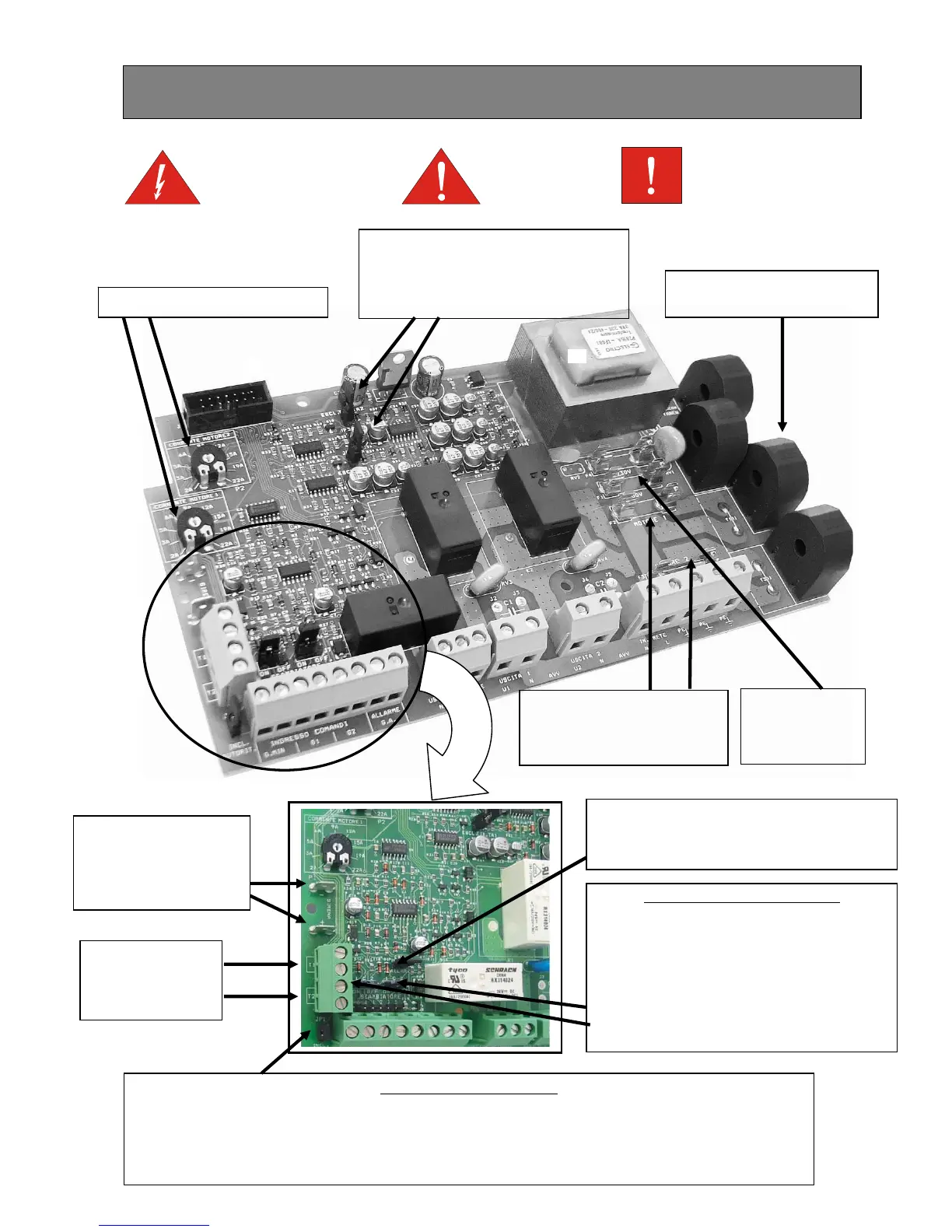

7a. ELECTRICAL CONNECTION DUPLEX-UP-T
OVERLOAD TRIMMERS
AMPEROMETRIC
TRANSFORMERS
MOTOR COMMAND
LINE PROTECTION
FUSES
-
MOTORE 1 -
MOTORE 2
AMPEROMETRIC PROTECTION CUT-
IN DELAY TIME OVERRIDE JUMPERS
- WITH JUMPER CONNECTED:
DELAY
O
VERRIDDEN
PRIMARY LINE
PROTECTION
FUSE
(
400
V
)
PUMPS EXCHANGER JUMPERS
-WITH JUMPER IN “ ON “POSITION
PUMPS EXCHANGE IS ACTIVES
-WITH JUMPER IN “ OFF “POSITION :
PUMPS EXCHANGE IS NOT ACTIVES;
G1 IS ONLY THE FLOAT SWITCH FOR PUMP 1
G2 IS ONLY THE FLOAT SWICTH FOR PUMP 2
JP1 : JUMPER AUTORIT.
- WITH JUMPER CONNECTED: AUTORITENUTA IS ACTIVE (G.MIN IS USED AS STOP LEVEL FLOAT)
- WITH JUMPER DISCONNECTED: AUTORITENUTA IS NOT ACTIVE
( G.MIN IS USED AS MINIMUM LEVEL FLOAT ).
SENSORS ALARM OVERRIDE JUMPER
- WITH JUMPER CONNECTED:
ALARMS ACTIVE ( LED ON)
N° 2 CONNECTORS
FOR ALARM SIREN
12Vcc MAX 30 mA
CLICSON MOTOR
PROTECTION
CONNECTIONS
(T1, T2)
