Chapter 3 BIOS Description
35
v IDE HDD Block Mode
This option is used to set whether the IDE HDD block mode is allowed.
vIDE DMA transfer access
This option is used to set the IDE transfer access—with it set to Enabled, the
IDE Transfer Access uses the DMA mode; with it set to Disabled, the IDE
Transfer Access uses the PIO mode.
vOn-Chip Primary PCI IDE
Use this item to enable or disable the Primary PCI IDE channel that is inte-
grated on the motherboard.
vIDE Primary Master/Slave PIO
These two items allow you assign which kind of PIO(Programmed Input/
Output) is used by IDE devices. Choose Auto to let the system auto detect
which PIO mode is best or select a PIO mode from 0-4.
vIDE Primary Master/Slave UDMA
UltraDMA technology provides faster access to IDE devices. If you install a
device that supports UltraDMA ,change the appropriate item on this list to
Auto.The available setting values are : Disabled and Auto.
vOn-Chip Secondary PCI IDE
Use this item to enable or disable the Secondary PCI IDE channel that is in-
tegrated on the motherboard.
vIDE Secondary Master/Slave PIO
These two items allow you assign which kind of PIO(Programmed Input/
Output) is used by IDE devices. Choose Auto to let the system auto detect
which PIO mode is best or select a PIO mode from 0-4.

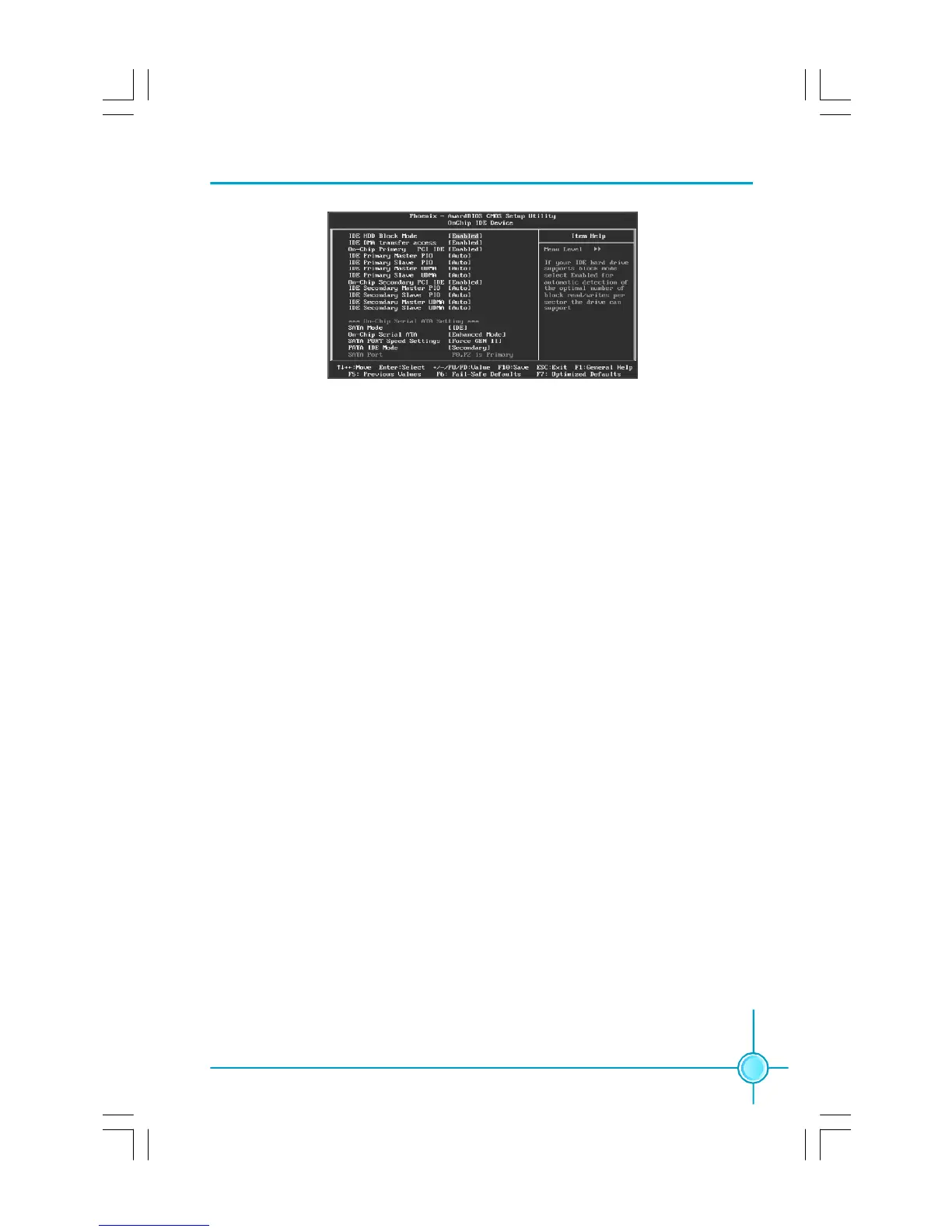

OnChip IDE Device Menu
