Foxconn H55MX-S Series User Manual

1
5

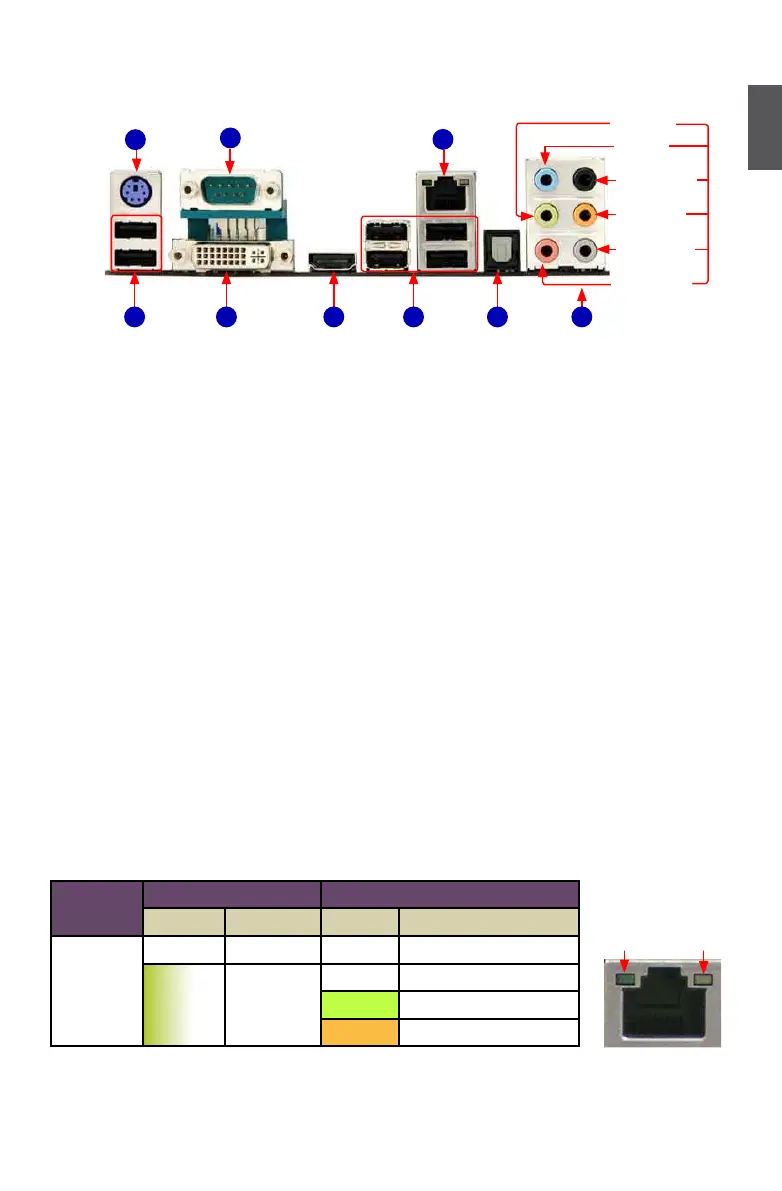

1-3 Back Panel Connectors
1. PS/2 Port
Use the PS/2 port to connect a PS/2 mouse or keyboard.
2. USB Ports
The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as an
USB keyboard/mouse, USB printer, USB ash drive and etc.
3. Serial Port
This is output of RS232 COM1 port.
4. DVI-I Port
The DVI-I port supports DVI-I specication. Connect a monitor that supports VGA or DVI-D con-
nection to this port.
5. HDMI Port
The HDMI (High-Denition Multimedia Interface) provides an all-digital audio/video interface
to transmit the uncompressed audio/video signals and is HDCP compliant. Connect the HDMI
audio/video device to this port. The HDMI Technology can support a maximum resolution of
1920x1080p but the actual resolutions supported depend on the monitor being used.
6. Optical S/PDIF Out Port
This port provides digital audio out to an external audio system that supports digital optical
audio.
7. RJ-45 LAN Port
The Ethernet LAN port provides Internet connection at up to 10/100/1000Mb/s data rate.
LAN Type
Left: Active Right: Link
Status Description Status Description
1000M
Off No Link Off No Link
Green
Blinking
Data
Activity
Off 10Mb/s Connection
Green 100Mb/s Connection
Orange 1000Mb/s Connection
Active
LED
Link
LED
Optical S/PDIF
Out Port
LAN Port
PS/2 Port
Audio Ports
Line Out
Microphone In
Subwoofer
Rear Speaker
Side Speaker
Line In
3
1
Serial Port
7
8
USB Ports
622 4 5
USB PortsDVI-I Port HDMI Port
