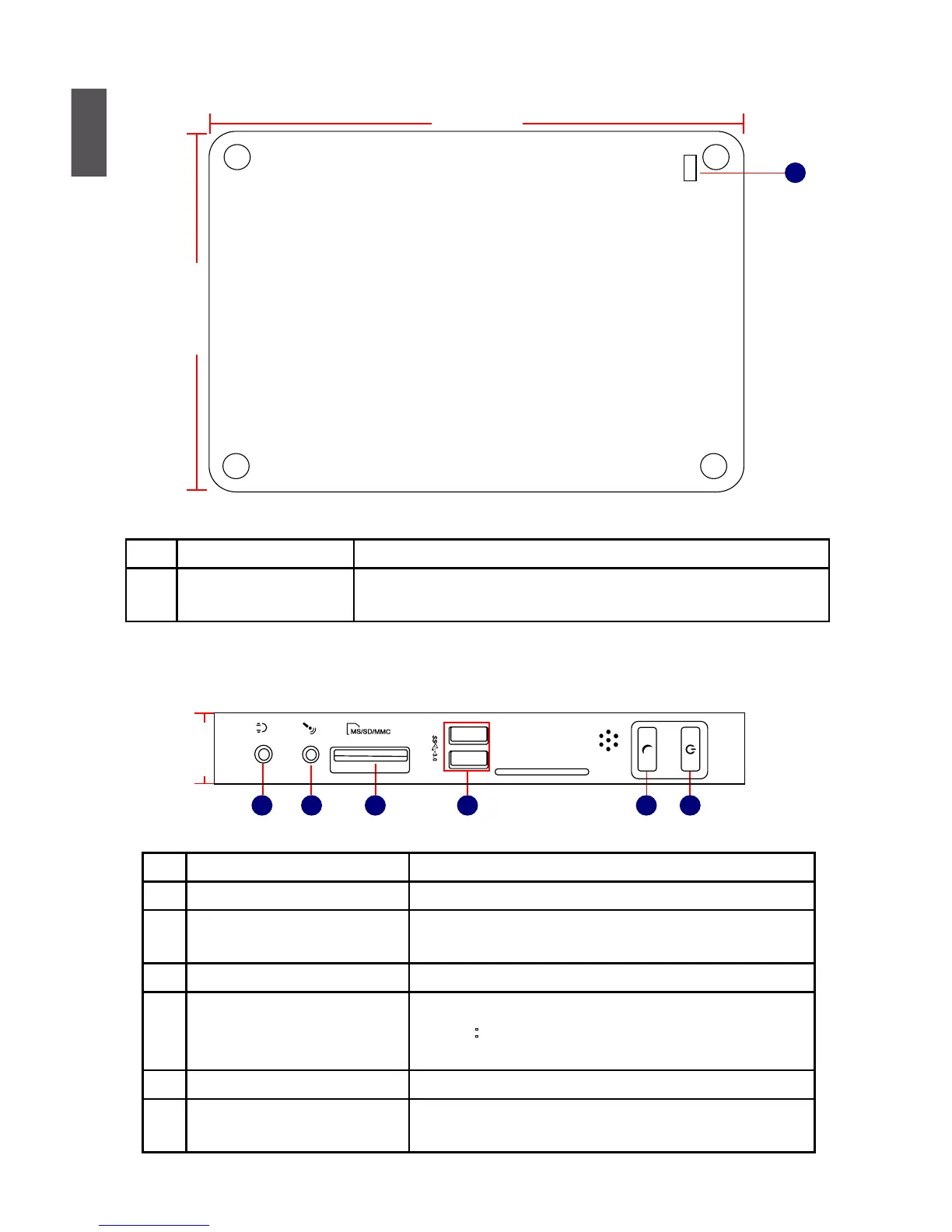

1-1 Top View
No. Name Description
1 Headphone Port Connects to a headphone
2
Microphone In and S/PDIF In
Port
Connects to a microphone or playback devices with
optical connectors(3.5mm jack)
3 Multi-Function Card Reader Support SD/SDHC/MS/MS Pro/MMC memory cards
4 USB 3.0 Ports Connect to USB devices
Caution:Before using it, you need to install the “AS-
Media USB3.0 driver” in the Driver CD.
5 Suspend Button Enter suspend mode in operating system
6 Power Button with
Integrated LED Indicator
Turning the power on/off, Indicates system statesIndicates system states
24mm
1
2
3 64 5
No. Name Description
1 Kensington Lock Attach a Kensington security system or a compatible lock to
secure your Nettop
190mm
135mm
1
1-2 Front Side View
To Next Page
