1-2 Layout

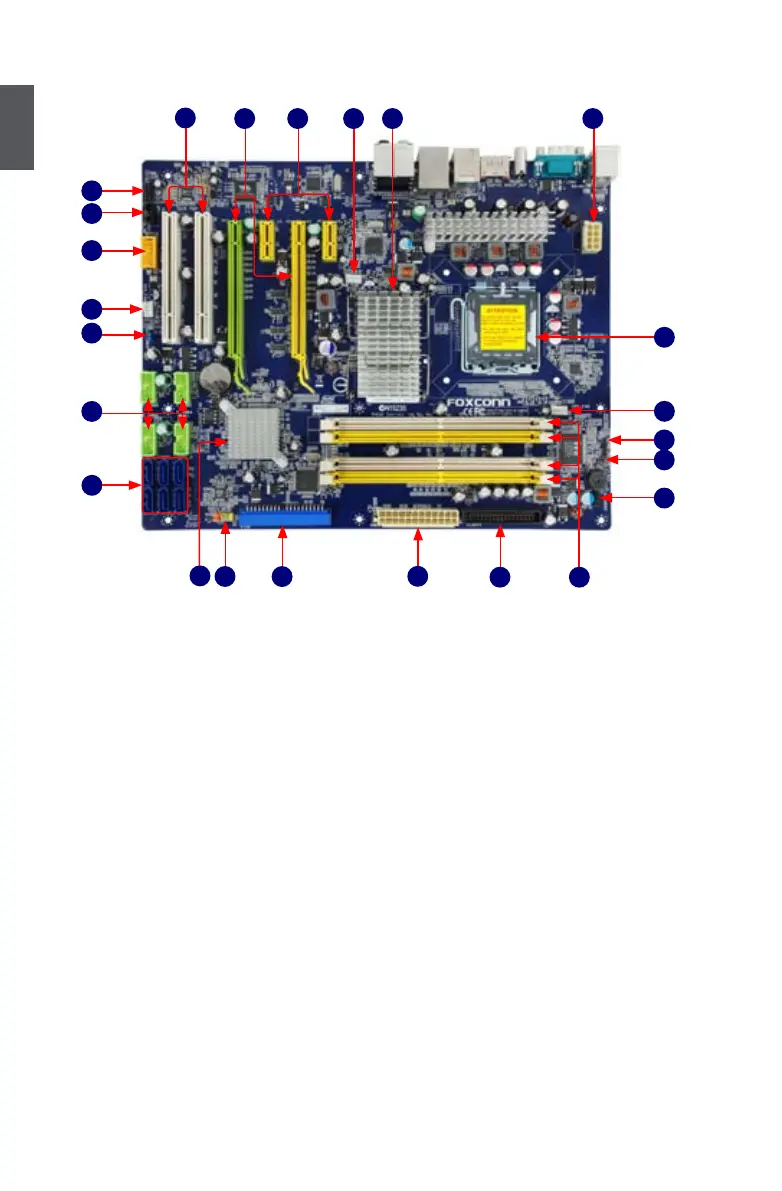

Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1. 8-pin ATX 12V Power Connector
2. North Bridge: Intel
®
P45
3. NB_FAN Header
4. PCI Express x1 Slots
5. PCI Express x16 Slots
6. PCI Slots
7. Front Audio Connector
8. CD_IN Connector
9. 1394a Connector(P45A-S)
10. SYS_FAN Header
11. Clear CMOS Jumper
12. Front USB Connectors
13. SATA Connectors
14. South Bridge: Intel
®
ICH10R(P45A-S)
Intel
®
ICH10(P45A)
15. Front Panel Connector
16. IDE Connector
17. 24-pin ATX Power Connector
18. Floppy Connector
19. DDR2 DIMM Slots
20. Speaker Connector
21. Chassis Intrusion Alarm Header
22. IrDA Connector
23. CPU_FAN Header
24. LGA 775 CPU Socket
1
7
11
8
13
16
2
15
9
17
18
12
10
24
34
6
5
14
21
20
19
22
23
