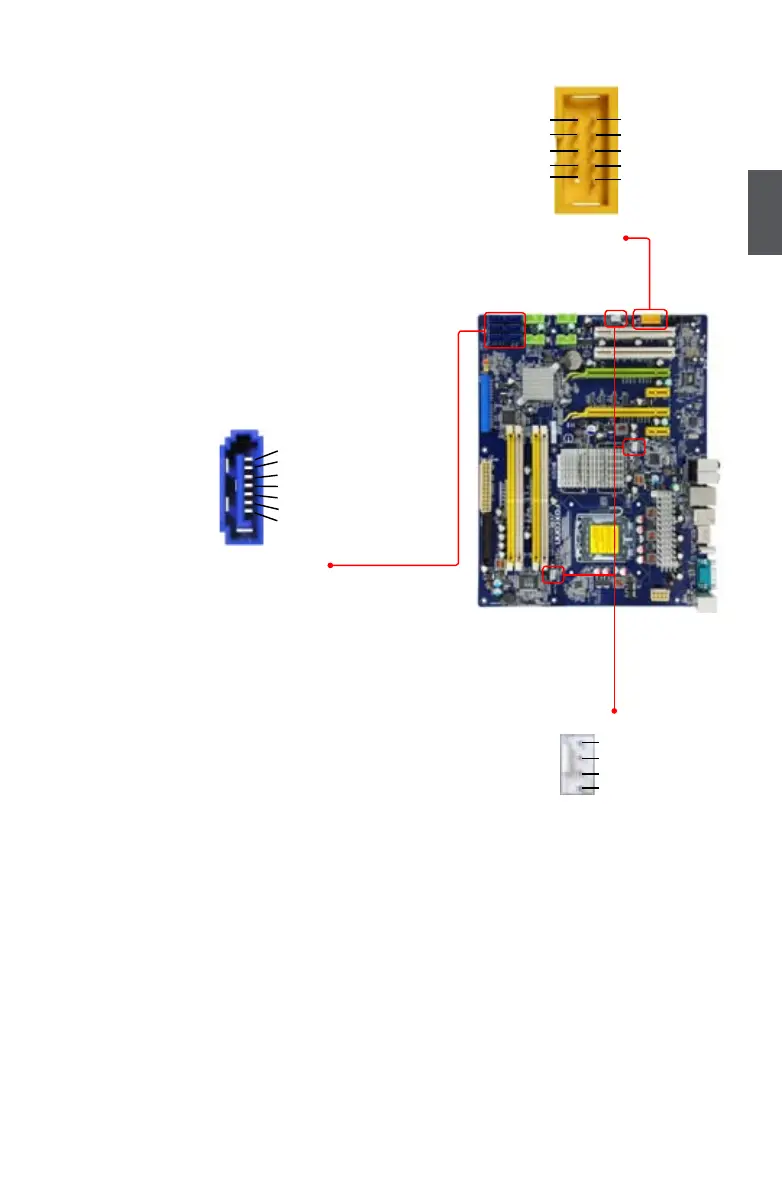

1394a Connector : F_1394 (P45A-S)
The 1394a expansion cable can be connected to either
the front (provided that the front panel of your chassis
is equipped with the appropriate interface) or real panel
of the chassis.
Serial ATA Connectors : SATA_1/2/3/4/5/6
The Serial ATA connector is used to connect with SATA
Hard Disk or CD devices which support this feature.
The current Serial ATA II interface allows up to 300MB/s
data transfer rate.
Fan Connectors : CPU_FAN, SYS_FAN,
NB_FAN
There are three main fan headers on this motherboard.
The fan speed can be controlled and monitored in “PC
Health Status” section of the BIOS Setup. These fans
can be automatically turned off after the system enters
S3, S4 and S5 sleeping states.
CPU_FAN/ SYS_FAN/ NB_FAN
GND
POWER
SENSE
CONTROL
1
GND
+12V
TPA-
TPB-
GND
TPB+
+12V
GND
TPA+
EMPTY
1
2
10
9
F_1394
SATA_1/2/3/4/5/6
GND
TX+
TX-
GND
RX-
RX+
GND
1
