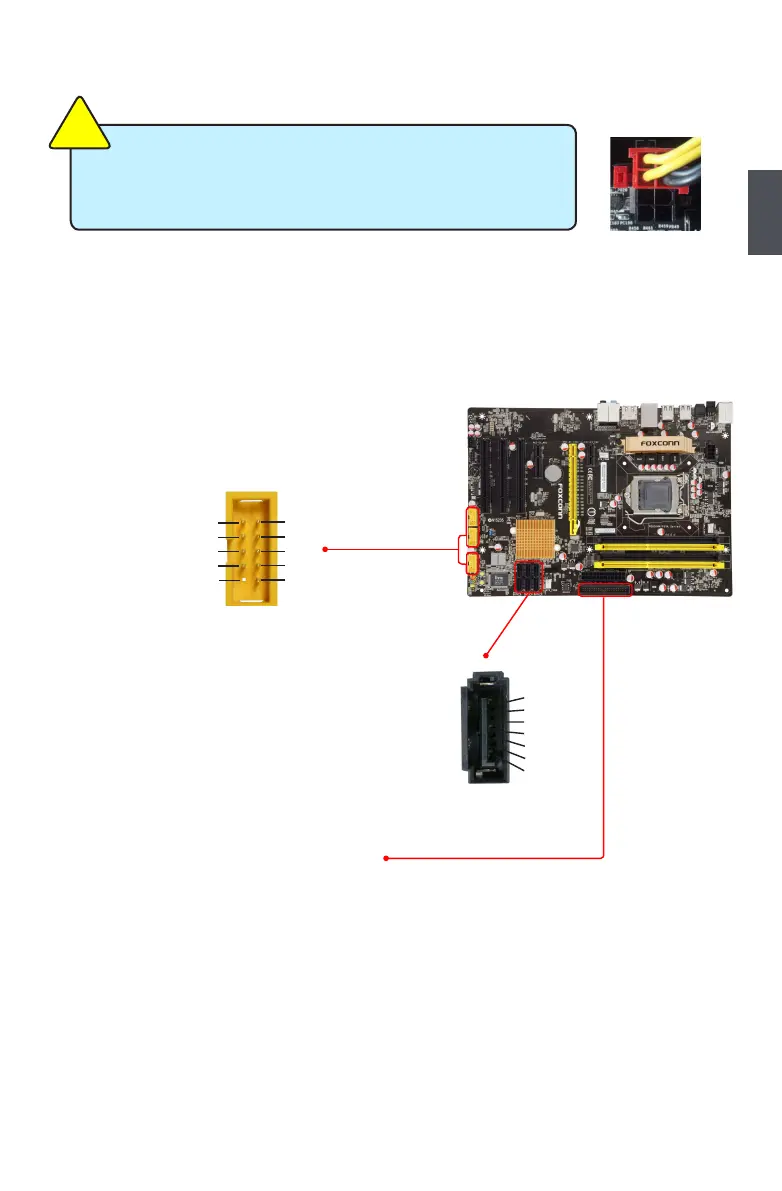

USB Connectors : F_USB1/2/3
In addition to the eight USB ports on the rear panel,
this product also provides three 10-pin USB head-
ers on its motherboard. By connecting through USB
cables with them, user can quickly expand another
six USB ports on the front panel.
Serial ATA Connectors : SATA_1/2/3/4/5/6
The Serial ATA connector is used to connect with
SATA Hard Disk or CD devices which support this
feature. The current Serial ATA II interface allows up
to 300MB/s data transfer rate.
IDE Connector : PIDE(Only for P55A-S)
With the provided Ultra DMA IDE ribbon cable, you
can connect to any IDE type of hard disk and CD/
DVD ROM/RW drive.
We recommend you using an 8-pin ATX 12V power supply. If
you are using a 4-pin power supply, you need to align the ATX
power connector according to the picture on the right.
C
A
U
T
IO
N
!
Connect a 4-pin
power plug
1 2
109
NC
GND
VCC
D+
D-
D+
GND
D-
VCC
EMPTY
F_USB 1/2/3
SATA_1/2/3/4/5/6
GND
TX+
TX-
GND
RX-
RX+
GND
1
