Chapter 1 Product Introduction
Rear I/O Ports

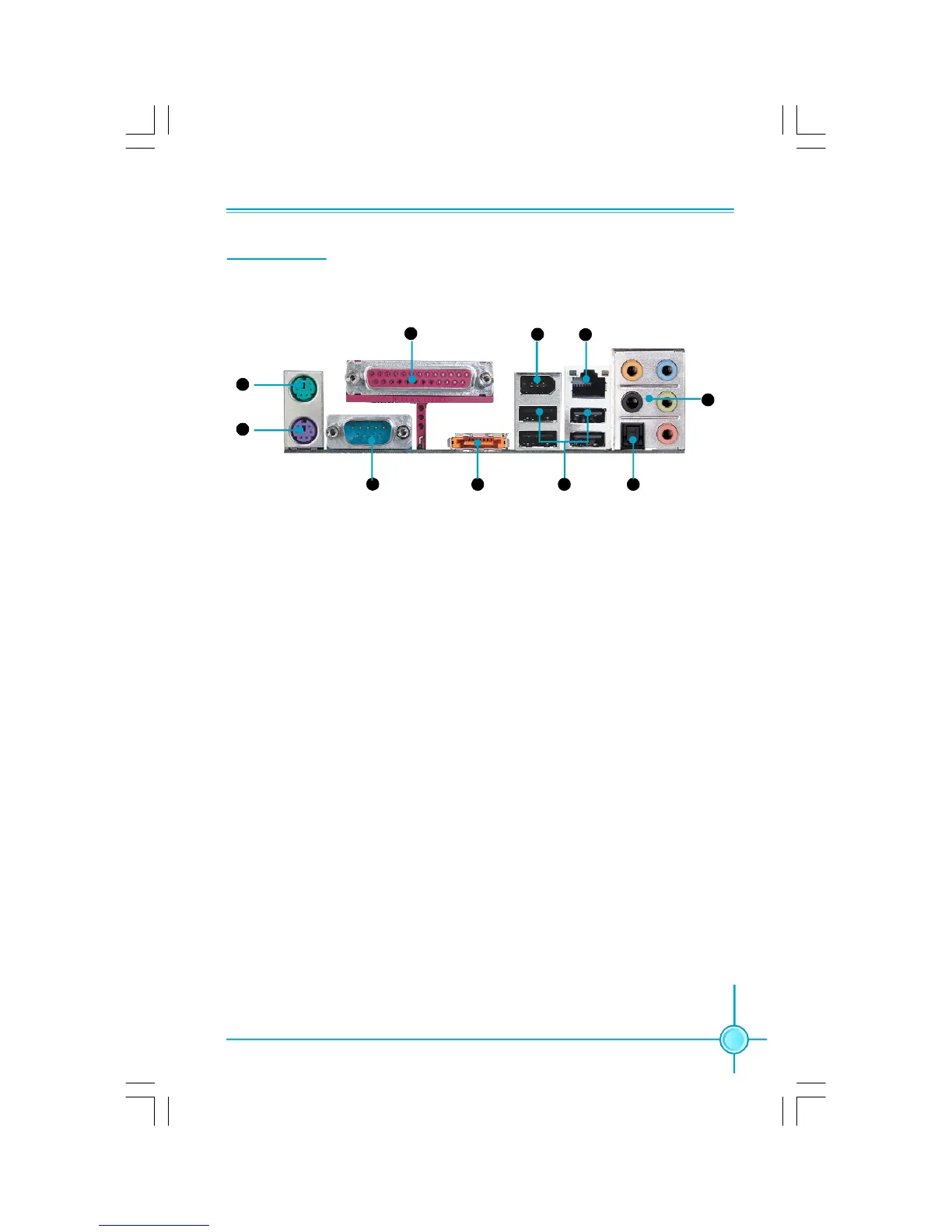

This motherboard provides the ports as below:
1. PS/2 Mouse Port
This port is used to connect a PS/2 mouse.
2. PS/2 Keyboard Port
This port is used to connect a PS/2 keyboard.
3. Serial Port
This motherboard provides a serial COM1 connector for your machine.
4. External SATA Port
This port is used to connect an external SATA box or a Serial ATA port multiplier
and enables smart setup and hot-plug function.
5. USB 2.0Ports
These four Universal Serial Bus(USB)ports are avaliable for connecting USB2.0/
1.1 devices.
1
2
3
3
54 6
7
10
9
8
6. Optical S/PDIF Out Port
This port is used to connect an external audio output device via a Optical S/PDIF
cable.
