Foxconn P9657AA User Manual

Chapter 3 BIOS Description
26
vDRAM Timing Selectable
This item determines DRAM clock/ timing using SPD or manual configuration.
The available setting values are: By SPD and Manual.
vCAS Latency Time
This item determines CAS Latency. The available setting values are: 3, 4, 5, 6
and Auto.
vDRAM RAS# to CAS# Delay
This item allows you to select a delay time between the CAS and RAS strobe
signals. The available setting values are: 6, 5, 4, 3, 2, and Auto.
vDRAM RAS# Precharge
This item allows you to select the DRAM RAS# precharge time. The available
setting values are: 6, 5, 4, 3, 2, and Auto.
vPrecharge delay(tRAS)
This item allows you to set the precharge delay time. The available setting
values are: Auto, 4 - 15.
vMemlock index value (Mhz)
This item allows you to set memory clock index value.

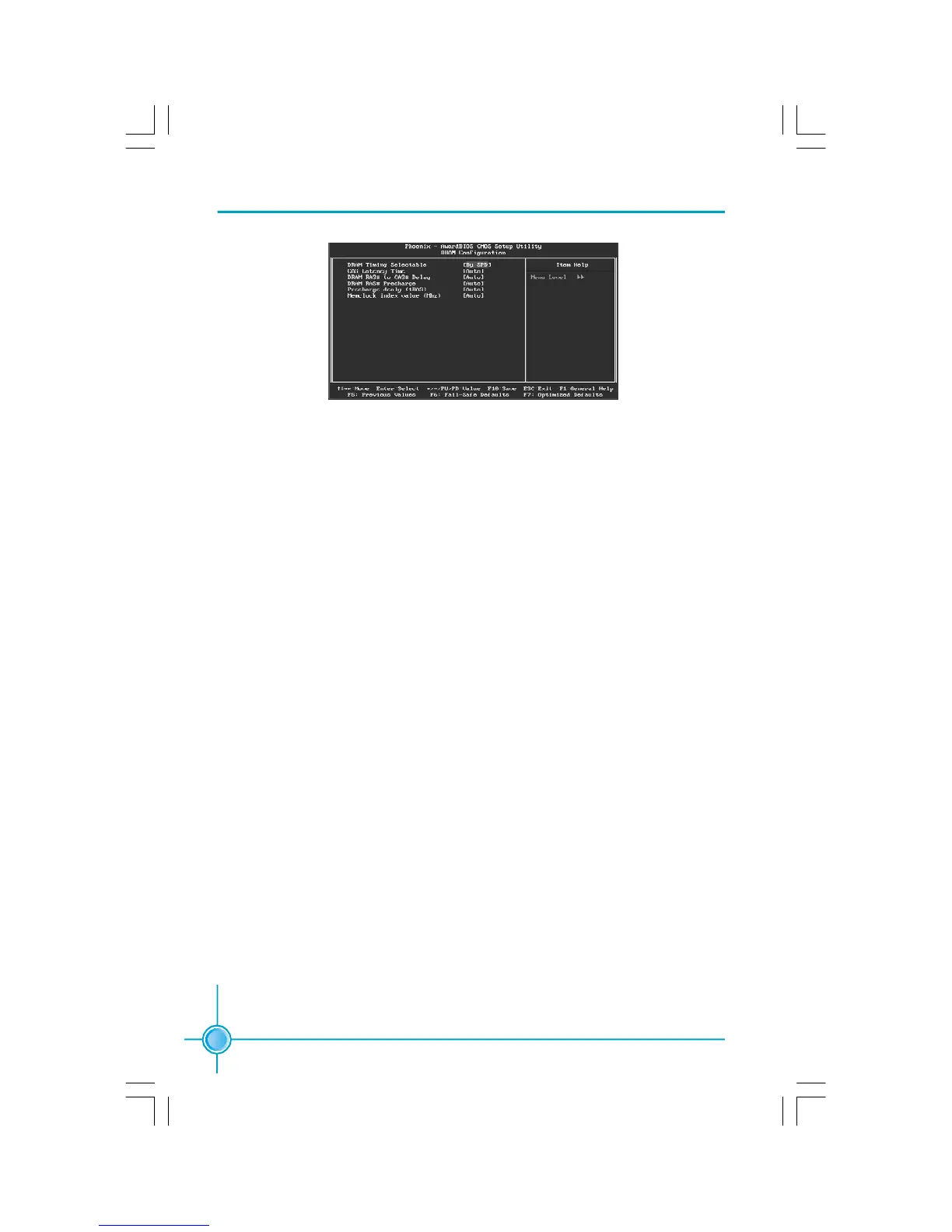

DRAM Configuration Menu
