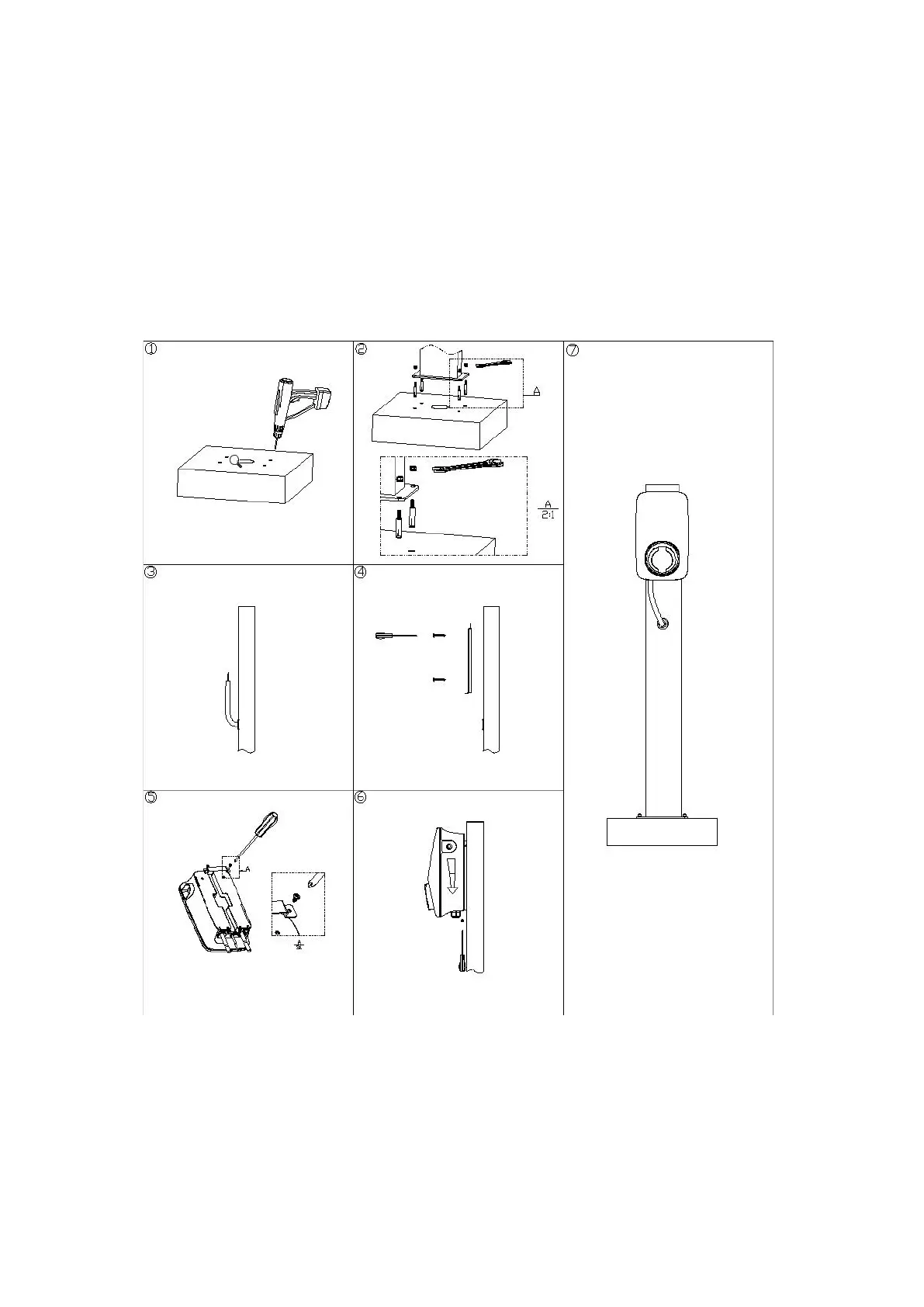

• Floor type / Vertical installation method:
1. Drill holes on the cement floor，four 165 * 95 holes with diameter φ 10mm deep 50mm
screws and one φ 60mm through duct hole.
2. Install and fix the anchor screws.
3. The input line runs through the column hole through the bottom of the column.
4. Install the backplane is fixed to the landing column with screws.
5. Attach the bracket to the charger.
6. Hang the charger into the mounting back plate and screw it well.
7. Installation completed.
Note: The angle of cement ground 90°±15
