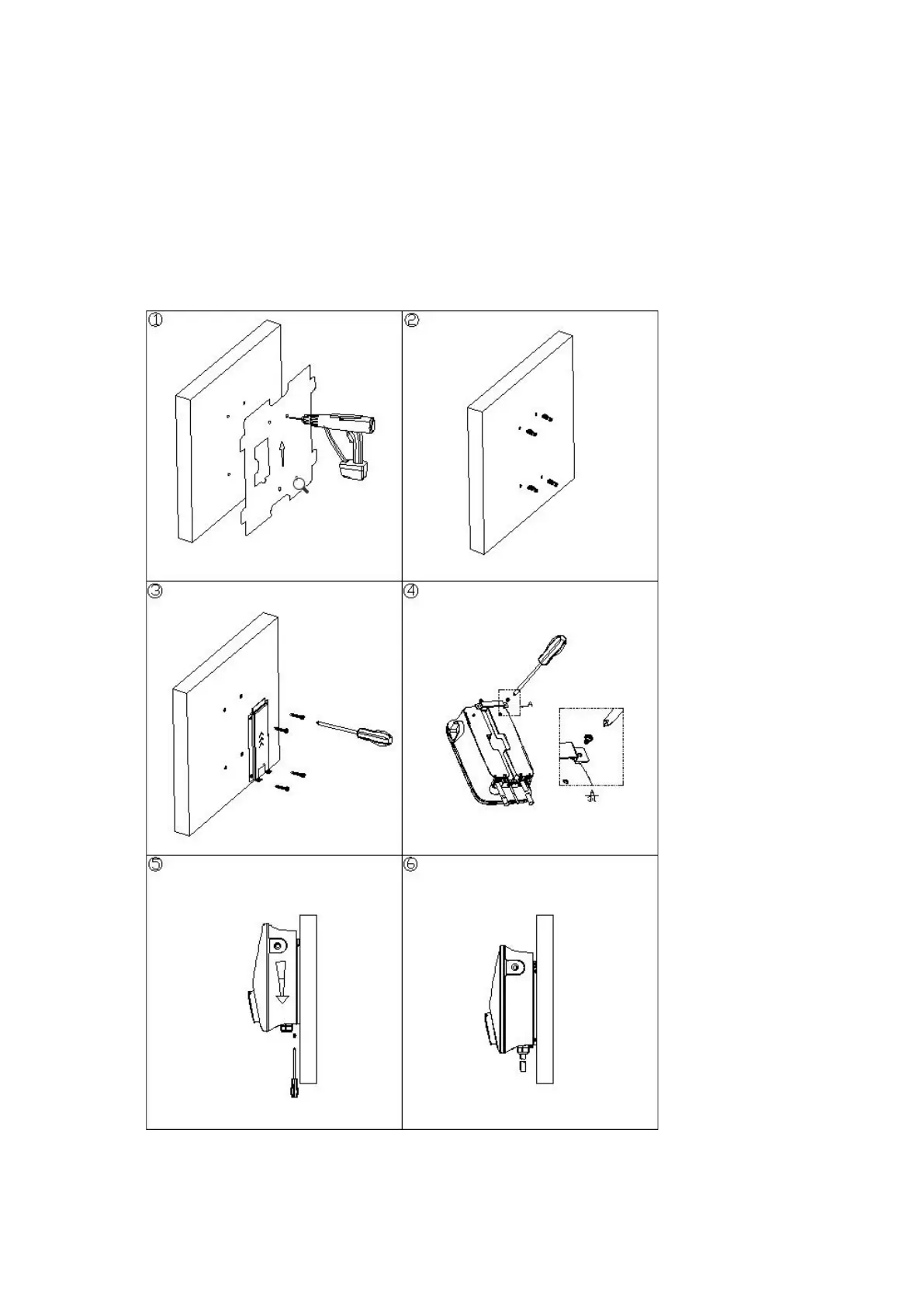

• Wall-mounted installation method:
1. Open the package and mark 4 holes in the wall (φ 8 * 50mm).
2. Fit into the expansion tube.
3. Attach the mounting backplane with screws to the mounting wall.
4. Attach the bracket to the charger.
5. Hang the charger into the mounting back plate and screw it.
6. Installation completed.
Note: Installation wall angle 90°±15，thickness > 50mm
