29
Notes:
1.Under On-grid mode, please ensure that the EPS loads power is lower than the inverter's maximum
Bypass power.
2.Under Off-grid mode, ensure that the EPS loads power is lower than the inverter's maximum EPS
power.
3. We suggest not connect the inductive loads on EPS port.

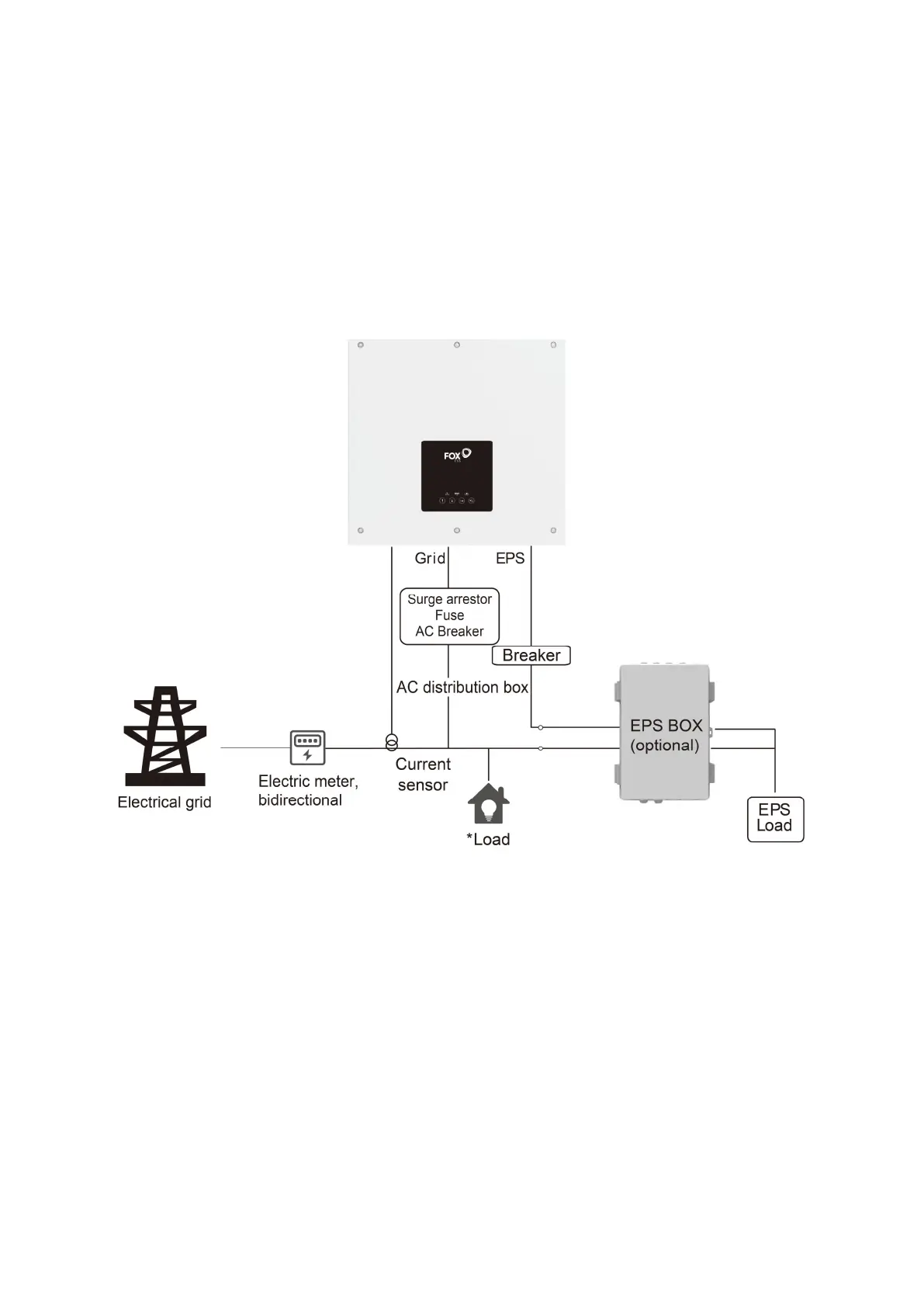

• Use External EPS Wiring:
Notes：
1.EPS Box (Optional): Used for On-Grid and EPS switching of inverters, improve maximum EPS loads
capacity, maximum bypass current is 60A.
2.When the grid power is off, ensure that the Back-up load power is lower than the inverter's maximum
output power.
B. Common loads description
Under EPS mode, if need to connect the inductive load on EPS port, please ensure that the
instantaneous power of the load at startup is lower than the maximum power of the EPS mode. Below
table shows some conventional and reasonable loads for you reference. Please refer to your loads’
manual for the actual specs.
