FoxESS T15 - DRM0;ESTOP Interface; 6.4 Inverter Start-Up

T Series User Manual www.fox-ess.com P a g e | 19
➢ DRM0/ESTOP

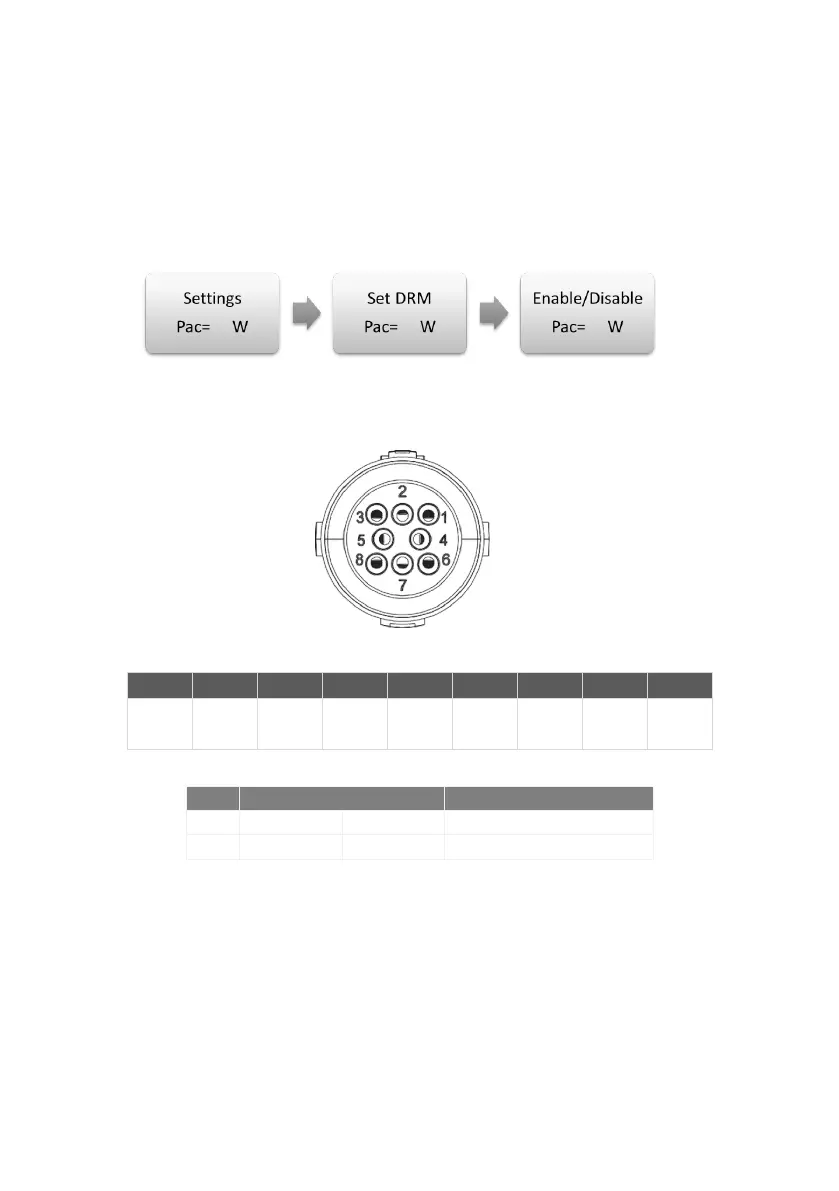

DRM0 setting
Short press the touch key to switch display or make the value+1. Long press the touch key to confirm your
setting.
The PIN definitions of RS485/DRM0/ESTOP interface are as below.
PIN
1
2
3
4
5
6
7
8
Definition
METER
485-
METER
485+
METER
485-
METER
485+
GND
DRM0
+12V
ESTOP
6.4 Inverter Start-Up
Please refer to the following steps to start-up the inverter:
a) Check if device is fixed well on the wall;
b) Make sure all DC breakers and AC breakers are disconnected;
c) Ensure AC cable is connected to the grid correctly;
d) All PV panels are connected to inverter correctly; DC connectors that are not used should be sealed by cover;
Model
Socket Asserted by shorting pins
Function
DRM0
5
6
Operate the disconnection device
ESTOP
5
8
Emergency stop the inverter
