Fracarro MOD-WL04 User Manual

9
ENGLISH
TECHNICAL FEATURES
Power supply 9 ÷ 15 Vdc
Absorption max 60 mA
Radio frequency 868,6 MHz
Radio range max 300 m
Outputs connection control panel 4
Output for tamper and faults alarm 2
Relay input for controlling sirens, reset devices and status of control panel 3
Working temperature -10 ÷ +50 °C
Dimensions (lxdxh) 90x72x29 mm
FUNCTIONS
LED indication:
N° Name Function
1 LED
ON – Power ON;
OFF – Power OFF;
2 Z1÷Z4 Status indication of zone 1÷4;
3 Snd
Status indication of sirens.
Red – Siren ON
Green – Siren OFF

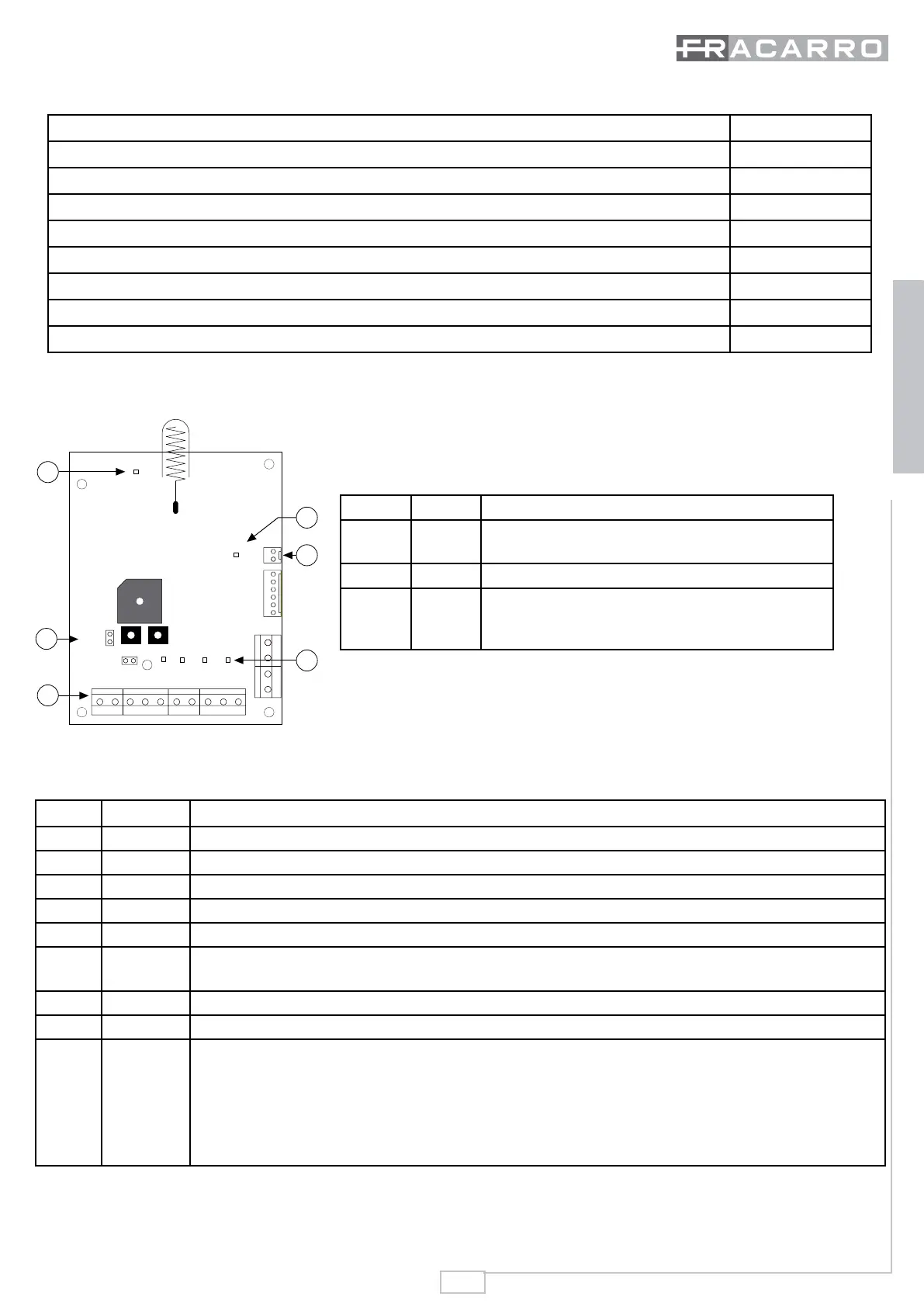

Fig.1
Input and output indication
N° Name Function
4 AC/DC Power supply 9÷15Vdc;
4 Out1 Relay output (normally open) for “low battery” indication;
4 Out2 Relay output (normally closed) for Tamper and Lost Device indication;
4 In1 Input for reset fire wireless devices (Negative reference for at least 2 seconds);
4 In2 Input for controlling wireless sirens and diallers
4 In3
Input for control panel status. To be connected only in case of using WL04TC remote con-
trol for activation/deactivation of Defender 64 wired control panel
4 Z1÷Z4 Output for direct connection of the zones to the control panel
5 TMPR Terminal for connecting an additional tamper micro switch
6 MODE
Setting of zones connection mode:
a) Jumper in – output Z1-Z4 have line termination set as double balancing mode (only for
Fracarro control panels); in this mode the Tamper alarms are detected and indicated in
the corresponding zone;
b) Jumper removed – output Z1-Z4 have line termination set as Normally Closed (mode
universal interface).
DESCRIPTION
The interface MOD-WL04 is a universal device for expanding wired security systems with WL04 series wireless devic-
es. The interface communicates via a bi-directional radio signal with maximum 32 devices including: WL04GSM (dialler),
WL04BL100 EX, WL04BL200 EX (Infrared barriers), WL04IR (infrared detector), WL04IR EX (outdoor infrared detector),
MOD-WL04
LED
LED
Sounders
BUZZER
AC/DC In1 In2 In3 Z1 Z2 GND Z3 Z4
Jumper
MODE
Z1 Z2 Z3 Z4
LEARN RESET
OUT1
COMM
OUT2
TMPR
Jumper
JP
1
4
6
2
3
5
