Fractal Torrent Compact - Page 19

18
Builder’s Guide
Main 4 pin PWM CPU fan
RPM value reported to Motherboard
Nexus 9P Slim Lüfterhub anschließen / Branchez le Hub pour ventilateurs Nexus 9P Slim / Conecte el concentrador de ventiladores Nexus 9P Slim / Anslut Nexus 9P Slim 󰘱äkthubb /
Подключить вентиляторный концентратор Nexus 9P Slim / Nexus 9P Slimファンハブを接続 / 连接Nexus 9P Slim风扇集线器 / 連接Nexus 9P Slim風扇集線器

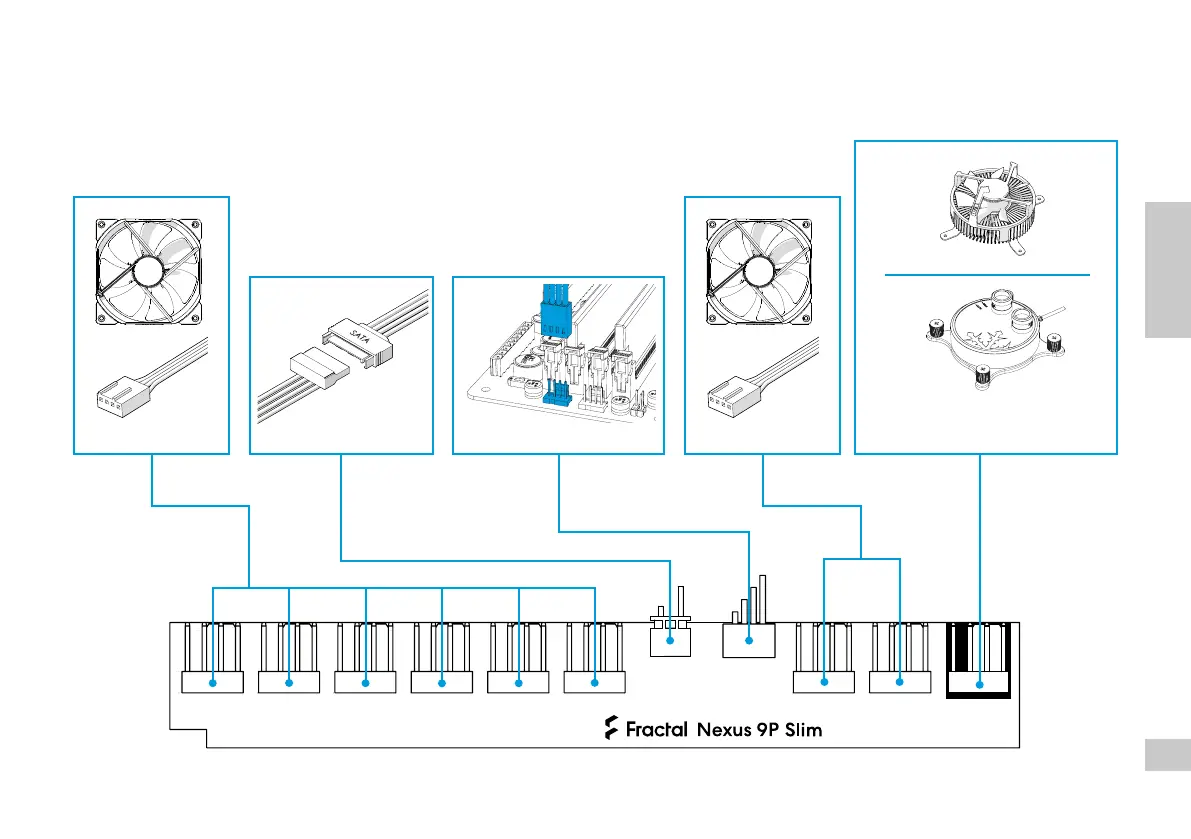

Connect Nexus 9P Slim Fan Hub
FAN1FAN2FAN3FAN4
POWER
GND / 12V
GND FG
PWM MB
FAN5FAN6FAN7FAN8FAN9
Connect to CPU_FAN
Connect to power supply
4-pin PWM fans 4-pin PWM fans
