frako RM 2112 - Connection with Voltage Transformer

RM 2106 / 2112
16

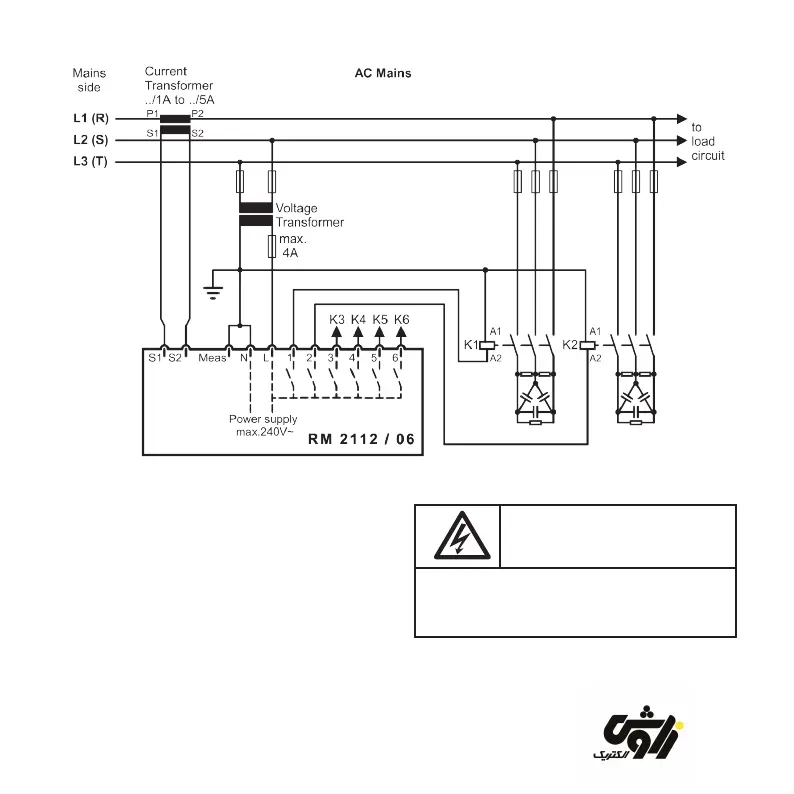

Figure 5 Connection with voltage transformer
2.9 Connection with voltage transformer
The connection diagram above shows how
the control relay is connected together with a
control transformer.
Important information:
The control voltage of the transformer may
not exceed 240 V AC.
If the voltage signal is tapped by the control
transformer between two phase conductors,
