17
5) Burner “MINIMUM” adjustment:
Work surface burner adjustment: follow the instructions below to adjust the work surface
burner minimum:
• Light the burner and set the knob to the MINIMUM position (small flame).
• Remove the knob of the valve that is press fit on the rod of that valve.
• For all burners except for the wok burner, insert a small slotted screwdriver into the hole on the
valve rod (Fig. 13) and turn the choke screw to the right or left until the burner flame is adjusted
to minimum.
• The wok burner has 2 adjustment screws on either side of the body of the valve (Fig. 14). Screw A
is for the outer ring and screw B is for the inner ring. Turn the choke screw to the right or left until
the burner flame is adjusted to minimum.
• Ensure sure that the flame does not go out when s witching quickly from the MAXIMUM to the
MINIMUM position.

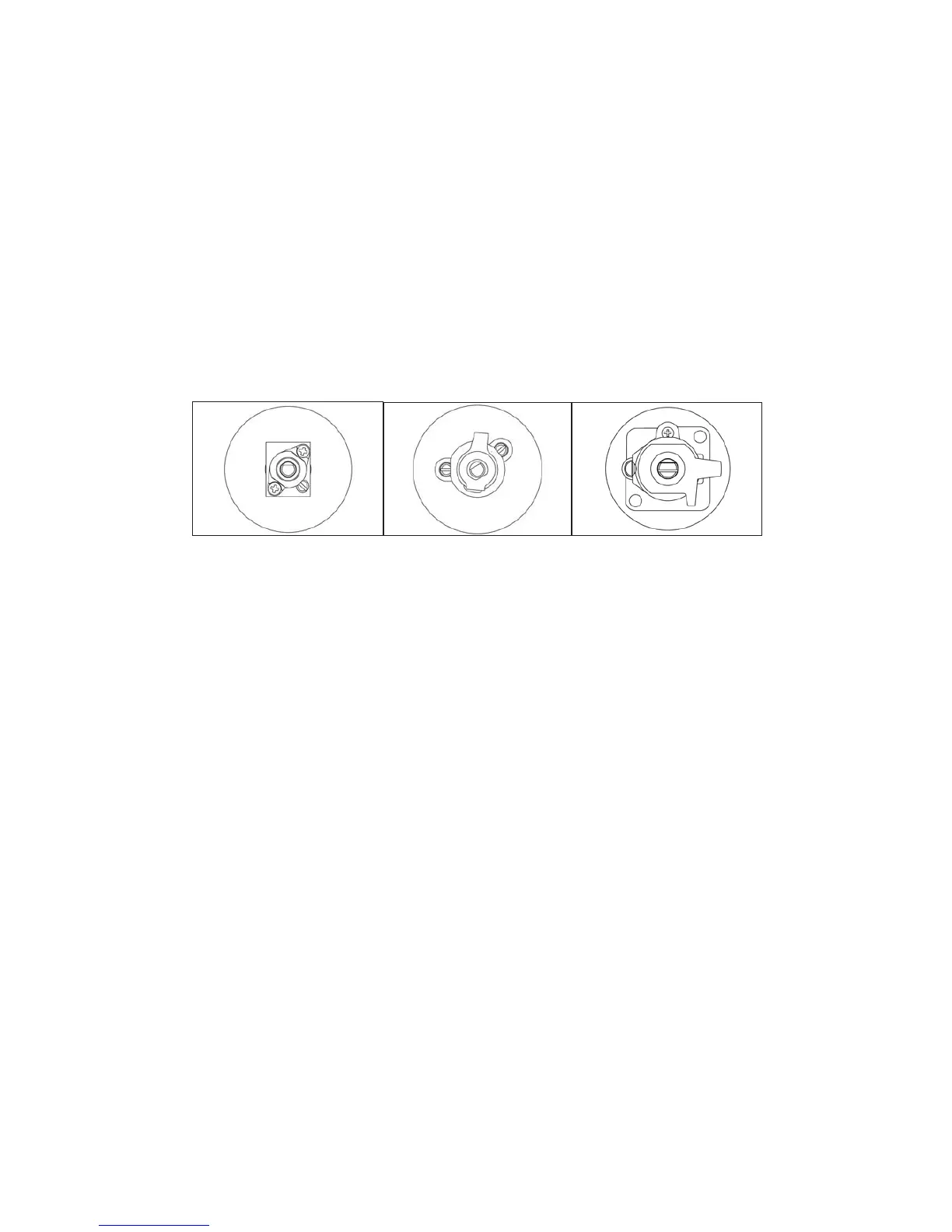

Fig. 13 Fig.14 Fig.15
